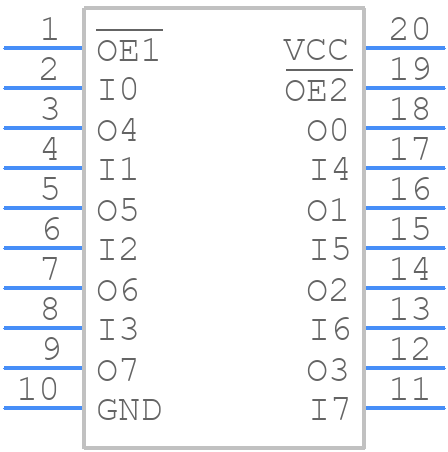

Part Symbol
-

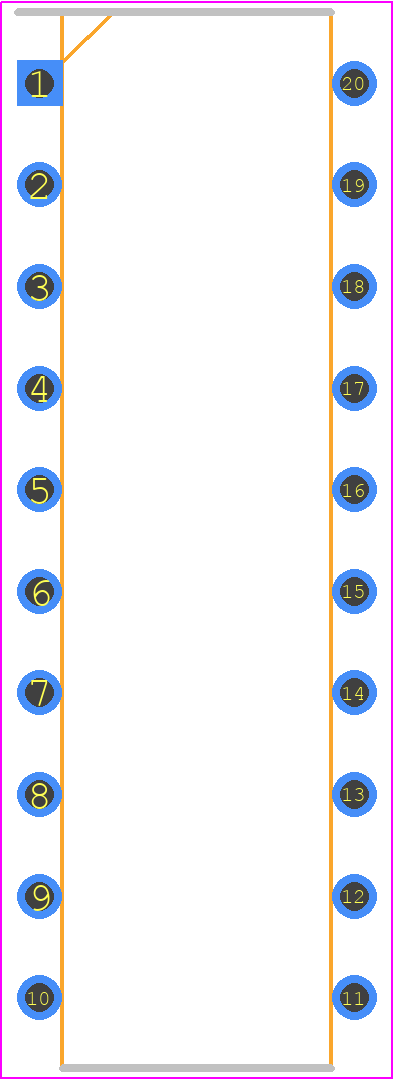

Footprint
-

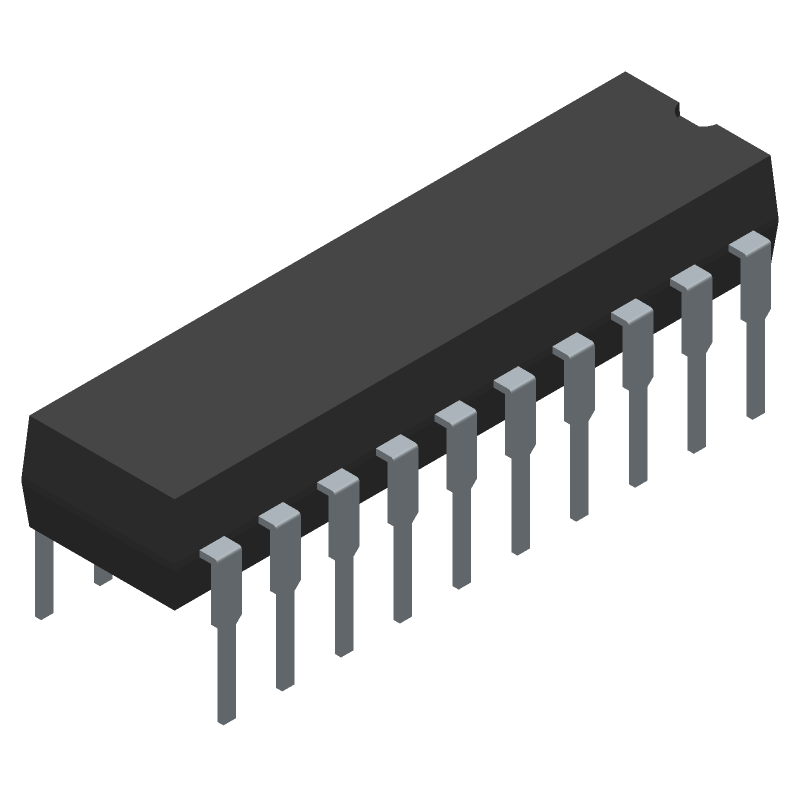

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 74F244PC by Rochester Electronics LLC
Results Overview of 74F244PC by Rochester Electronics LLC
- Distributor Offerings: (0 listings)
- Number of FFF Equivalents: (10 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
74F244PC Information
74F244PC by Rochester Electronics LLC is a Bus Driver/Transceiver.
Bus Driver/Transceivers are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Part Details for 74F244PC
74F244PC CAD Models
74F244PC Part Data Attributes
|
|
74F244PC
Rochester Electronics LLC
Buy Now
Datasheet
|
Compare Parts:
74F244PC
Rochester Electronics LLC
Bus Driver, F/FAST Series, 2-Func, 4-Bit, True Output, TTL, PDIP20, 0.300 INCH, PLASTIC DIP-20
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | ROCHESTER ELECTRONICS LLC | |
| Part Package Code | DIP | |
| Package Description | 0.300 INCH, PLASTIC DIP-20 | |
| Pin Count | 20 | |
| Reach Compliance Code | unknown | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Rochester Electronics | |
| Family | F/FAST | |
| JESD-30 Code | R-PDIP-T20 | |
| JESD-609 Code | e3 | |
| Length | 26.07 mm | |
| Logic IC Type | BUS DRIVER | |
| Number of Bits | 4 | |
| Number of Functions | 2 | |
| Number of Ports | 2 | |
| Number of Terminals | 20 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Output Characteristics | 3-STATE | |
| Output Polarity | TRUE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | DIP | |
| Package Equivalence Code | DIP20,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | IN-LINE | |
| Propagation Delay (tpd) | 6.5 ns | |
| Seated Height-Max | 5.08 mm | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 4.5 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | NO | |
| Technology | TTL | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | DUAL | |
| Width | 7.62 mm |
Alternate Parts for 74F244PC
This table gives cross-reference parts and alternative options found for 74F244PC. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 74F244PC, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MC74F244JS | Motorola Semiconductor Products | Check for Price | Bus Driver, 2-Func, 4-Bit, True Output, TTL, CDIP20, | 74F244PC vs MC74F244JS |
| MC74F244JD | Motorola Mobility LLC | Check for Price | IC,BUFFER/DRIVER,DUAL,4-BIT,F-TTL,DIP,20PIN,CERAMIC | 74F244PC vs MC74F244JD |
| 54F244/BRA | YAGEO Corporation | Check for Price | Bus Driver, F/FAST Series, 2-Func, 4-Bit, True Output, TTL, CDIP20, | 74F244PC vs 54F244/BRA |
| 74F244SDC | Fairchild Semiconductor Corporation | Check for Price | Bus Driver, F/FAST Series, 2-Func, 4-Bit, True Output, TTL, CDIP20, SLIM, CERAMIC, DIP-20 | 74F244PC vs 74F244SDC |
| 74F244PCQR | National Semiconductor Corporation | Check for Price | IC F/FAST SERIES, DUAL 4-BIT DRIVER, TRUE OUTPUT, PDIP20, PLASTIC, DIP-20, Bus Driver/Transceiver | 74F244PC vs 74F244PCQR |
| M38510/33203BRX | Motorola Semiconductor Products | Check for Price | Bus Driver, F/FAST Series, 2-Func, 4-Bit, True Output, TTL, CDIP20, CERAMIC, DIP-20 | 74F244PC vs M38510/33203BRX |
| M38510/33203BRA | Motorola Mobility LLC | Check for Price | F/FAST SERIES, DUAL 4-BIT DRIVER, TRUE OUTPUT, CDIP20, CERAMIC, DIP-20 | 74F244PC vs M38510/33203BRA |
| MC74F244ND | Motorola Mobility LLC | Check for Price | F/FAST SERIES, DUAL 4-BIT DRIVER, TRUE OUTPUT, PDIP20, 738-03 | 74F244PC vs MC74F244ND |
| SN54F244J-00 | Texas Instruments | Check for Price | F/FAST SERIES, DUAL 4-BIT DRIVER, TRUE OUTPUT, CDIP20 | 74F244PC vs SN54F244J-00 |
| 74F244SPC | Fairchild Semiconductor Corporation | Check for Price | Bus Driver, F/FAST Series, 2-Func, 4-Bit, True Output, TTL, PDIP20, SLIM, PLASTIC, DIP-20 | 74F244PC vs 74F244SPC |
74F244PC Frequently Asked Questions (FAQ)
-
The maximum operating frequency of the 74F244PC is 100 MHz, but it can vary depending on the load capacitance and the output current.
-
To ensure signal integrity, use a low-impedance output driver, minimize trace lengths, and use proper termination techniques to reduce reflections and ringing.
-
Yes, the 74F244PC can be used as a level translator between 3.3V and 5V logic, but ensure that the input voltage is within the recommended range and that the output is properly terminated.
-
The power consumption of the 74F244PC depends on the operating frequency, input voltage, and output current. Typically, it ranges from 10-50 mA, but can be higher at higher frequencies.
-
Yes, the 74F244PC is compatible with both TTL and CMOS logic, but ensure that the input voltage and output current are within the recommended ranges.
