Logic / Multiplexer/Demultiplexers / 74AUP2G157DC,125
Datasheets
74AUP2G157DC,125 by:
Nexperia

74AUP2G157 - Low-power 2-input multiplexer@en-us SSOP 8-Pin

Part Details for 74AUP2G157DC,125 by Nexperia

Results Overview of 74AUP2G157DC,125 by Nexperia

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Energy and Power Systems Renewable Energy Automotive

74AUP2G157DC,125 Information

74AUP2G157DC,125 by Nexperia is a Multiplexer/Demultiplexer.
Multiplexer/Demultiplexers are under the broader part category of Logic Components.

Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.

Price & Stock for 74AUP2G157DC,125

Part # Distributor Description Stock Price Buy
DISTI # 74AH2292
Newark Multiplexer, 2:1, -40 To 125Deg C Rohs Compliant: Yes |Nexperia 74AUP2G157DC,125 RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape 0
  • 1 $0.3800
  • 10 $0.2670
  • 25 $0.2370
  • 50 $0.2210
  • 100 $0.2050
  • 250 $0.1890
  • 500 $0.1800
  • 1,000 $0.1720
$0.1720 / $0.3800 Buy Now
DISTI # 1727-74AUP2G157DC,125CT-ND
DigiKey IC MULTIPLEXER 1 X 2:1 8-VSSOP Min Qty: 1 Lead time: 8 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 2677
In Stock
  • 1 $0.3800
  • 10 $0.2670
  • 25 $0.2372
  • 100 $0.2050
  • 250 $0.1896
  • 500 $0.1804
  • 1,000 $0.1727
  • 3,000 $0.1443
  • 6,000 $0.1401
  • 9,000 $0.1381
  • 15,000 $0.1358
  • 21,000 $0.1344
  • 30,000 $0.1331
  • 75,000 $0.1303
$0.1303 / $0.3800 Buy Now
DISTI # 74AUP2G157DC,125
Avnet Americas Multiplexer, 74AUP, 1 Channel, 2:1, 0.8 V to 3.6 V, 8 Pins, VSSOP - Tape and Reel (Alt: 74AUP2G157DC,125) RoHS: Compliant Min Qty: 6000 Package Multiple: 3000 Lead time: 8 Weeks, 0 Days Container: Reel 0
  • 6,000 $0.1095
  • 12,000 $0.1089
  • 18,000 $0.1084
  • 30,000 $0.1078
  • 60,000 $0.1072
$0.1072 / $0.1095 Buy Now
DISTI # 771-AUP2G157DC125
Mouser Electronics Encoders, Decoders, Multiplexers & Demultiplexers Low-power 2-input multiplexer RoHS: Compliant 11002
  • 1 $0.3200
  • 10 $0.2500
  • 25 $0.2220
  • 100 $0.1960
  • 250 $0.1500
  • 1,000 $0.1470
  • 3,000 $0.1340
$0.1340 / $0.3200 Buy Now
DISTI # V72:2272_06491999
Arrow Electronics Multiplexer 1-Element CMOS 2-IN 8-Pin VSSOP T/R RoHS: Compliant Min Qty: 786 Package Multiple: 1 Lead time: 8 Weeks Date Code: 2227 Container: Cut Strips Americas - 6904
  • 808 $0.1237
  • 1,000 $0.1210
  • 3,000 $0.1182
  • 6,000 $0.1154
$0.1154 / $0.1237 Buy Now
DISTI # 85959429
Verical Multiplexer 1-Element CMOS 2-IN 8-Pin VSSOP T/R RoHS: Compliant Min Qty: 2395 Package Multiple: 1 Date Code: 2201 Americas - 57000
  • 2,395 $0.1566
  • 10,000 $0.1396
  • 100,000 $0.1170
$0.1170 / $0.1566 Buy Now
Rochester Electronics 74AUP2G157DC - Multiplexer, AUP/ULP/V Series, 1-Func, 2 Line Input, 1 Line Output, Complementary Output, VSSOP-8 RoHS: Compliant Status: Active Min Qty: 1 57360
  • 100 $0.1510
  • 500 $0.1359
  • 1,000 $0.1253
  • 10,000 $0.1117
  • 100,000 $0.0936
$0.0936 / $0.1510 Buy Now
DISTI # 74AUP2G157DC,125
Avnet Silica Multiplexer 74AUP 1 Channel 21 08 V to 36 V 8 Pins VSSOP (Alt: 74AUP2G157DC,125) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 10 Weeks, 0 Days Silica - 3000
Buy Now
DISTI # 74AUP2G157DC,125
EBV Elektronik Multiplexer 74AUP 1 Channel 21 08 V to 36 V 8 Pins VSSOP (Alt: 74AUP2G157DC,125) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 10 Weeks, 0 Days EBV - 0
Buy Now

Part Details for 74AUP2G157DC,125

74AUP2G157DC,125 CAD Models

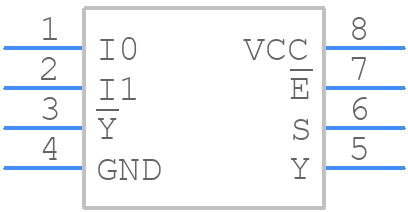

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

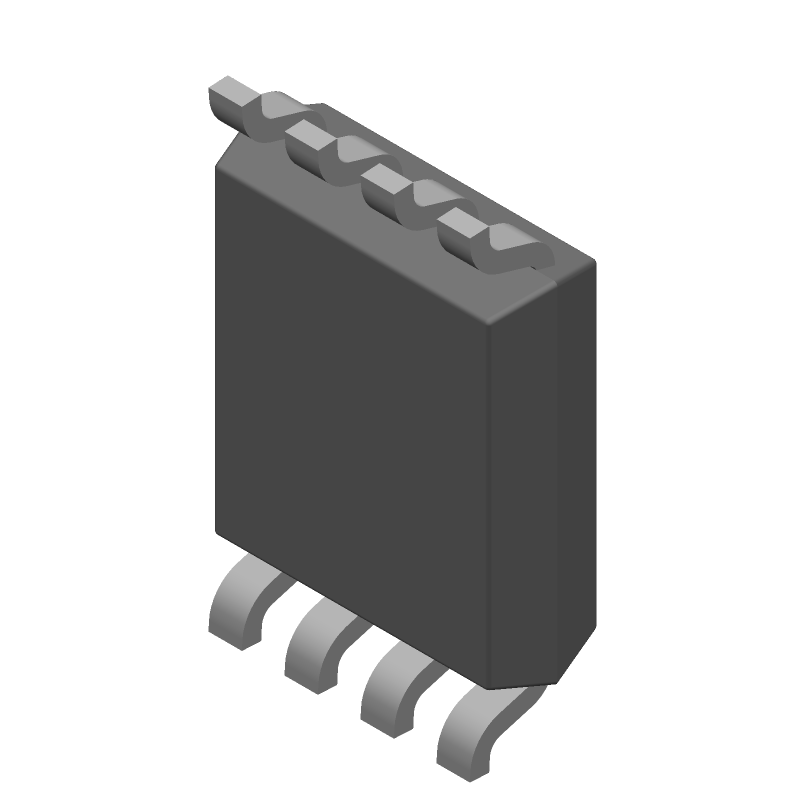

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

74AUP2G157DC,125 Part Data Attributes

Parametric Data
74AUP2G157DC,125 Nexperia
Buy Now Datasheet
Compare Parts:
74AUP2G157DC,125 Nexperia 74AUP2G157 - Low-power 2-input multiplexer@en-us SSOP 8-Pin
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer NEXPERIA
Part Package Code SSOP
Package Description VSSOP-8
Pin Count 8
Manufacturer Package Code SOT765-1
Reach Compliance Code compliant
HTS Code 8542.39.00.01
Factory Lead Time 8 Weeks
Samacsys Manufacturer Nexperia
Family AUP/ULP/V
JESD-30 Code R-PDSO-G8
JESD-609 Code e4
Length 2.3 mm
Logic IC Type MULTIPLEXER
Moisture Sensitivity Level 1
Number of Functions 1
Number of Inputs 2
Number of Outputs 1
Number of Terminals 8
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Output Polarity COMPLEMENTARY
Package Body Material PLASTIC/EPOXY
Package Code VSSOP
Package Equivalence Code TSSOP8,.12,20
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH
Packing Method TR, 7 INCH
Peak Reflow Temperature (Cel) 260
Propagation Delay (tpd) 22.8 ns
Qualification Status Not Qualified
Seated Height-Max 1 mm
Supply Voltage-Max (Vsup) 3.6 V
Supply Voltage-Min (Vsup) 0.8 V
Supply Voltage-Nom (Vsup) 1.2 V
Surface Mount YES
Technology CMOS
Temperature Grade AUTOMOTIVE
Terminal Finish NICKEL PALLADIUM GOLD
Terminal Form GULL WING
Terminal Pitch 0.5 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Width 2 mm

Alternate Parts for 74AUP2G157DC,125

This table gives cross-reference parts and alternative options found for 74AUP2G157DC,125. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 74AUP2G157DC,125, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
74AUP1G157GW,125 Nexperia $0.1063 74AUP1G157 - Low-power 2-input multiplexer@en-us 74AUP2G157DC,125 vs 74AUP1G157GW,125
74AUP1G18GW,125 Nexperia $0.1125 74AUP1G18 - Low-power 1-of-2 demultiplexer with 3-state deselected output@en-us 74AUP2G157DC,125 vs 74AUP1G18GW,125
74AUP2G157GT,115 Nexperia $0.4476 74AUP2G157 - Low-power 2-input multiplexer@en-us SON 8-Pin 74AUP2G157DC,125 vs 74AUP2G157GT,115
74AUP1G157GM,115 Nexperia Check for Price 74AUP1G157 - Low-power 2-input multiplexer@en-us SON 6-Pin 74AUP2G157DC,125 vs 74AUP1G157GM,115
74AUP1G158GM,132 Nexperia Check for Price 74AUP1G158 - Low-power 2-input multiplexer; inverting@en-us SON 6-Pin 74AUP2G157DC,125 vs 74AUP1G158GM,132
74AUP1G158GF,132 Nexperia Check for Price 74AUP1G158 - Low-power 2-input multiplexer; inverting@en-us SON 6-Pin 74AUP2G157DC,125 vs 74AUP1G158GF,132
74AUP1G157GF,132 Nexperia Check for Price 74AUP1G157 - Low-power 2-input multiplexer@en-us SON 6-Pin 74AUP2G157DC,125 vs 74AUP1G157GF,132
74AUP1G18GM,132 Nexperia Check for Price 74AUP1G18 - Low-power 1-of-2 demultiplexer with 3-state deselected output@en-us SON 6-Pin 74AUP2G157DC,125 vs 74AUP1G18GM,132
74AUP1G18GM,115 Nexperia Check for Price 74AUP1G18 - Low-power 1-of-2 demultiplexer with 3-state deselected output@en-us SON 6-Pin 74AUP2G157DC,125 vs 74AUP1G18GM,115

74AUP2G157DC,125 Frequently Asked Questions (FAQ)

  • The recommended operating voltage range for the 74AUP2G157DC,125 is 0.8 V to 3.6 V.

  • To ensure signal integrity, use a low-ESR capacitor (e.g., 0.1 μF) close to the VCC pin, and keep the PCB traces short and well-decoupled.

  • The maximum frequency of operation for the 74AUP2G157DC,125 is 100 MHz.

  • Use ESD protection devices (e.g., TVS diodes) on the input/output pins, and follow proper PCB design and handling practices to minimize ESD risks.

  • The power consumption of the 74AUP2G157DC,125 is typically around 10 μA (static) and 100 μA (dynamic) at 1.8 V and 25°C.
