74AHC(T)2G125 - Dual buffer/line driver; 3-state@en-us SSOP 8-Pin

Part Details for 74AHC2G125DC,125 by Nexperia

Results Overview of 74AHC2G125DC,125 by Nexperia

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

74AHC2G125DC,125 Information

74AHC2G125DC,125 by Nexperia is a Bus Driver/Transceiver.
Bus Driver/Transceivers are under the broader part category of Logic Components.

Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.

Price & Stock for 74AHC2G125DC,125

Part # Distributor Description Stock Price Buy
DISTI # 74AH2205
Newark Buffer/Line Driver, -40 To 125Deg C Rohs Compliant: Yes |Nexperia 74AHC2G125DC,125 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 1159
  • 1 $0.4880
  • 10 $0.3640
  • 25 $0.3340
  • 50 $0.3180
  • 100 $0.3010
  • 250 $0.2750
  • 500 $0.2710
  • 1,000 $0.2670
$0.2670 / $0.4880 Buy Now
DISTI # 1727-6769-1-ND
DigiKey IC BUFF NON-INVERT 5.5V 8-VSSOP Min Qty: 1 Lead time: 8 Weeks Container: Tape & Reel (TR), Cut Tape (CT), Digi-Reel® 2372
In Stock
  • 1 $0.4000
  • 10 $0.2760
  • 25 $0.2456
  • 100 $0.2123
  • 250 $0.1964
  • 500 $0.1869
  • 1,000 $0.1790
  • 3,000 $0.1689
  • 6,000 $0.1642
  • 9,000 $0.1618
  • 15,000 $0.1592
  • 21,000 $0.1576
  • 30,000 $0.1562
$0.1562 / $0.4000 Buy Now
DISTI # 74AHC2G125DC,125
Avnet Americas Buffer / Line Driver, Non Inverting, 74AHC2G125, 2 Element, 2 V to 5.5 V, 8 Pins, VSSOP - Tape and Reel (Alt: 74AHC2G125DC,125) RoHS: Compliant Min Qty: 6000 Package Multiple: 3000 Lead time: 8 Weeks, 0 Days Container: Reel 0
  • 6,000 $0.1264
  • 12,000 $0.1258
  • 18,000 $0.1251
  • 30,000 $0.1245
  • 60,000 $0.1238
$0.1238 / $0.1264 Buy Now
DISTI # 771-AHC2G125DC125
Mouser Electronics Buffers & Line Drivers Dual buffer/line driver, 3-state RoHS: Compliant 3585
  • 1 $0.4000
  • 10 $0.2760
  • 25 $0.2460
  • 100 $0.2130
  • 250 $0.1870
  • 1,000 $0.1790
  • 3,000 $0.1790
  • 9,000 $0.1580
  • 18,000 $0.1570
$0.1570 / $0.4000 Buy Now
DISTI # 87174972
Verical Buffer/Line Driver 2-CH Non-Inverting 3-ST CMOS 8-Pin VSSOP T/R RoHS: Compliant Min Qty: 217 Package Multiple: 1 Date Code: 1652 Americas - 1678
  • 217 $0.2030
  • 500 $0.1790
  • 1,000 $0.1710
$0.1710 / $0.2030 Buy Now
DISTI # 74AHC2G125DC,125
Avnet Asia Buffer / Line Driver, Non Inverting, 74AHC2G125, 2 Element, 2 V to 5.5 V, 8 Pins, VSSOP (Alt: 74AHC2G125DC,125) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 8 Weeks, 0 Days 3000
  • 3,000 $0.2474
  • 6,000 $0.2442
  • 9,000 $0.2410
  • 15,000 $0.2380
  • 30,000 $0.2321
  • 75,000 $0.2265
  • 150,000 $0.2212
$0.2212 / $0.2474 Buy Now
DISTI # 74AHC2G125DC,125
Avnet Silica Buffer Line Driver Non Inverting 74AHC2G125 2 Element 2 V to 55 V 8 Pins VSSOP (Alt: 74AHC2G125DC,125) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 10 Weeks, 0 Days Silica - 3000
Buy Now
DISTI # 74AHC2G125DC,125
Chip One Stop Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 5 Lead time: 0 Weeks, 1 Days Container: Cut Tape 1678
  • 5 $0.3840
  • 50 $0.2360
  • 100 $0.2040
  • 200 $0.2030
  • 500 $0.1790
  • 1,000 $0.1710
  • 3,000 $0.1580
  • 6,000 $0.1550
  • 12,000 $0.1400
  • 24,000 $0.1360
$0.1360 / $0.3840 Buy Now
DISTI # 74AHC2G125DC,125
EBV Elektronik Buffer Line Driver Non Inverting 74AHC2G125 2 Element 2 V to 55 V 8 Pins VSSOP (Alt: 74AHC2G125DC,125) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 10 Weeks, 0 Days EBV - 0
Buy Now

Part Details for 74AHC2G125DC,125

74AHC2G125DC,125 CAD Models

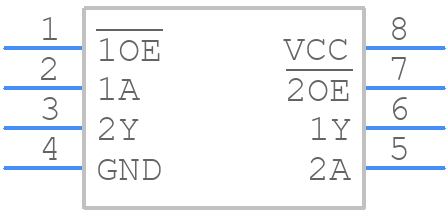

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

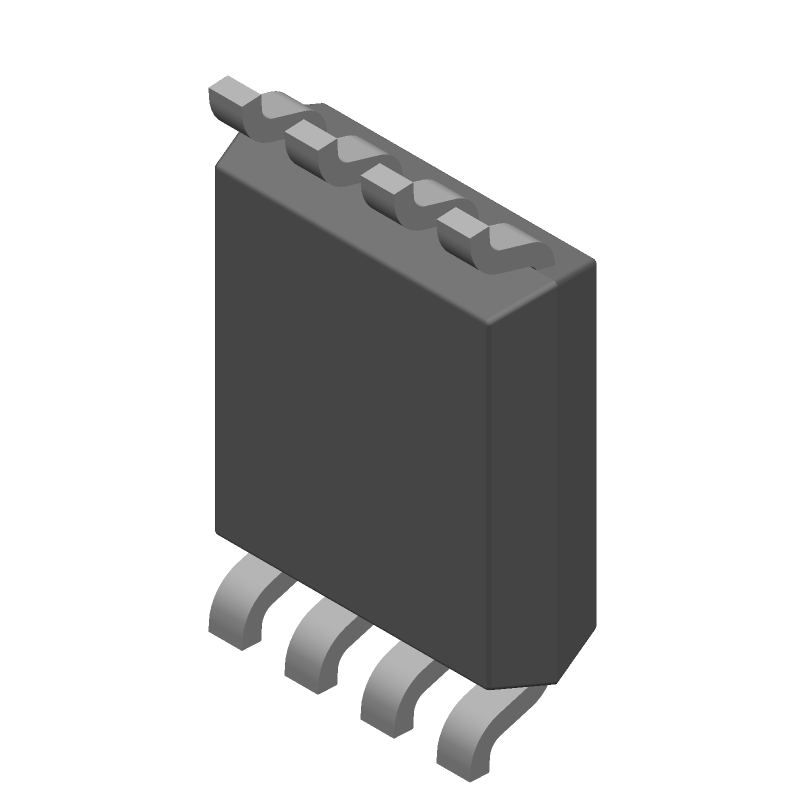

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

74AHC2G125DC,125 Part Data Attributes

Parametric Data
74AHC2G125DC,125 Nexperia
Buy Now Datasheet
Compare Parts:
74AHC2G125DC,125 Nexperia 74AHC(T)2G125 - Dual buffer/line driver; 3-state@en-us SSOP 8-Pin
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer NEXPERIA
Part Package Code SSOP
Package Description 2.30 MM WIDTH, PLASTIC, MO-187, SOT-765-1, VSSOP-8
Pin Count 8
Manufacturer Package Code SOT765-1
Reach Compliance Code compliant
HTS Code 8542.39.00.01
Factory Lead Time 8 Weeks
Samacsys Manufacturer Nexperia
Family AHC/VHC/H/U/V
JESD-30 Code R-PDSO-G8
JESD-609 Code e4
Length 2.3 mm
Logic IC Type BUS DRIVER
Moisture Sensitivity Level 1
Number of Bits 1
Number of Functions 2
Number of Ports 2
Number of Terminals 8
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Output Polarity TRUE
Package Body Material PLASTIC/EPOXY
Package Code VSSOP
Package Equivalence Code TSSOP8,.12,20
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH
Packing Method TR, 7 INCH
Peak Reflow Temperature (Cel) 260
Propagation Delay (tpd) 14.5 ns
Qualification Status Not Qualified
Seated Height-Max 1 mm
Supply Voltage-Max (Vsup) 5.5 V
Supply Voltage-Min (Vsup) 2 V
Supply Voltage-Nom (Vsup) 5 V
Surface Mount YES
Technology CMOS
Temperature Grade AUTOMOTIVE
Terminal Finish NICKEL PALLADIUM GOLD
Terminal Form GULL WING
Terminal Pitch 0.5 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Width 2 mm
