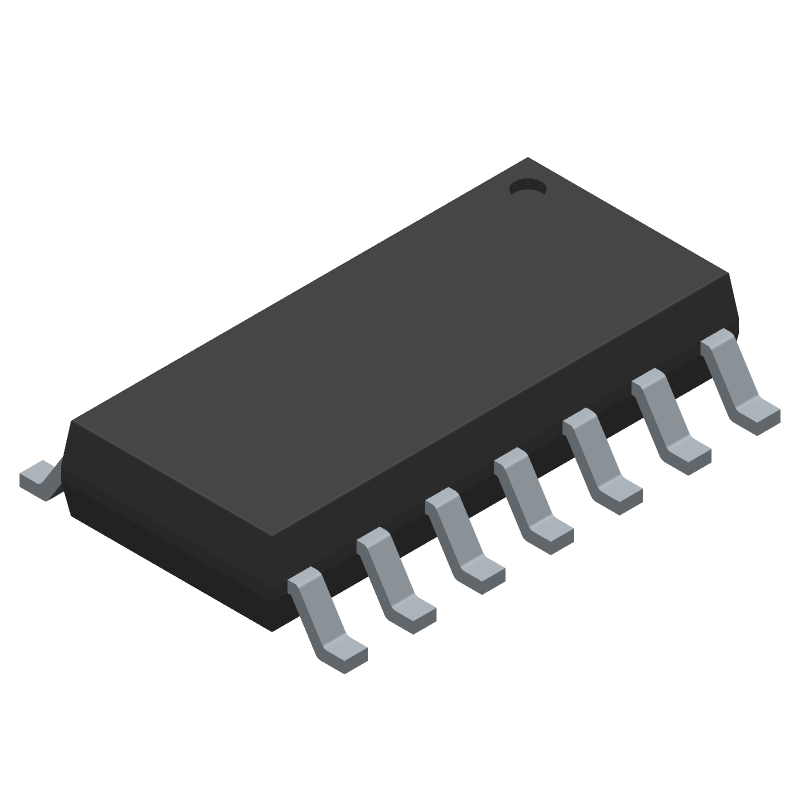

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 74ACT04SCX by onsemi
Results Overview of 74ACT04SCX by onsemi
- Distributor Offerings: (16 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Financial Technology (Fintech)
Healthcare
74ACT04SCX Information
74ACT04SCX by onsemi is a Gate.
Gates are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for 74ACT04SCX
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
56W4662
|
Newark | Logic Inverter Gate, Soic-14, Logic Function:Inverter, No. Of Elements:Hex, No. Of Inputs:1Inputs, No. Of Pins:14Pins, Ic Case/Package:Soic, Product Range:74Act04, Logic Ic Family:74Act, Supply Voltage Min:4.5V, Output Current:24Marohs Compliant: Yes |Onsemi 74ACT04SCX RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 2015 |
|
$0.1680 | Buy Now |
|
DISTI #
18C9388
|
Newark | Logic Inverter Gate, Soic-14, Full Reel, Logic Function:Inverter, No. Of Elements:Hex, No. Of Inputs:1Inputs, No. Of Pins:14Pins, Ic Case/Package:Soic, Product Range:74Act04, Logic Ic Family:74Act, Supply Voltage Min:4.5V Rohs Compliant: Yes |Onsemi 74ACT04SCX RoHS: Compliant Min Qty: 2500 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.1160 / $0.1550 | Buy Now |
|
DISTI #
74ACT04SCXCT-ND
|
DigiKey | IC INVERTER 6CH 1IN 14SOIC Min Qty: 1 Lead time: 9 Weeks Container: Tape & Reel (TR), Digi-Reel®, Cut Tape (CT) |
4897 In Stock |
|
$0.1344 / $0.3500 | Buy Now |
|
DISTI #
56W4662
|
Avnet Americas | Inverter, Hex, 1 Input, 14 Pins, SOIC, 74ACT04 - Product that comes on tape, but is not reeled (Alt: 56W4662) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 35 Weeks, 6 Days Container: Ammo Pack | 2015 Partner Stock |
|
$0.3270 / $0.6550 | Buy Now |
|
DISTI #
74ACT04SCX
|
Avnet Americas | Inverter, Hex, 1 Input, 14 Pins, SOIC, 74ACT04 - Tape and Reel (Alt: 74ACT04SCX) RoHS: Compliant Min Qty: 7500 Package Multiple: 2500 Lead time: 9 Weeks, 0 Days Container: Reel | 0 |
|
$0.1082 / $0.1182 | Buy Now |
|
DISTI #
512-74ACT04SCX
|
Mouser Electronics | Inverters Hex Inverter RoHS: Compliant | 3103 |
|
$0.1170 / $0.7400 | Buy Now |
|
DISTI #
V72:2272_06296950
|
Arrow Electronics | Inverter 6-Element CMOS 14-Pin SOIC N T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 9 Weeks Date Code: 2351 Container: Cut Strips | Americas - 11 |
|
$0.1658 / $0.2487 | Buy Now |
|
|
Onlinecomponents.com | Hex Inverter RoHS: Compliant |
5000 In Stock |
|
$0.1077 / $0.1232 | Buy Now |
|
DISTI #
84464832
|
Verical | Inverter 6-Element CMOS 14-Pin SOIC N T/R RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Date Code: 2436 | Americas - 5000 |
|
$0.1476 / $0.1602 | Buy Now |
|
|
Rochester Electronics | Inverter, ACT Series, 6-Func, 1-Input, CMOS, PDSO14 RoHS: Compliant Status: Active Min Qty: 1 | 1121 |
|
$0.0944 / $0.1523 | Buy Now |
Part Details for 74ACT04SCX
74ACT04SCX CAD Models
74ACT04SCX Part Data Attributes
|
|
74ACT04SCX
onsemi
Buy Now
Datasheet
|
Compare Parts:
74ACT04SCX
onsemi
Hex Inverter, SOIC-14, 2500-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SOIC-14 | |
| Manufacturer Package Code | 751EF | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 35 Weeks, 6 Days | |
| Samacsys Manufacturer | onsemi | |
| Family | ACT | |
| JESD-30 Code | R-PDSO-G14 | |
| Length | 8.6 mm | |
| Load Capacitance (CL) | 50 pF | |
| Logic IC Type | INVERTER | |
| Max I(ol) | 0.024 A | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 6 | |
| Number of Inputs | 1 | |
| Number of Terminals | 14 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP14,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Prop. Delay@Nom-Sup | 9 ns | |
| Propagation Delay (tpd) | 9 ns | |
| Qualification Status | Not Qualified | |
| Schmitt Trigger | NO | |
| Seated Height-Max | 1.75 mm | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 4.5 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 mm |
Alternate Parts for 74ACT04SCX
This table gives cross-reference parts and alternative options found for 74ACT04SCX. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 74ACT04SCX, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MC74ACT04D | onsemi | Check for Price | ACT SERIES, HEX 1-INPUT INVERT GATE, PDSO14, SOIC-14 | 74ACT04SCX vs MC74ACT04D |
74ACT04SCX Frequently Asked Questions (FAQ)
-
The maximum operating frequency of the 74ACT04SCX is typically 100 MHz, but it can vary depending on the specific application and operating conditions.
-
To ensure signal integrity, use proper PCB design techniques such as impedance matching, signal routing, and decoupling capacitors. Additionally, consider using series termination resistors and/or parallel termination resistors to reduce signal reflections.
-
The recommended power-on sequence for the 74ACT04SCX is to apply power to the VCC pin first, followed by the input signals. This helps prevent latch-up and ensures proper device operation.
-
Yes, the 74ACT04SCX is compatible with 3.3V systems. However, ensure that the input signals are within the recommended voltage range (Vih = 2.0V, Vil = 0.8V) to maintain proper device operation.
-
To handle ESD protection, use ESD protection devices such as TVS diodes or ESD protection arrays on the input lines. Additionally, follow proper handling and storage procedures to prevent ESD damage.
