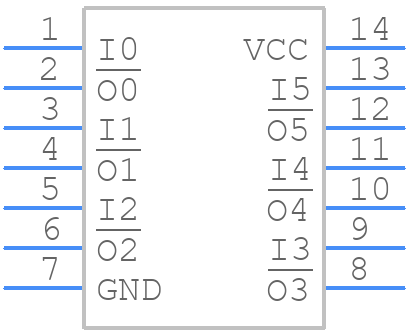

Part Symbol
-

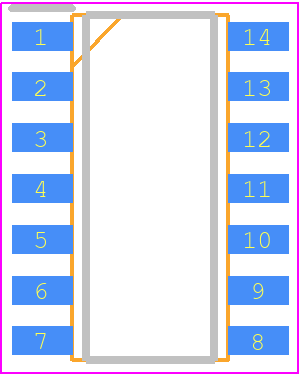

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 74AC14SCX by onsemi
Results Overview of 74AC14SCX by onsemi
- Distributor Offerings: (18 listings)
- Number of FFF Equivalents: (3 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Robotics and Drones
74AC14SCX Information
74AC14SCX by onsemi is a Gate.
Gates are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for 74AC14SCX
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
31Y6382
|
Newark | Hex Inverter, Schmitt, 1 I/P, Nsoic-14, Logic Family/Base Number:74Ac14, Logic Type:Inverter Schmitt Trigger, Output Current:24Ma, No. Of Inputs:6, Supply Voltage Min:2V, Supply Voltage Max:6V, Logic Case Style:Soic, No. Of Rohs Compliant: Yes |Onsemi 74AC14SCX RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 4856 |
|
$0.1950 / $0.6900 | Buy Now |
|
DISTI #
29X6896
|
Newark | Logic Function:Inverter, No. Of Elements:Hex, No. Of Inputs:1Inputs, No. Of Pins:14Pins, Ic Case/Package:Soic, Product Range:74Ac14, Logic Ic Family:74Ac, Supply Voltage Min:2V, Supply Voltage Max:6V, Output Current:24Ma Rohs Compliant: Yes |Onsemi 74AC14SCX RoHS: Compliant Min Qty: 2500 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.1270 / $0.1690 | Buy Now |
|
DISTI #
74AC14SCXCT-ND
|
DigiKey | IC INVERT SCHMITT 6CH 6IN 14SOIC Min Qty: 1 Lead time: 9 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
3078 In Stock |
|
$0.2081 / $0.5100 | Buy Now |
|
DISTI #
74AC14SCX
|
Avnet Americas | Logic IC, Inverter, Hex, 1 Inputs, 14 Pins, SOIC, 74AC14 - Tape and Reel (Alt: 74AC14SCX) RoHS: Compliant Min Qty: 7500 Package Multiple: 2500 Lead time: 9 Weeks, 0 Days Container: Reel | 0 |
|
$0.1193 / $0.1305 | Buy Now |
|
DISTI #
512-74AC14SCX
|
Mouser Electronics | Inverters Hex Inverter RoHS: Compliant | 7305 |
|
$0.1670 / $0.4800 | Buy Now |
|
DISTI #
V36:1790_06298393
|
Arrow Electronics | Inverter Schmitt Trigger 6-Element CMOS 14-Pin SOIC N T/R RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 9 Weeks Date Code: 2439 | Americas - 5000 |
|
$0.1314 / $0.1916 | Buy Now |
|
DISTI #
V72:2272_06298393
|
Arrow Electronics | Inverter Schmitt Trigger 6-Element CMOS 14-Pin SOIC N T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 9 Weeks Date Code: 2406 Container: Cut Strips | Americas - 153 |
|
$0.1935 / $0.2769 | Buy Now |
|
|
Onlinecomponents.com | Hex Inverter with Schmitt Trigger Input RoHS: Compliant |
5000 In Stock |
|
$0.2130 / $0.2206 | Buy Now |
|
DISTI #
85956845
|
Verical | Inverter Schmitt Trigger 6-Element CMOS 14-Pin SOIC N T/R RoHS: Compliant Min Qty: 2174 Package Multiple: 1 Date Code: 2101 | Americas - 8970 |
|
$0.1289 / $0.1725 | Buy Now |
|
DISTI #
83594733
|
Verical | Inverter Schmitt Trigger 6-Element CMOS 14-Pin SOIC N T/R RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Date Code: 2423 | Americas - 5000 |
|
$0.2811 / $0.2868 | Buy Now |
Part Details for 74AC14SCX
74AC14SCX CAD Models
74AC14SCX Part Data Attributes
|
|
74AC14SCX
onsemi
Buy Now
Datasheet
|
Compare Parts:
74AC14SCX
onsemi
Hex Inverter with Schmitt Trigger Input, SOIC-14, 2500-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SOIC-14 | |
| Package Description | SOIC-14 | |
| Manufacturer Package Code | 751EF | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 9 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Family | AC | |
| JESD-30 Code | R-PDSO-G14 | |
| Length | 8.625 mm | |
| Load Capacitance (CL) | 50 pF | |
| Logic IC Type | INVERTER | |
| Max I(ol) | 0.012 A | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 6 | |
| Number of Inputs | 1 | |
| Number of Terminals | 14 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP14,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Prop. Delay@Nom-Sup | 15 ns | |
| Propagation Delay (tpd) | 15 ns | |
| Qualification Status | Not Qualified | |
| Schmitt Trigger | YES | |
| Seated Height-Max | 1.75 mm | |
| Supply Voltage-Max (Vsup) | 6 V | |
| Supply Voltage-Min (Vsup) | 2 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 mm |
Alternate Parts for 74AC14SCX
This table gives cross-reference parts and alternative options found for 74AC14SCX. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 74AC14SCX, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| U74AC14L-S14-R | Unisonic Technologies Co Ltd | Check for Price | Inverter, AC Series, 6-Func, 1-Input, CMOS, PDSO14, LEAD FREE, SOP-14 | 74AC14SCX vs U74AC14L-S14-R |
| 74AC14SC | Rochester Electronics LLC | Check for Price | Inverter, AC Series, 6-Func, 1-Input, CMOS, PDSO14, 0.150 INCH, MS-012AB, SOIC-14 | 74AC14SCX vs 74AC14SC |
| 74AC14SCTR | Fairchild Semiconductor Corporation | Check for Price | Inverter, AC Series, 6-Func, 1-Input, CMOS, PDSO14, 0.150 INCH, MS-012AB, SOIC-14 | 74AC14SCX vs 74AC14SCTR |
74AC14SCX Frequently Asked Questions (FAQ)
-
The recommended operating voltage range for the 74AC14SCX is 2.0V to 5.5V.
-
To ensure proper power supply, connect VCC to a stable voltage source and GND to a reliable ground. Decouple the power supply with a 0.1uF capacitor to reduce noise.
-
The 74AC14SCX can sink or source up to 24mA of current per output.
-
Unused inputs should be tied to VCC or GND through a 1kΩ resistor to prevent floating inputs and reduce power consumption.
-
The propagation delay of the 74AC14SCX is typically around 3.5ns, but can vary depending on the operating voltage and temperature.
