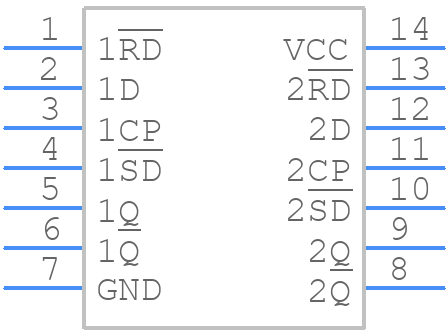

Part Symbol
-
Footprint
-

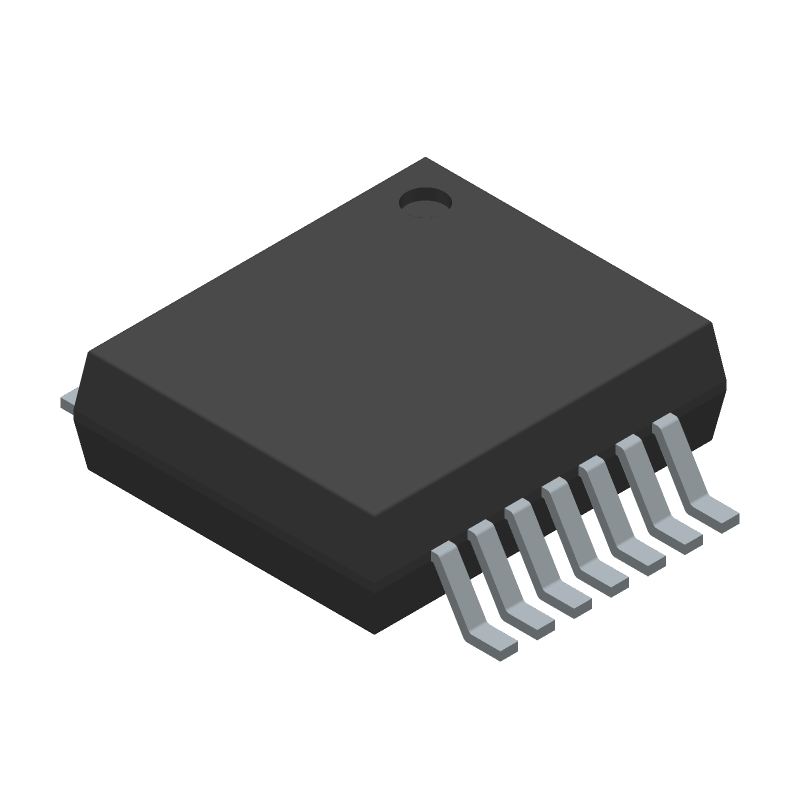

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 74LVC74ADB,112 by Nexperia
Results Overview of 74LVC74ADB,112 by Nexperia
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (2 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (6 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Agriculture Technology
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Entertainment and Gaming
74LVC74ADB,112 Information
74LVC74ADB,112 by Nexperia is an FF/Latch.
FF/Latches are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for 74LVC74ADB,112
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2156-74LVC74ADB112-ND
|
DigiKey | IC FF D-TYPE DOUBLE 1BIT 14SSOP Min Qty: 1134 Lead time: 1 Weeks Container: Tube MARKETPLACE PRODUCT |
6864 In Stock |
|
$0.2600 | Buy Now |
|
DISTI #
2156-74LVC74ADB,112-954-ND
|
DigiKey | IC FF D-TYPE DOUBLE 1BIT 14SSOP Min Qty: 1134 Lead time: 1 Weeks Container: Bulk MARKETPLACE PRODUCT |
2414 In Stock |
|
$0.2600 | Buy Now |
|
DISTI #
85960828
|
Verical | Flip Flop D-Type Pos-Edge 2-Element 14-Pin SSOP Bulk RoHS: Compliant Min Qty: 1421 Package Multiple: 1 Date Code: 1801 | Americas - 6864 |
|
$0.1973 / $0.2640 | Buy Now |
|
|
Rochester Electronics | D Flip-Flop, LVC/LCX/Z Series, 2-Func, Positive Edge Triggered, 1-Bit, Complementary Output, CMOS, SSOP14 RoHS: Compliant Status: Obsolete Min Qty: 1 | 6864 |
|
$0.1578 / $0.2545 | Buy Now |
|
DISTI #
74LVC74ADB.112
|
TME | IC: digital, D flip-flop,resettable, Ch: 2, CMOS,TTL, SMD, SSOP14 Min Qty: 3 | 388 |
|
$0.1340 / $0.1900 | Buy Now |
|
DISTI #
74LVC74ADB,112
|
Avnet Silica | Flip Flop 74LVC74 D 65 ns 250 MHz 24 mA 14 Pins SSOP (Alt: 74LVC74ADB,112) RoHS: Compliant Min Qty: 78 Package Multiple: 78 | Silica - 0 |
|
Buy Now | |
|
DISTI #
74LVC74ADB,112
|
EBV Elektronik | Flip Flop 74LVC74 D 65 ns 250 MHz 24 mA 14 Pins SSOP (Alt: 74LVC74ADB,112) RoHS: Compliant Min Qty: 78 Package Multiple: 78 | EBV - 0 |
|
Buy Now |
Part Details for 74LVC74ADB,112
74LVC74ADB,112 CAD Models
74LVC74ADB,112 Part Data Attributes
|
|
74LVC74ADB,112
Nexperia
Buy Now
Datasheet
|
Compare Parts:
74LVC74ADB,112
Nexperia
74LVC74A - Dual D-type flip-flop with set and reset; positive-edgen trigger@en-us SSOP1 14-Pin
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | NEXPERIA | |
| Part Package Code | SSOP1 | |
| Package Description | SSOP-14 | |
| Pin Count | 14 | |
| Manufacturer Package Code | SOT337-1 | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 4 Weeks | |
| Date Of Intro | 2017-02-01 | |
| Samacsys Manufacturer | Nexperia | |
| Family | LVC/LCX/Z | |
| JESD-30 Code | R-PDSO-G14 | |
| JESD-609 Code | e4 | |
| Length | 6.2 mm | |
| Logic IC Type | D FLIP-FLOP | |
| Moisture Sensitivity Level | 1 | |
| Number of Bits | 1 | |
| Number of Functions | 2 | |
| Number of Terminals | 14 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Polarity | COMPLEMENTARY | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SSOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Propagation Delay (tpd) | 11.9 ns | |
| Seated Height-Max | 2 mm | |
| Supply Voltage-Max (Vsup) | 3.6 V | |
| Supply Voltage-Min (Vsup) | 1.2 V | |
| Supply Voltage-Nom (Vsup) | 1.8 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | NICKEL PALLADIUM GOLD | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Trigger Type | POSITIVE EDGE | |
| Width | 5.3 mm |
Alternate Parts for 74LVC74ADB,112
This table gives cross-reference parts and alternative options found for 74LVC74ADB,112. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 74LVC74ADB,112, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 74LVC74ADB-T | Philips Semiconductors | Check for Price | D Flip-Flop, 2-Func, Positive Edge Triggered, CMOS, PDSO14 | 74LVC74ADB,112 vs 74LVC74ADB-T |
| 74LVC74ADB-T | NXP Semiconductors | Check for Price | IC LVC/LCX/Z SERIES, DUAL POSITIVE EDGE TRIGGERED D FLIP-FLOP, COMPLEMENTARY OUTPUT, PDSO14, 5.30 MM, PLASTIC, MO-150, SOT337-1, SSOP-14, FF/Latch | 74LVC74ADB,112 vs 74LVC74ADB-T |
