745967-4 Information

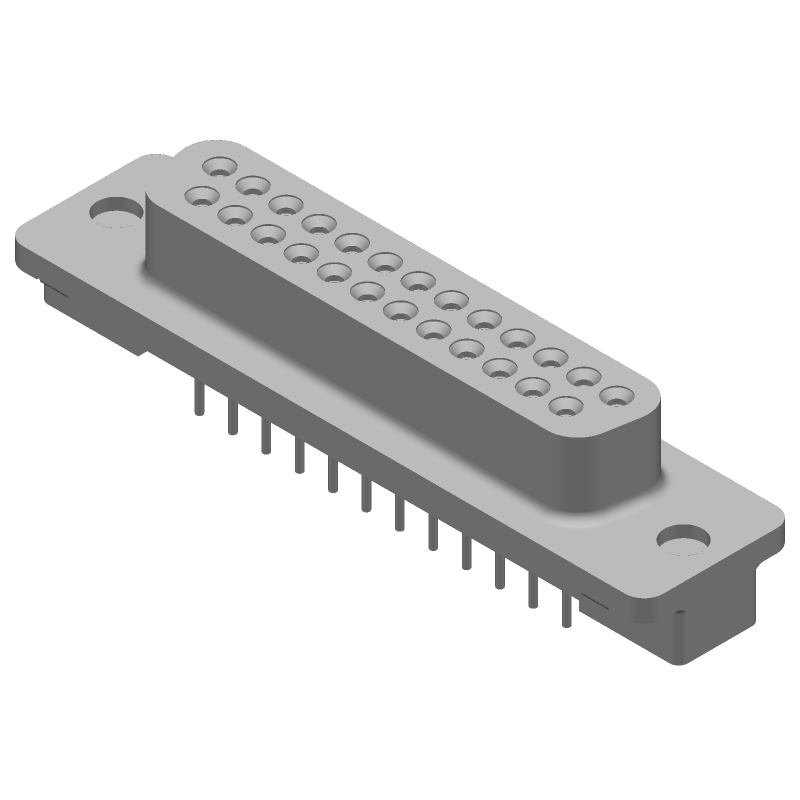

745967-4 by TE Connectivity is a D Type Connector.
D Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for 745967-4
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
34B1573
|
Newark | 25 Rcpt Sp/Fms Std Rohs Compliant: No |Amp Te Connectivity 745967-4 RoHS: Not Compliant Min Qty: 630 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$10.1000 | Buy Now |
|
DISTI #
745967-4-ND
|
DigiKey | CONN D-SUB RCPT 25POS VERT SLDR Min Qty: 630 Lead time: 13 Weeks Container: Tube | Temporarily Out of Stock |
|
$8.3607 | Buy Now |
|
DISTI #
745967-4
|
Avnet Americas | - Rail/Tube (Alt: 745967-4) RoHS: Not Compliant Min Qty: 630 Package Multiple: 630 Lead time: 13 Weeks, 0 Days Container: Tube | 0 |
|
$6.0000 / $8.1242 | Buy Now |
|
DISTI #
571-7459674
|
Mouser Electronics | D-Sub Standard Connectors VERTICAL RECPT 25P RoHS: Not Compliant | 0 |
|
$8.3600 | Order Now |
|
DISTI #
71352865
|
RS | SOLIS SP SPD22-16COM22-18MIL942 Min Qty: 630 Package Multiple: 1 Container: Bulk | 0 |
|
$10.8200 / $11.7600 | RFQ |
|
DISTI #
AMP745967-4
|
Heilind Electronics | 25 RCPT SP/FMS STD | Americas - 0 in Stock |
|
$9.8362 / $9.9830 | Buy Now |
|
|
Onlinecomponents.com | 25 RCPT SP/FMS STD |
1 In Stock |
|
$8.2900 / $26.0920 | Buy Now |
|
|
Bristol Electronics | 197 |
|
RFQ | ||
|
|
Quest Components | CONNECTOR,D-SHELL,PCB MNT,PLUG,25 CONTACTS,SKT,0.109 PITCH,PC TAIL TERMINAL,HOLE .112-.124 | 157 |
|
$4.7730 / $7.7400 | Buy Now |
|
|
Quest Components | CONNECTOR,D-SHELL,PCB MNT,PLUG,25 CONTACTS,SKT,0.109 PITCH,PC TAIL TERMINAL,HOLE .112-.124 | 111 |
|
$12.7444 / $16.3856 | Buy Now |
Part Details for 745967-4
745967-4 CAD Models
745967-4 Part Data Attributes
|
|
745967-4
TE Connectivity
Buy Now
Datasheet
|
Compare Parts:
745967-4
TE Connectivity
25 RCPT SP/FMS STD
|
| Pbfree Code | No | |
| Rohs Code | No | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TE CONNECTIVITY LTD | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.69.40.30 | |
| Factory Lead Time | 13 Weeks | |
| Samacsys Manufacturer | TE Connectivity | |
| Additional Feature | AMPLIMITE | |
| Body Breadth | 0.494 inch | |
| Body Depth | 0.236 inch | |
| Body Length | 2.09 inch | |
| Body/Shell Style | RECEPTACLE | |
| Connector Type | D SUBMINIATURE CONNECTOR | |
| Contact Design | PREASSEM CONN | |
| Contact Finish Mating | NOT APPLICABLE | |
| Contact Gender | FEMALE | |
| Contact Material | NOT APPLICABLE | |
| Contact Pattern | STAGGERED | |
| Contact Resistance | 20 mΩ | |
| Contact Style | RND PIN-SKT | |
| DIN Conformance | NO | |
| EMI Shielded | NO | |
| Empty Shell | YES | |
| Filter Feature | NO | |
| IEC Conformance | NO | |
| Insertion Force-Max | .4448 N | |
| Insulation Resistance | 1000000000 Ω | |
| Insulator Color | BLACK | |
| Insulator Material | POLYESTER | |
| MIL Conformance | NO | |
| Mains Connector Rating | 6A | |
| Mating Contact Pitch | 0.108 inch | |
| Mating Contact Row Spacing | 0.112 inch | |
| Mating Information | MULTIPLE MATING PARTS AVAILABLE | |
| Mixed Contacts | NO | |
| Mounting Option 1 | HOLE .12 | |
| Mounting Option 2 | LOCKING | |
| Mounting Style | STRAIGHT | |
| Mounting Type | BOARD | |
| Number Of Connectors | ONE | |
| Number Of PCB Rows | 2 | |
| Number of Ports | 1 | |
| Number of Rows Loaded | 2 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -55 °C | |
| Option | GENERAL PURPOSE | |
| PCB Contact Pattern | STAGGERED | |
| PCB Contact Row Spacing | 2.84 mm | |
| Panel Mount | NO | |
| Plating Thickness | 30u inch | |
| Rated Current (Signal) | 6 A | |
| Reference Standard | UL | |
| Shell Finish | TIN | |
| Shell Material | CARBON STEEL | |
| Shell Size | 3/B | |
| Terminal Length | 0.17 inch | |
| Terminal Pitch | 2.77 mm | |
| Termination Type | SOLDER | |
| Total Number of Contacts | 25 | |
| UL Flammability Code | 94V-0 | |
| Withdrawl Force-Min | .4726 N |
