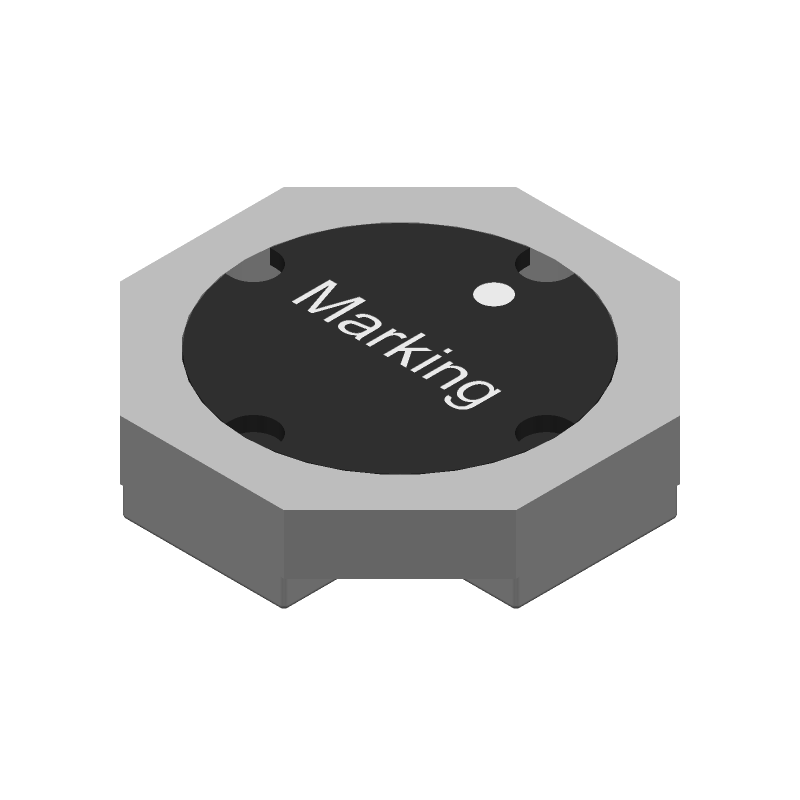

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 74489430010 by Wurth Elektronik
Results Overview of 74489430010 by Wurth Elektronik
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
74489430010 Information
74489430010 by Wurth Elektronik is a Fixed Inductor.
Fixed Inductors are under the broader part category of Inductors.
Inductors are passive components that resist sudden changes in current by storing and releasing energy in an electromagnetic fiel. They are often used in power circuits and energy storage. Read more about Inductors on our Inductors part category page.
Price & Stock for 74489430010
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
732-2588-1-ND
|
DigiKey | INDUCT ARRAY 2 COIL 1UH SMD Min Qty: 1 Lead time: 13 Weeks Container: Tape & Reel (TR), Digi-Reel®, Cut Tape (CT) |
537 In Stock |
|
$1.2456 / $1.7100 | Buy Now |
|
DISTI #
710-74489430010
|
Mouser Electronics | Coupled Inductors WE-TDC SMD Size 8018 1.0uH .0222Ohm Strt RoHS: Compliant | 0 |
|
$1.3800 / $1.7900 | Order Now |
|
|
Bristol Electronics | Min Qty: 2 | 283 |
|
$0.9856 / $2.6283 | Buy Now |
|
|
Quest Components | 226 |
|
$1.2265 / $3.5044 | Buy Now | |
|
|
Quest Components | 226 |
|
$2.0424 / $3.3120 | Buy Now |
Part Details for 74489430010
74489430010 CAD Models
74489430010 Part Data Attributes
|
|
74489430010
Wurth Elektronik
Buy Now
Datasheet
|
Compare Parts:
74489430010
Wurth Elektronik
General Purpose Inductor, 1uH, 30%, 1 Element, Ferrite-Core, SMD, 8018, CHIP, 8018, ROHS AND REACH COMPLIANT
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | WUERTH ELEKTRONIK GMBH & CO KG | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8504.50.80.00 | |
| Samacsys Manufacturer | Würth Elektronik | |
| Case/Size Code | 3131 | |
| Construction | Rectangular | |
| Core Material | NICKEL-ZINC | |
| DC Resistance | 0.0222 Ω | |
| Inductance-Nom (L) | 1 µH | |
| Inductor Application | RF INDUCTOR | |
| Inductor Type | GENERAL PURPOSE INDUCTOR | |
| JESD-609 Code | e3 | |
| Number of Functions | 2 | |
| Number of Terminals | 4 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Height | 1.8 mm | |
| Package Length | 8 mm | |
| Package Style | SMT | |
| Package Width | 8 mm | |
| Packing Method | TR, Embossed Plastic, 7 Inch | |
| Rated Current-Max | 2.85 A | |
| Self Resonance Frequency | 136 MHz | |
| Shape/Size Description | RECTANGULAR PACKAGE | |
| Shielded | YES | |
| Surface Mount | YES | |
| Terminal Finish | Tin (Sn) - with Nickel (Ni) barrier | |
| Terminal Placement | QUAD | |
| Terminal Shape | ONE SURFACE | |
| Test Frequency | 0.1 MHz | |
| Tolerance | 30% |
