7447720180 Information

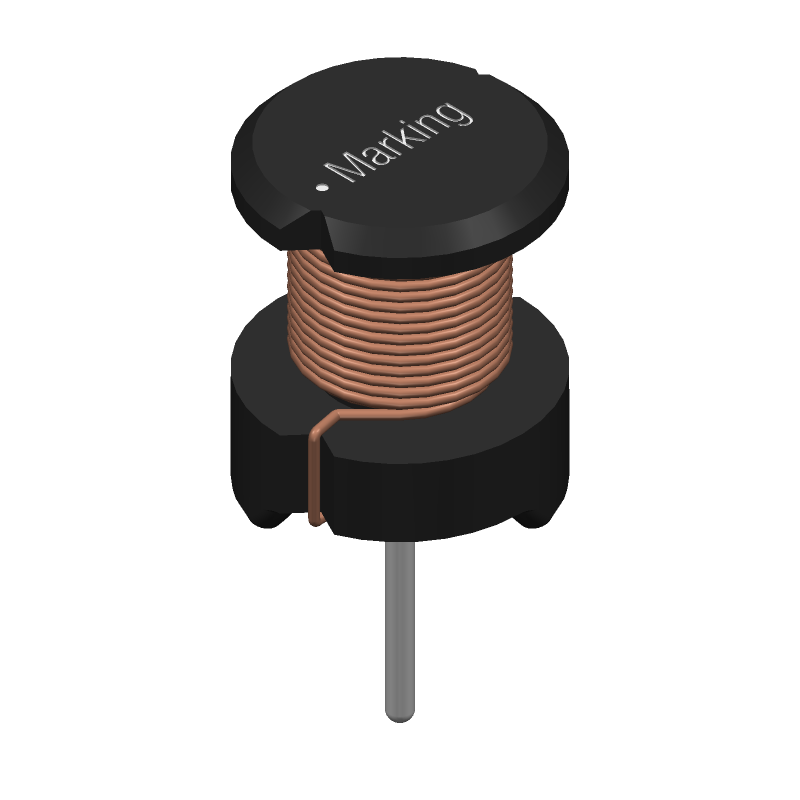

7447720180 by Wurth Elektronik is a Fixed Inductor.
Fixed Inductors are under the broader part category of Inductors.
Inductors are passive components that resist sudden changes in current by storing and releasing energy in an electromagnetic fiel. They are often used in power circuits and energy storage. Read more about Inductors on our Inductors part category page.
Price & Stock for 7447720180
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
44W4738
|
Newark | Inductor, 18Uh, 3.5A, Radial Leaded, Product Range:We-Ti Series, Inductance:18Μh, Inductor Construction:Unshielded, Rms Current (Irms):3.1A, Saturation Current (Isat):3.5A, Dc Resistance Max:0.047Ohm, Inductance Tolerance:± 10% Rohs Compliant: Yes |Wurth Elektronik 7447720180 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 38 |
|
$0.7350 / $1.0200 | Buy Now |
|
DISTI #
732-4189-ND
|
DigiKey | FIXED IND 18UH 3.1A 47 MOHM TH Min Qty: 1 Lead time: 17 Weeks Container: Tray |
1 In Stock |
|
$0.6615 / $0.9200 | Buy Now |
|
DISTI #
710-7447720180
|
Mouser Electronics | Power Inductors - Leaded WE-TI RadXtnd Ld8095 WW18uH 3.1A .047Ohm RoHS: Compliant | 15 |
|
$0.7350 / $1.0200 | Buy Now |
|
DISTI #
87187687
|
Verical | Power Choke Unshielded Wirewound 18uH 10% 100KHz Ferrite 3.1A 0.053Ohm DCR RDL Tray Min Qty: 54 Package Multiple: 1 Date Code: 2310 | Americas - 140 |
|
$0.5740 / $0.8830 | Buy Now |
Part Details for 7447720180

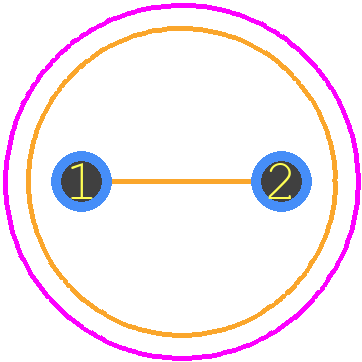

7447720180 CAD Models
7447720180 Part Data Attributes
|
|
7447720180
Wurth Elektronik
Buy Now
Datasheet
|
Compare Parts:
7447720180
Wurth Elektronik
General Purpose Inductor,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | WUERTH ELEKTRONIK GMBH & CO KG | |
| Package Description | RADIAL LEADED | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8504.50.80.00 | |
| Samacsys Manufacturer | Würth Elektronik | |
| Construction | Cylindrical | |
| Core Material | Wirewound | |
| DC Resistance | 0.053 Ω | |
| Inductance-Nom (L) | 18 µH | |
| Inductor Application | POWER INDUCTOR | |
| Inductor Type | GENERAL PURPOSE INDUCTOR | |
| Lead Diameter | 0.7 mm | |
| Lead Length | 5 mm | |
| Lead Spacing | 5 mm | |
| Number of Functions | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Diameter | 7.8 mm | |
| Package Length | 9.5 mm | |
| Package Style | Radial | |
| Rated Current-Max | 3.1 A | |
| Self Resonance Frequency | 15 MHz | |
| Shape/Size Description | CYLINDRICAL PACKAGE | |
| Shielded | NO | |
| Surface Mount | NO | |
| Terminal Placement | RADIAL | |
| Terminal Shape | WIRE | |
| Test Frequency | 0.1 MHz | |
| Tolerance | 10% |
