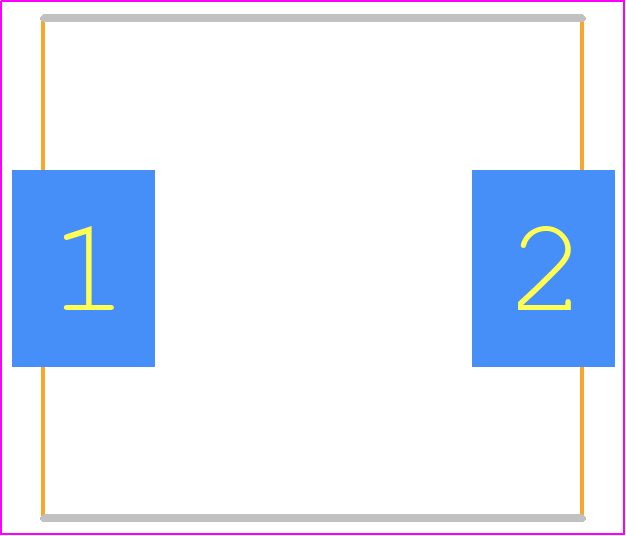

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 744373965068 by Wurth Elektronik
Results Overview of 744373965068 by Wurth Elektronik
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
744373965068 Information
744373965068 by Wurth Elektronik is a Fixed Inductor.
Fixed Inductors are under the broader part category of Inductors.
Inductors are passive components that resist sudden changes in current by storing and releasing energy in an electromagnetic fiel. They are often used in power circuits and energy storage. Read more about Inductors on our Inductors part category page.
Price & Stock for 744373965068
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
81AH9684
|
Newark | Power Inductor, 6.8Uh, Shielded, 9.5A Rohs Compliant: Yes |Wurth Elektronik 744373965068 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 0 |
|
$3.6500 / $4.6200 | Buy Now |
|
DISTI #
732-11443-1-ND
|
DigiKey | FIXED IND 6.8UH 9.5A 0.0116OHM Min Qty: 1 Lead time: 16 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
79 In Stock |
|
$2.1186 / $2.6900 | Buy Now |
|
DISTI #
710-744373965068
|
Mouser Electronics | Power Inductors - SMD WE-LHMI Powr SMD1365 6.8uH 9.5A 11.5mOhm RoHS: Compliant | 85 |
|
$2.0200 / $2.9900 | Buy Now |
Part Details for 744373965068

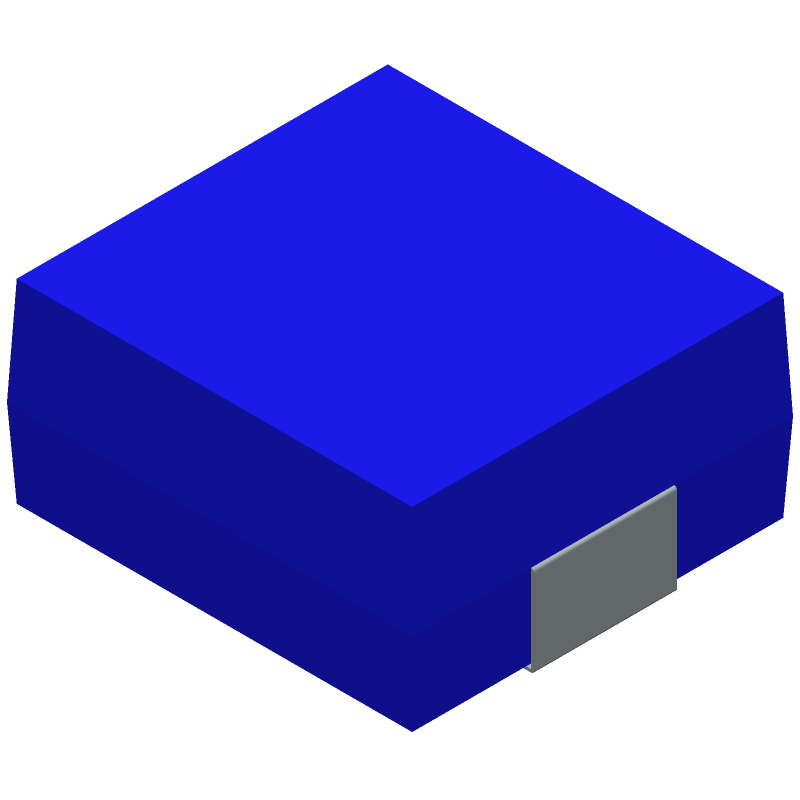

744373965068 CAD Models
744373965068 Part Data Attributes
|
|
744373965068
Wurth Elektronik
Buy Now
Datasheet
|
Compare Parts:
744373965068
Wurth Elektronik
WE-LHMI SMD Power Inductor
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | WUERTH ELEKTRONIK GMBH & CO KG | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8504.50.80.00 | |
| Samacsys Manufacturer | Würth Elektronik | |
| Case/Size Code | 5349 | |
| Construction | Rectangular | |
| Core Material | POWDERED IRON | |
| DC Resistance | 0.0116 Ω | |
| Inductance-Nom (L) | 6.8 µH | |
| Inductor Application | POWER INDUCTOR | |
| Inductor Type | GENERAL PURPOSE INDUCTOR | |
| Number of Functions | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Height | 6.2 mm | |
| Package Length | 13.5 mm | |
| Package Style | SMT | |
| Package Width | 12.5 mm | |
| Packing Method | TR, Embossed Plastic, 13 Inch | |
| Rated Current-Max | 9.5 A | |
| Reference Standard | AEC-Q200 | |
| Self Resonance Frequency | 11.6 MHz | |
| Shape/Size Description | RECTANGULAR PACKAGE | |
| Shielded | YES | |
| Special Feature | INDUCTANCE IS MEASURED AT 10 MILLI AMPERE | |
| Surface Mount | YES | |
| Terminal Placement | DUAL ENDED | |
| Terminal Shape | J BEND | |
| Test Frequency | 0.1 MHz | |
| Tolerance | 20% |
