74279226101 Information
74279226101 by Wurth Elektronik is a Data Line Filter.
Data Line Filters are under the broader part category of Filters.
A filter is an electronic circuit that selectively allows certain frequencies to pass while attenuating others. They are used to extract desired signals and remove noise. Read more about Filters on our Filters part category page.
Price & Stock for 74279226101
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
74T0824
|
Newark | Ferrite Bead, 0.006Ohm, 8A, 1812, Ferrite Case Style:1812 [4532 Metric], Impedance:100Ohm, Dc Current Rating:8A, Product Range:We-Mpsb Series, Dc Resistance Max:0.006Ohm, Impedance Tolerance:± 25%, Product Length:4.5Mm Rohs Compliant: Yes |Wurth Elektronik 74279226101 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 170 |
|
$0.6100 / $0.7050 | Buy Now |
|
DISTI #
732-3431-1-ND
|
DigiKey | FERRITE BEAD 100 OHM 1812 1LN Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
17609 In Stock |
|
$0.4941 / $0.6800 | Buy Now |
|
DISTI #
710-74279226101
|
Mouser Electronics | Ferrite Beads WE-MPSB Ferrite 100MHz 100Ohm AECQ2 RoHS: Compliant | 11230 |
|
$0.5170 / $0.6700 | Buy Now |
|
DISTI #
87727692
|
Verical | 74279226101 Min Qty: 89 Package Multiple: 1 Date Code: 2239 | Americas - 92 |
|
$0.5850 | Buy Now |
|
|
Bristol Electronics | 313 |
|
RFQ | ||
|
|
Bristol Electronics | 175 |
|
RFQ | ||
|
|
Quest Components | FERRITE CHIP, 1 FUNCTION(S), 8A, 2 PIN(S) | 65 |
|
$0.6840 / $1.1400 | Buy Now |
|
DISTI #
SMC-74279226101
|
Sensible Micro Corporation | AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days | 134118 |
|
RFQ | |
|
|
Vyrian | Filters | 6029 |
|
RFQ | |
|
|
Win Source Electronics | WE-MPSB EMI Multilayer Power Suppression Bead | FERRITE BEAD 100 OHM 1812 1LN | 1608 |
|
$0.5527 / $0.8290 | Buy Now |
Part Details for 74279226101
74279226101 CAD Models
74279226101 Part Data Attributes
|
|
74279226101
Wurth Elektronik
Buy Now
Datasheet
|
Compare Parts:
74279226101
Wurth Elektronik

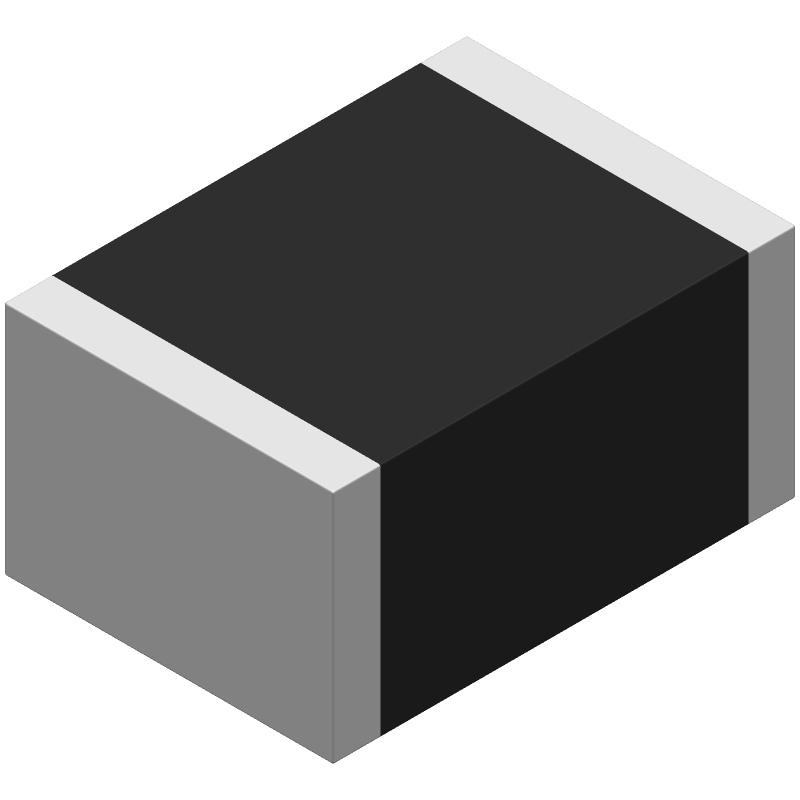

WE-MPSB EMI Multilayer Power Suppression Bead
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | WUERTH ELEKTRONIK GMBH & CO KG | |
| Package Description | ROHS AND REACH COMPLIANT PACKAGE-2 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8504.50.80.00 | |
| Samacsys Manufacturer | Würth Elektronik | |
| Case Code | 1812 | |
| Construction | Chip Bead | |
| DC Resistance-Max | 0.006 Ω | |
| Filter Type | FERRITE CHIP | |
| Frequency-Max | 1100 MHz | |
| Frequency-Min | 100 MHz | |
| Height | 2.3 mm | |
| JESD-609 Code | e3 | |
| Length | 4.5 mm | |
| Mounting Type | SURFACE MOUNT | |
| Number of Functions | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Impedance | 100 OHM Ω | |
| Packing Method | TR, 13 INCH | |
| Rated Current | 8 A | |
| Terminal Finish | Tin (Sn) - with Nickel (Ni) barrier | |
| Width | 3.2 mm |
