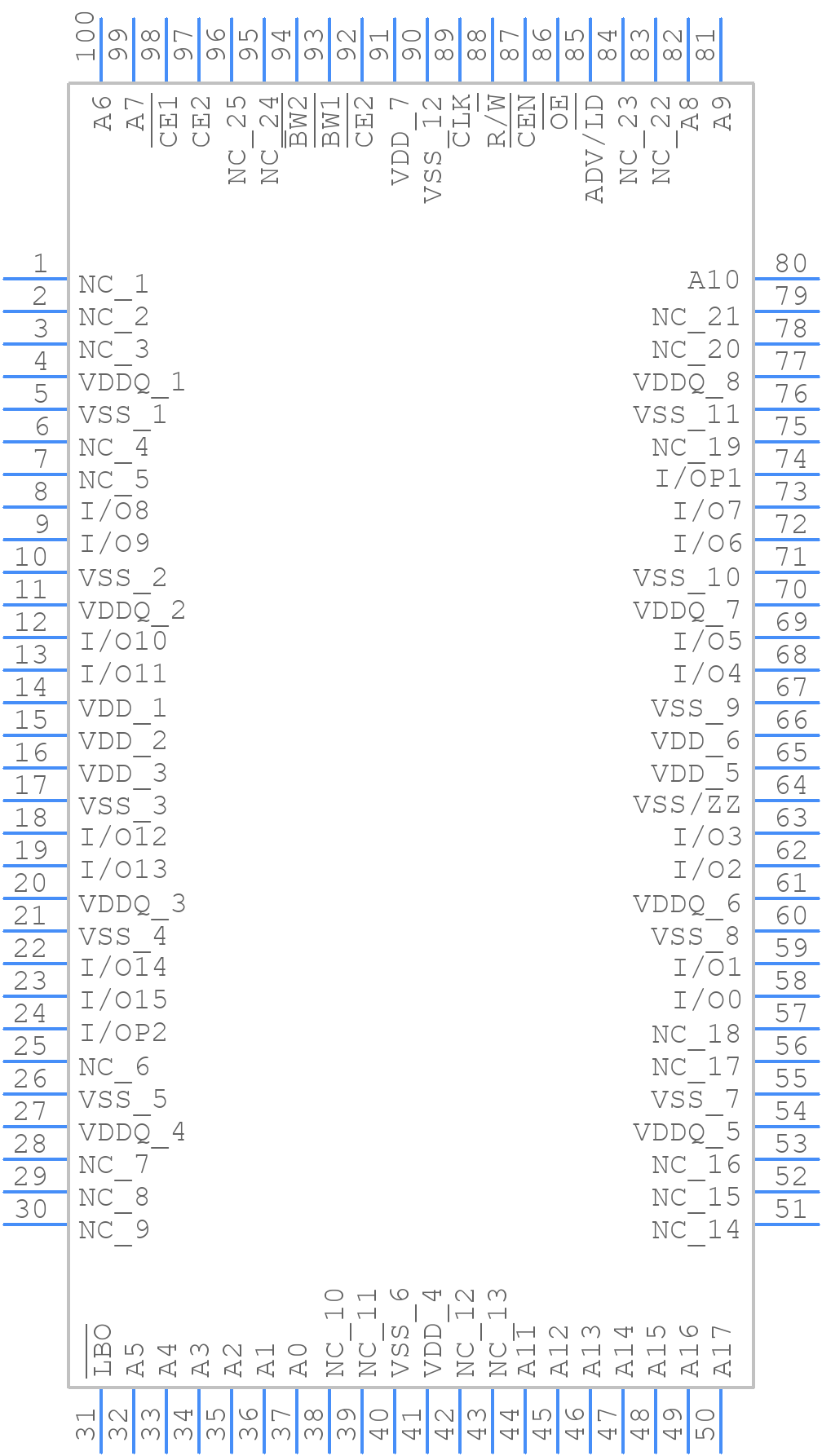

Part Symbol
-
Footprint
-

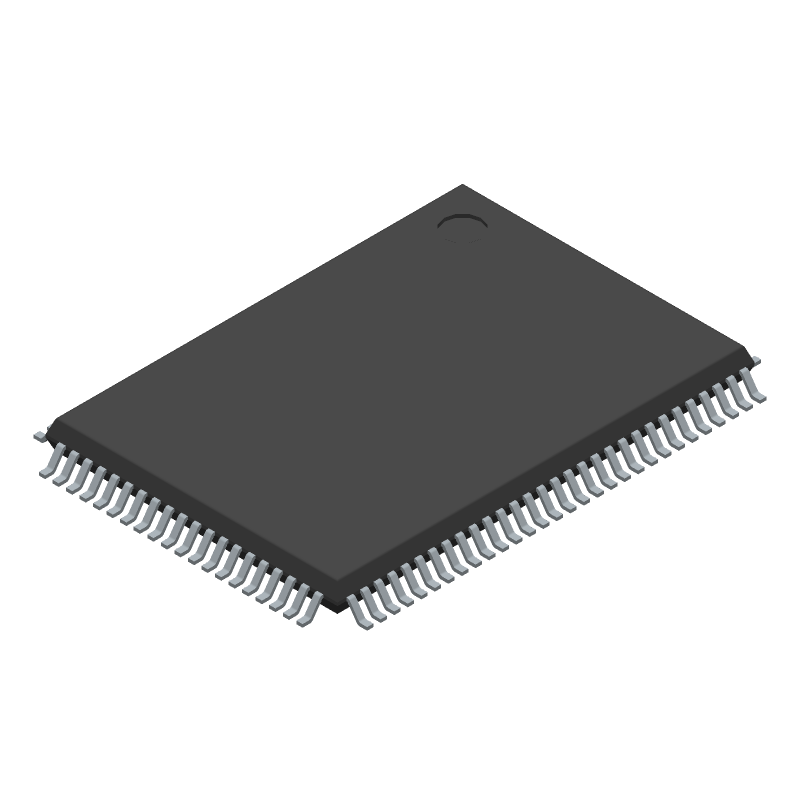

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 71V3558S166PFGI by Renesas Electronics Corporation
Results Overview of 71V3558S166PFGI by Renesas Electronics Corporation
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (8 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Internet of Things (IoT)
Computing and Data Storage
71V3558S166PFGI Information
71V3558S166PFGI by Renesas Electronics Corporation is an SRAM.
SRAMs are under the broader part category of Memory Components.
Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.
Price & Stock for 71V3558S166PFGI
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
71V3558S166PFGI-ND
|
DigiKey | IC SRAM 4.5MBIT PARALLEL 100TQFP Min Qty: 1 Lead time: 18 Weeks Container: Tray |
72 In Stock |
|
$10.7293 / $13.3800 | Buy Now |
Part Details for 71V3558S166PFGI
71V3558S166PFGI CAD Models
71V3558S166PFGI Part Data Attributes
|
|
71V3558S166PFGI
Renesas Electronics Corporation
Buy Now
Datasheet
|
Compare Parts:
71V3558S166PFGI
Renesas Electronics Corporation
3.3V 256K x 18 ZBT Synchronous PipeLined SRAM w/3.3V I/O, TQFP72/Tray
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | RENESAS ELECTRONICS CORP | |
| Part Package Code | TQFP | |
| Pin Count | 100 | |
| Manufacturer Package Code | PKG100 | |
| Reach Compliance Code | compliant | |
| ECCN Code | NLR | |
| HTS Code | 8542320041 | |
| Samacsys Manufacturer | Renesas Electronics | |
| Access Time-Max | 3.5 ns | |
| Clock Frequency-Max (fCLK) | 166 MHz | |
| I/O Type | COMMON | |
| JESD-30 Code | R-PQFP-G100 | |
| JESD-609 Code | e3 | |
| Length | 20 mm | |
| Memory Density | 4718592 bit | |
| Memory IC Type | ZBT SRAM | |
| Memory Width | 18 | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Terminals | 100 | |
| Number of Words | 262144 words | |
| Number of Words Code | 256000 | |
| Operating Mode | SYNCHRONOUS | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Organization | 256KX18 | |
| Output Characteristics | 3-STATE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LQFP | |
| Package Equivalence Code | QFP100,.63X.87 | |
| Package Shape | RECTANGULAR | |
| Package Style | FLATPACK, LOW PROFILE | |
| Parallel/Serial | PARALLEL | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.6 mm | |
| Standby Current-Max | 0.045 A | |
| Standby Voltage-Min | 3.14 V | |
| Supply Current-Max | 0.36 mA | |
| Supply Voltage-Max (Vsup) | 3.465 V | |
| Supply Voltage-Min (Vsup) | 3.135 V | |
| Supply Voltage-Nom (Vsup) | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 14 mm |
Alternate Parts for 71V3558S166PFGI
This table gives cross-reference parts and alternative options found for 71V3558S166PFGI. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 71V3558S166PFGI, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| AS8C401801-QC166NTR | Alliance Memory Inc | Check for Price | ZBT SRAM, 256KX18, 3.5ns, CMOS, PQFP100, 14 X 20 MM, ROHS COMPLIANT, PLASTIC, MO-136DJ, TQFP-100 | 71V3558S166PFGI vs AS8C401801-QC166NTR |
| IDT71V3558S166PF9 | Integrated Device Technology Inc | Check for Price | ZBT SRAM, 256KX18, 3.5ns, CMOS, PQFP100, PLASTIC, TQFP-100 | 71V3558S166PFGI vs IDT71V3558S166PF9 |
| 71V3558XS166PFGI8 | Integrated Device Technology Inc | Check for Price | ZBT SRAM, 256KX18, 3.5ns, CMOS, PQFP100 | 71V3558S166PFGI vs 71V3558XS166PFGI8 |
| IDT71V3558XS166PFG | Integrated Device Technology Inc | Check for Price | ZBT SRAM, 256KX18, 3.5ns, CMOS, PQFP100, 14 X 20 MM, 1.40 MM HEIGHT, ROHS COMPLIANT, PLASTIC, MO-136DJ, TQFP-100 | 71V3558S166PFGI vs IDT71V3558XS166PFG |
| 71V3558S166PFG8 | Integrated Device Technology Inc | Check for Price | TQFP-100, Reel | 71V3558S166PFGI vs 71V3558S166PFG8 |
| IDT71V3558S166PF8 | Integrated Device Technology Inc | Check for Price | ZBT SRAM, 256KX18, 3.5ns, CMOS, PQFP100, 14 X 20 MM, 1.40 MM HEIGHT, PLASTIC, TQFP-100 | 71V3558S166PFGI vs IDT71V3558S166PF8 |
| IDT71V3558S166PFG8 | Integrated Device Technology Inc | Check for Price | ZBT SRAM, 256KX18, 3.5ns, CMOS, PQFP100, 14 X 20 MM, 1.40 MM HEIGHT, ROHS COMPLIANT, PLASTIC, TQFP-100 | 71V3558S166PFGI vs IDT71V3558S166PFG8 |
| IDT71V3558S166PFGI8 | Integrated Device Technology Inc | Check for Price | ZBT SRAM, 256KX18, 3.5ns, CMOS, PQFP100, 14 X 20 MM, 1.40 MM HEIGHT, ROHS COMPLIANT, PLASTIC, TQFP-100 | 71V3558S166PFGI vs IDT71V3558S166PFGI8 |
