Memory / SRAMs / 71124S20YG
Datasheets
71124S20YG by:
Renesas Electronics Corporation

5.0V 128K x 8 Asynchronous Static RAM Center Pwr & Gnd Pinout, SOJ23/Tube

Part Details for 71124S20YG by Renesas Electronics Corporation

Results Overview of 71124S20YG by Renesas Electronics Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

71124S20YG Information

71124S20YG by Renesas Electronics Corporation is an SRAM.
SRAMs are under the broader part category of Memory Components.

Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.

Price & Stock for 71124S20YG

Part # Distributor Description Stock Price Buy
DISTI # 71124S20YG
Avnet Silica (Alt: 71124S20YG) RoHS: Compliant Min Qty: 1 Package Multiple: 23 Lead time: 37 Weeks, 0 Days Silica - 0
Buy Now

Part Details for 71124S20YG

71124S20YG CAD Models

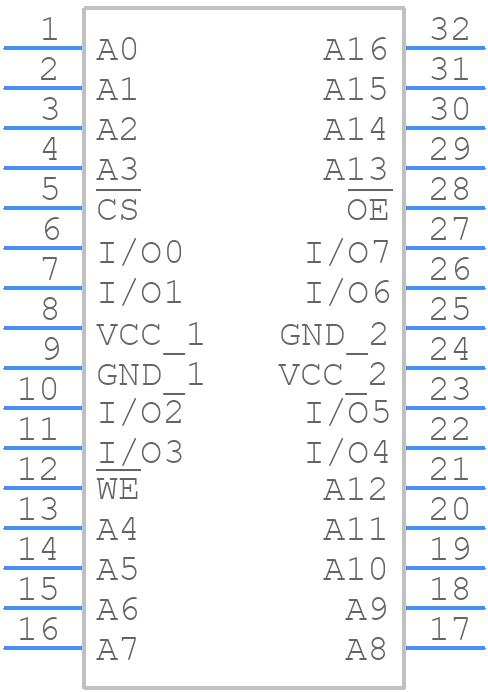

  • Part Symbol

    Part Symbol

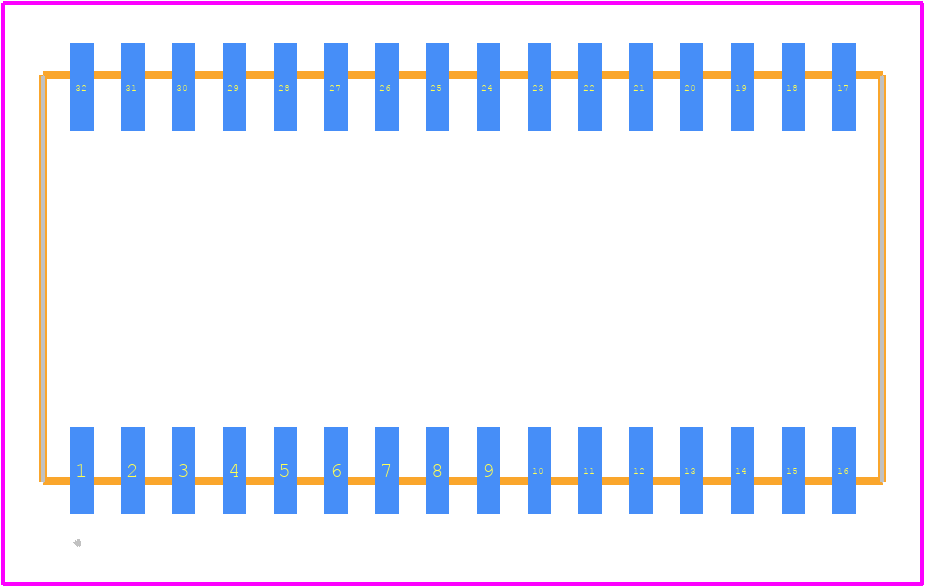

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

71124S20YG Part Data Attributes

Parametric Data
71124S20YG Renesas Electronics Corporation
Buy Now Datasheet
Compare Parts:
71124S20YG Renesas Electronics Corporation 5.0V 128K x 8 Asynchronous Static RAM Center Pwr & Gnd Pinout, SOJ23/Tube
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Obsolete
Ihs Manufacturer RENESAS ELECTRONICS CORP
Part Package Code SOJ
Pin Count 32
Manufacturer Package Code PBG32
Reach Compliance Code compliant
ECCN Code NLR
HTS Code 8542320041
Factory Lead Time 4 Weeks
Samacsys Manufacturer Renesas Electronics
Access Time-Max 20 ns
I/O Type COMMON
JESD-30 Code R-PDSO-J32
JESD-609 Code e3
Length 20.955 mm
Memory Density 1048576 bit
Memory IC Type STANDARD SRAM
Memory Width 8
Moisture Sensitivity Level 3
Number of Functions 1
Number of Terminals 32
Number of Words 131072 words
Number of Words Code 128000
Operating Mode ASYNCHRONOUS
Operating Temperature-Max 70 °C
Operating Temperature-Min
Organization 128KX8
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code SOJ
Package Equivalence Code SOJ32,.44
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Parallel/Serial PARALLEL
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Seated Height-Max 3.683 mm
Standby Current-Max 0.01 A
Standby Voltage-Min 4.5 V
Supply Current-Max 0.14 mA
Supply Voltage-Max (Vsup) 5.5 V
Supply Voltage-Min (Vsup) 4.5 V
Supply Voltage-Nom (Vsup) 5 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish MATTE TIN
Terminal Form J BEND
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Width 10.16 mm

Alternate Parts for 71124S20YG

This table gives cross-reference parts and alternative options found for 71124S20YG. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 71124S20YG, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
71124S20YG8 Integrated Device Technology Inc Check for Price SOJ-32, Reel 71124S20YG vs 71124S20YG8
AS7C1025B-20JC Alliance Memory Inc Check for Price Standard SRAM, 128KX8, 20ns, CMOS, PDSO32, 0.400 INCH, SOJ-32 71124S20YG vs AS7C1025B-20JC
AS7C1025B-20JCN Alliance Semiconductor Corporation Check for Price Standard SRAM, 128KX8, 20ns, CMOS, PDSO32, 0.400 INCH, SOJ-32 71124S20YG vs AS7C1025B-20JCN
71124S20YG Integrated Device Technology Inc Check for Price SOJ-32, Tube 71124S20YG vs 71124S20YG
IDT71124S20Y8 Integrated Device Technology Inc Check for Price Standard SRAM, 128KX8, 20ns, CMOS, PDSO32, 0.400 INCH, PLASTIC, SOJ-32 71124S20YG vs IDT71124S20Y8
IDT71124S20YG Integrated Device Technology Inc Check for Price Standard SRAM, 128KX8, 20ns, CMOS, PDSO32, 0.400 INCH, PLASTIC, SOJ-32 71124S20YG vs IDT71124S20YG
IDT71124S20YG8 Integrated Device Technology Inc Check for Price Standard SRAM, 128KX8, 20ns, CMOS, PDSO32, 0.400 INCH, PLASTIC, SOJ-32 71124S20YG vs IDT71124S20YG8
AS7C1025B-20JC Alliance Semiconductor Corporation Check for Price Standard SRAM, 128KX8, 20ns, CMOS, PDSO32, 0.400 INCH, SOJ-32 71124S20YG vs AS7C1025B-20JC
Part Number Manufacturer Composite Price Description Compare
EDI88130CS20HM Electronic Designs Inc Check for Price Standard SRAM, 128KX8, 20ns, CMOS, PDIP32, 71124S20YG vs EDI88130CS20HM
WMS128K8C-20FMEA White Microelectronics Check for Price Standard SRAM, 128KX8, 20ns, CMOS, CDFP36, 71124S20YG vs WMS128K8C-20FMEA
5962-8959838M7A Micross Components Check for Price Standard SRAM, 128KX8, 20ns, CMOS, CDSO32, CERAMIC, SOJ-32 71124S20YG vs 5962-8959838M7A
FT61024-20J3I Force Technologies Ltd Check for Price Standard SRAM, 128KX8, 20ns, CMOS, PDSO32, 0.300 INCH, PLASTIC, SOJ-32 71124S20YG vs FT61024-20J3I
WMS128K8C-20CIE White Microelectronics Check for Price Standard SRAM, 128KX8, 20ns, CMOS, CDIP32, 71124S20YG vs WMS128K8C-20CIE
P4C1024-20J3C Pyramid Semiconductor Corporation Check for Price Standard SRAM, 128KX8, 20ns, CMOS, PDSO32, 0.300 INCH, PLASTIC, SOJ-32 71124S20YG vs P4C1024-20J3C
5962-8959839MTA Electronic Designs Inc Check for Price Standard SRAM, 128KX8, 20ns, CMOS, CDFP32, 71124S20YG vs 5962-8959839MTA
AS7C1024B-20TJC Alliance Memory Inc Check for Price Standard SRAM, 128KX8, 20ns, CMOS, PDSO32, 0.300 INCH, PLASTIC, SOJ-32 71124S20YG vs AS7C1024B-20TJC
5962-8959821MUX Mercury Systems Inc Check for Price Standard SRAM, 128KX8, 20ns, CMOS, CDSO32, CERAMIC, LCC-32 71124S20YG vs 5962-8959821MUX
5962-8959838MUX Electronic Designs Inc Check for Price Standard SRAM, 128KX8, 20ns, CMOS, CDSO32, CERAMIC, LCC-32 71124S20YG vs 5962-8959838MUX
