7-1393224-6 by: TE Connectivity

Power/Signal Relay, 1 Form A, SPST, Momentary, 0.045A (Coil), 5VDC (Coil), 223mW (Coil), 8A (Contact), DC Input, AC Output, Panel Mount

Part Details for 7-1393224-6 by TE Connectivity

Results Overview of 7-1393224-6 by TE Connectivity

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Industrial Automation Renewable Energy Robotics and Drones

7-1393224-6 Information

7-1393224-6 by TE Connectivity is a Power/Signal Relay.
Power/Signal Relays are under the broader part category of Relays.

A relay is an electromechanical switch that uses an electrical signal to open or close circuits, protecting systems from overcurrents or voltage surges. They are used in a variety of applications, including lighting control, telecommunication, automotive systems, and power protection. Read more about Relays on our Relays part category page.

Price & Stock for 7-1393224-6

Part # Distributor Description Stock Price Buy
DISTI # 16H4320
Newark Ry531005 Rohs Compliant: Yes |Schrack Te Connectivity 7-1393224-6 RoHS: Compliant Min Qty: 500 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 500 $2.4600
  • 1,000 $2.3600
  • 2,500 $2.2500
$2.2500 / $2.4600 Buy Now
DISTI # 7-1393224-6
Avnet Americas Electromechanical Relay SPST-NO 8A 5VDC 112Ohm Through Hole - Bag (Alt: 7-1393224-6) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 18 Weeks, 6 Days Container: Bag 0
RFQ
DISTI # AMP7-1393224-6
Heilind Electronics RY531005 Americas - 0 in Stock
  • 1 $2.2784
  • 25 $2.2176
  • 50 $2.1600
$2.1600 / $2.2784 Buy Now
Onlinecomponents.com RY531005 RoHS: Compliant 335 In Stock
  • 10 $3.2200
  • 25 $3.1700
  • 50 $3.1300
  • 125 $3.0800
  • 250 $2.3100
  • 375 $2.1600
  • 500 $2.1100
$2.1100 / $3.2200 Buy Now
DISTI # 87460092
Verical Power Relay 5VDC 8A SPST-NO(28.5mm 10.1mm 12.3mm) THT RoHS: Compliant Min Qty: 100 Package Multiple: 20 Date Code: 2214 Americas - 14580
  • 100 $1.7360
  • 260 $1.7080
  • 500 $1.6660
  • 1,000 $1.6380
  • 2,500 $1.6240
  • 5,000 $1.5120
  • 10,000 $1.3440
$1.3440 / $1.7360 Buy Now
DISTI # 87331631
Verical Power Relay 5VDC 8A SPST-NO(28.5mm 10.1mm 12.3mm) THT RoHS: Compliant Min Qty: 23 Package Multiple: 1 Americas - 211
  • 23 $3.4419
  • 100 $2.9403
$2.9403 / $3.4419 Buy Now
DISTI # 7-1393224-6
TTI General Purpose Relays RY531005 PCB RELAYS UP TO 10A Min Qty: 500 Package Multiple: 20 Container: Tube Americas - 0
  • 500 $1.9200
  • 1,000 $1.8800
  • 2,500 $1.8400
  • 5,000 $1.7100
  • 10,000 $1.5400
  • 25,000 $1.4000
$1.4000 / $1.9200 Buy Now
Future Electronics RELAY GENERAL PURPOSE SPST 8A 5V Min Qty: 20 Package Multiple: 20 9880
null
  • 20 $0.9550
  • 80 $0.9250
  • 300 $0.8950
  • 600 $0.8800
  • 1,500 $0.8500
$0.8500 / $0.9550 Buy Now
DISTI # RY531005
TME Relay: electromagnetic, SPST-NO, Ucoil: 5VDC, Icontacts max: 8A Min Qty: 1 265
  • 1 $2.8900
  • 5 $2.6300
  • 20 $2.2400
  • 100 $1.9800
  • 500 $1.7000
$1.7000 / $2.8900 Buy Now
DISTI # 7-1393224-6
IBS Electronics MINIATURE POWER PCB ELECTROMECHANICAL RELAY SPST-NO 8A 5VDC 112OHM THROUGH HOLE Min Qty: 100 Package Multiple: 1 24795
  • 50 $4.0690
  • 80 $1.2025
  • 100 $1.2415
  • 125 $4.0040
  • 250 $3.0030
  • 375 $2.8080
  • 500 $2.7430
  • 25,000 $1.3375
$1.2025 / $4.0690 Buy Now
DISTI # AMP7-1393224-6
Interstate Connecting Components RY531005 0
  • 1 $2.2784
  • 25 $2.2176
  • 50 $2.1600
$2.1600 / $2.2784 Buy Now
DISTI # 7-1393224-6
Avnet Abacus Electromechanical Relay SPSTNO 8A 5VDC 112Ohm Through Hole (Alt: 7-1393224-6) RoHS: Compliant Min Qty: 20 Package Multiple: 20 Lead time: 14 Weeks, 0 Days Abacus - 4540
Buy Now
DISTI # 7-1393224-6
Avnet Abacus (Alt: 7-1393224-6) RoHS: Compliant Min Qty: 20 Package Multiple: 20 Lead time: 12 Weeks, 0 Days Abacus - 2500
Buy Now
Master Electronics RY531005 RoHS: Compliant 335 In Stock
  • 10 $3.2200
  • 25 $3.1700
  • 50 $3.1300
  • 125 $3.0800
  • 250 $2.3100
  • 375 $2.1600
  • 500 $2.1100
$2.1100 / $3.2200 Buy Now
New Advantage Corporation TE, RY531005 RoHS: Compliant Min Qty: 1 Package Multiple: 20 3640
  • 100 $2.3500
  • 3,640 $2.1700
$2.1700 / $2.3500 Buy Now

Part Details for 7-1393224-6

7-1393224-6 Part Data Attributes

Parametric Data
7-1393224-6 TE Connectivity
Buy Now Datasheet
Compare Parts:

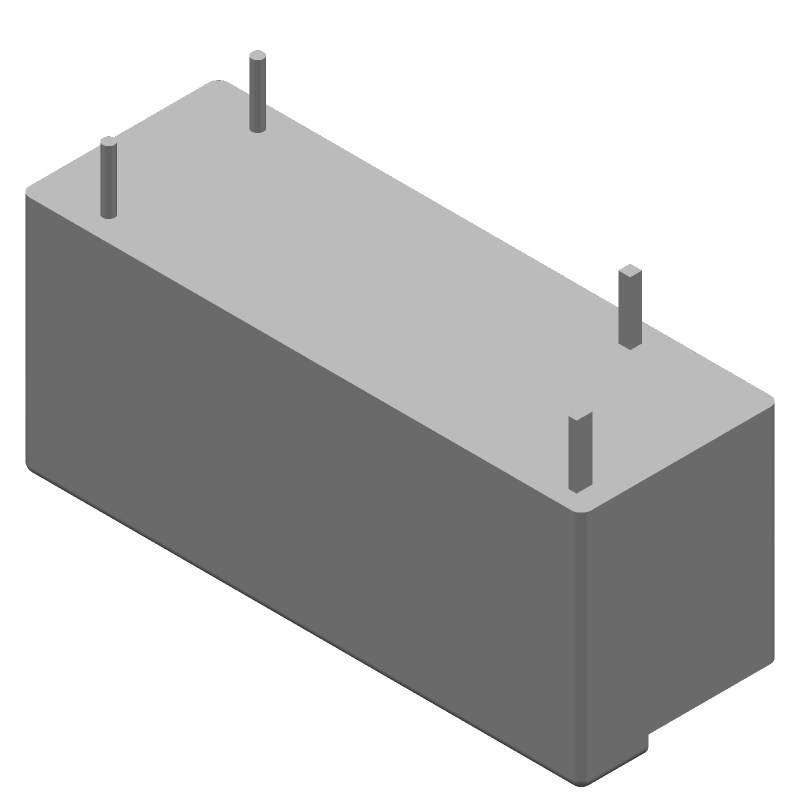

7-1393224-6 TE Connectivity Power/Signal Relay, 1 Form A, SPST, Momentary, 0.045A (Coil), 5VDC (Coil), 223mW (Coil), 8A (Contact), DC Input, AC Output, Panel Mount
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TE CONNECTIVITY LTD
Package Description ROHS COMPLIANT
Reach Compliance Code compliant
Factory Lead Time 20 Weeks, 6 Days
Samacsys Manufacturer TE Connectivity
Body Breadth 10.1 mm
Body Height 12.3 mm
Body Length or Diameter 28.5 mm
Coil Current(DC)-Max 0.045 A
Coil Operate Voltage(DC) 3.5 V
Coil Power 223 mW
Coil Release Voltage(DC) 0.5 V
Coil Resistance 112 Ω
Coil Voltage(DC)-Max 5 V
Coil/Input Supply Type DC
Contact (AC) Max Rating R Load 8A@400VAC
Contact Current(AC)-Max 8 A
Contact Current(DC)-Max 8 A
Contact Voltage(AC)-Max 400 V
Contact/Output Supply Type AC
Dielectric Strength Between Coil and Contacts 5000 Vrms
Dielectric Strength Between Open Contacts 1000 Vrms
Electrical Life 30000 Cycle(s)
End Contact Material SILVER NICKEL
Mounting Feature PANEL MOUNT
Operate Time 11.5 ms
Operating Temperature-Max 70 °C
Operating Temperature-Min -40 °C
Packing Method BOX; TUBE
Physical Dimension 28.5mm x 10.1mm x 12.3mm
Reference Standard UL; VDE
Relay Action MOMENTARY
Relay Form 1 FORM A
Relay Function SPST
Relay Type POWER/SIGNAL RELAY
Release Time 7.5 ms
Sealing RT2
Surface Mount NO
Termination Type SOLDER/QUICK CONNECT
Weight 8 g
