Capacitors / Tantalum Capacitors / 6TCE330MIL
Datasheets
6TCE330MIL by:

Tantalum Capacitor, Tantalum (solid Polymer)

Part Details for 6TCE330MIL by Panasonic Electronic Components

Results Overview of 6TCE330MIL by Panasonic Electronic Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Environmental Monitoring Space Technology Aerospace and Defense Transportation and Logistics Healthcare Renewable Energy Medical Imaging Automotive

6TCE330MIL Information

6TCE330MIL by Panasonic Electronic Components is a Tantalum Capacitor.
Tantalum Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for 6TCE330MIL

Part # Distributor Description Stock Price Buy
DISTI # 58Y5616
Newark Poscap Tce Series Rohs Compliant: Yes |Panasonic 6TCE330MIL RoHS: Compliant Min Qty: 2500 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 2,000 $1.2200
  • 4,000 $1.1200
  • 6,000 $1.0800
  • 10,000 $1.0500
$1.0500 / $1.2200 Buy Now
DISTI # 89Y2745
Newark Cap, 330Μf, 6.3V, 20%, Capacitance:330Μf, Voltage Rating:6.3V, Product Range:Poscap Tce Series, Capacitance Tolerance:± 20%, Manufacturer Size Code:D, Esr:0.018Ohm, Operating Temperature Min:-55°C, Operating Temperature Max:125°C, Rohs Compliant: Yes |Panasonic 6TCE330MIL RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape 0
  • 1 $2.4100
  • 10 $1.8700
  • 25 $1.8000
  • 50 $1.7300
  • 100 $1.4500
$1.4500 / $2.4100 Buy Now
DISTI # P123570CT-ND
DigiKey CAP TANT POLY 330UF 6.3V 2917 Min Qty: 1 Lead time: 22 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 2499
In Stock
  • 1 $2.4700
  • 10 $1.6890
  • 50 $1.3808
  • 100 $1.2854
  • 500 $1.1241
  • 1,000 $1.0742
  • 2,500 $1.0214
  • 5,000 $0.9896
  • 7,500 $0.9737
$0.9737 / $2.4700 Buy Now
DISTI # 6TCE330MIL
Avnet Americas Tantalum Polymer Capacitor, 330 uF, 6.3 V, ? 20%, D3L, 18 mohm, 2917 [7343-28 Metric] - Tape and Reel (Alt: 6TCE330MIL) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 22 Weeks, 0 Days Container: Reel 0
  • 2,500 $0.8641
  • 5,000 $0.8520
  • 10,000 $0.8382
  • 15,000 $0.8299
  • 20,000 $0.8256
$0.8256 / $0.8641 Buy Now
DISTI # 667-6TCE330MIL
Mouser Electronics Tantalum Capacitors - Polymer 6.3VDC 330uF 18m POSCAP RoHS: Compliant 2478
  • 1 $2.4500
  • 10 $1.6600
  • 50 $1.3900
  • 100 $1.2900
  • 250 $1.2600
  • 500 $1.1100
  • 1,000 $1.0100
  • 2,500 $0.9950
  • 5,000 $0.9770
$0.9770 / $2.4500 Buy Now
Future Electronics Cap, 330f, 6.3V, 20%, Capacitance330f, Voltage Rating6.3V, Product RangePosM06 RoHS: Compliant pbFree: Yes Min Qty: 2500 Package Multiple: 2500 Lead time: 22 Weeks Container: Reel 2500
Reel
  • 2,500 $1.5400
$1.5400 Buy Now
Onlinecomponents.com POSCAP, TCE Series, 6.3VDC, 330uF, 18m , Chip, 7.3x4.3x2.8 RoHS: Compliant 0
  • 625 $1.8010
  • 1,250 $1.1080
  • 1,875 $0.8770
  • 2,500 $0.8600
$0.8600 / $1.8010 Buy Now
Quest Components   1988
  • 1 $2.7712
  • 469 $1.1431
  • 876 $1.0392
$1.0392 / $2.7712 Buy Now
DISTI # 6TCE330MIL
Avnet Abacus Tantalum Polymer Capacitor 330 uF 63 V 20 D3L 18 mohm 2917 734328 Metric - Tape and Reel (Alt: 6TCE330MIL) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 31 Weeks, 0 Days Container: Reel Abacus - 0
Buy Now
Master Electronics POSCAP, TCE Series, 6.3VDC, 330uF, 18m , Chip, 7.3x4.3x2.8 RoHS: Compliant 0
  • 625 $1.8010
  • 1,250 $1.1080
  • 1,875 $0.8770
  • 2,500 $0.8600
$0.8600 / $1.8010 Buy Now
New Advantage Corporation   RoHS: Compliant Min Qty: 1 Package Multiple: 2500 5000
  • 2,500 $2.5700
  • 5,000 $2.3700
$2.3700 / $2.5700 Buy Now

Part Details for 6TCE330MIL

6TCE330MIL CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

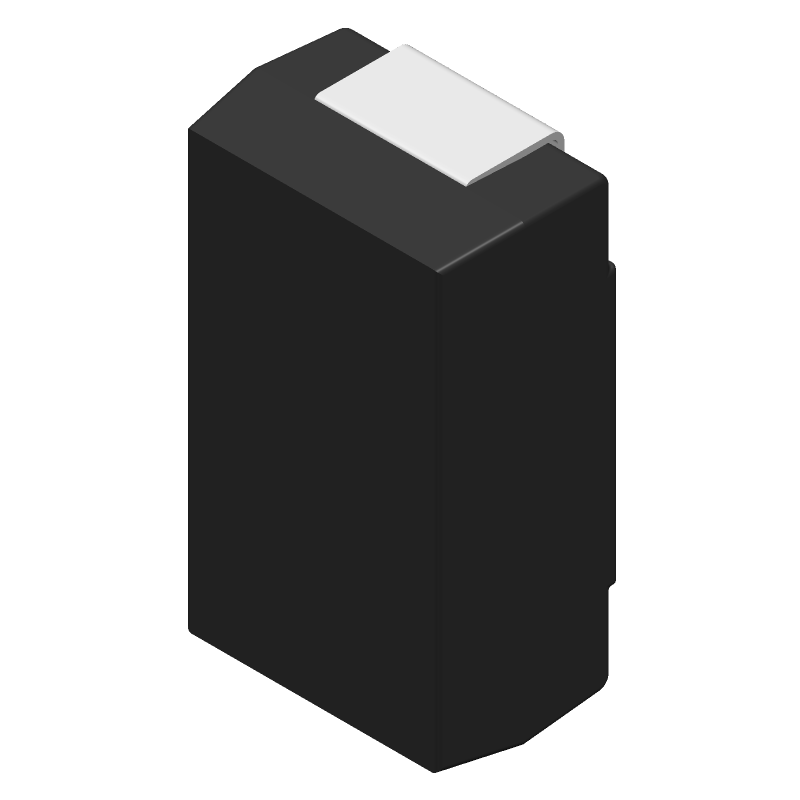

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

6TCE330MIL Part Data Attributes

Parametric Data
6TCE330MIL Panasonic Electronic Components
Buy Now Datasheet
Compare Parts:
6TCE330MIL Panasonic Electronic Components Tantalum Capacitor, Tantalum (solid Polymer)
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer PANASONIC CORP
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8532.21.00.50
Factory Lead Time 22 Weeks
Samacsys Manufacturer Panasonic
Additional Feature ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ
Capacitance 330 µF
Capacitor Type TANTALUM CAPACITOR
Dielectric Material TANTALUM (SOLID POLYMER)
ESR 18 mΩ
Height 2.8 mm
Leakage Current 0.2079 mA
Length 7.3 mm
Mounting Feature SURFACE MOUNT
Negative Tolerance 20%
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Style SMT
Packing Method TR, 13 INCH
Polarity POLARIZED
Positive Tolerance 20%
Rated (DC) Voltage (URdc) 6.3 V
Ripple Current 2800 mA
Size Code 2917
Surface Mount YES
Tan Delta 0.10
Terminal Shape J BEND
Width 4.3 mm

Alternate Parts for 6TCE330MIL

This table gives cross-reference parts and alternative options found for 6TCE330MIL. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 6TCE330MIL, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
T55D337M6R3C0012 Vishay Intertechnologies $1.0813 Tantalum Capacitor, Tantalum (solid Polymer), 6TCE330MIL vs T55D337M6R3C0012
T540D337M006DT6510WAFL KEMET Corporation Check for Price Tantalum Capacitor, Tantalum (solid Polymer), 6TCE330MIL vs T540D337M006DT6510WAFL
T540D337M006BT67107640 KEMET Corporation Check for Price Tantalum Capacitor, Tantalum (solid Polymer), 6TCE330MIL vs T540D337M006BT67107640
T525D337M006ATE0257280 KEMET Corporation Check for Price Tantalum Capacitor, Polarized, Tantalum (solid Polymer), 6.3V, 20% +Tol, 20% -Tol, 330uF, Surface Mount, 2917, CHIP, HALOGEN FREE AND ROHS COMPLIANT 6TCE330MIL vs T525D337M006ATE0257280
T540D337M006AH6710 KEMET Corporation Check for Price Tantalum Capacitor, Polarized, Tantalum (solid Polymer), 6.3V, 20% +Tol, 20% -Tol, 330uF, Surface Mount, 2917, CHIP 6TCE330MIL vs T540D337M006AH6710
T540D337M006DH6610WAFL KEMET Corporation Check for Price Tantalum Capacitor, Tantalum (solid Polymer), 6TCE330MIL vs T540D337M006DH6610WAFL
T540D337M006BT65107280 KEMET Corporation Check for Price Tantalum Capacitor, Tantalum (solid Polymer), 6TCE330MIL vs T540D337M006BT65107280
T540D337M006CT6620WAFL KEMET Corporation Check for Price Tantalum Capacitor, Tantalum (solid Polymer), 6TCE330MIL vs T540D337M006CT6620WAFL
T540D337M006CH66107640 KEMET Corporation Check for Price Tantalum Capacitor, Tantalum (solid Polymer), 6TCE330MIL vs T540D337M006CH66107640
T540D337M006BT65207640 KEMET Corporation Check for Price Tantalum Capacitor, Tantalum (solid Polymer), 6TCE330MIL vs T540D337M006BT65207640
