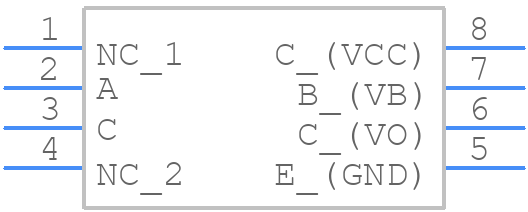

Part Symbol
-

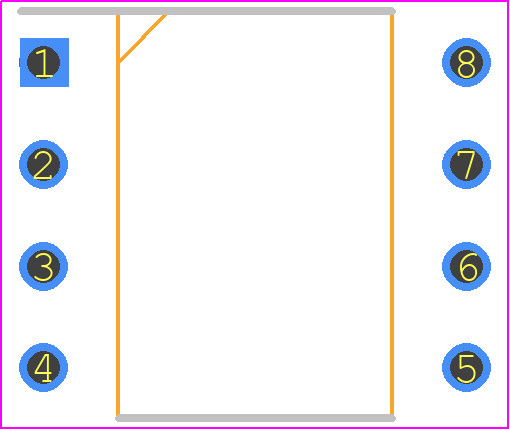

Footprint
-

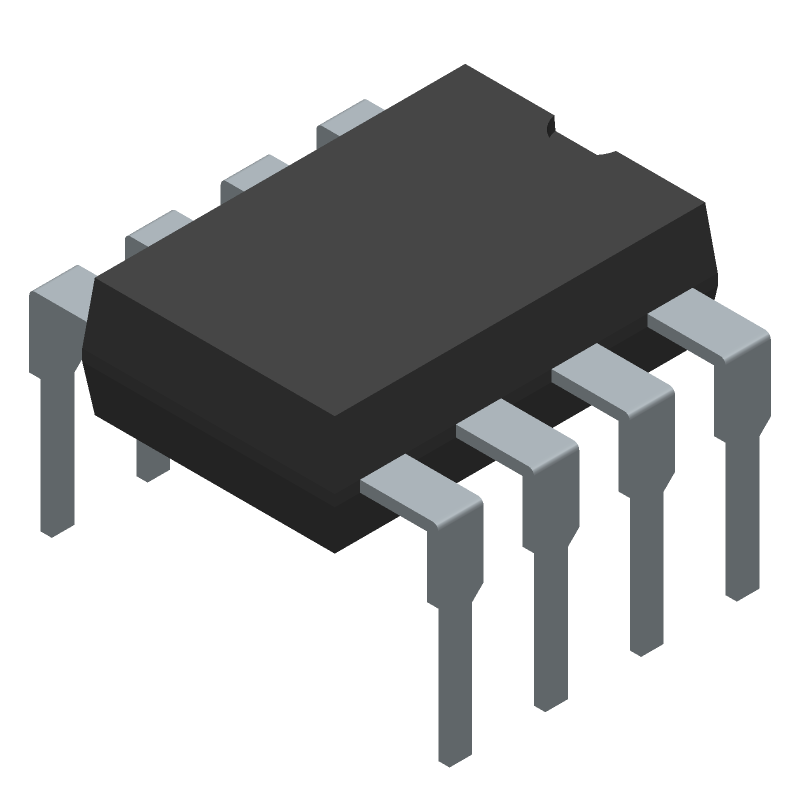

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 6N136-X006 by Vishay Intertechnologies
Results Overview of 6N136-X006 by Vishay Intertechnologies
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Space Technology
Aerospace and Defense
Transportation and Logistics
Renewable Energy
Automotive
Robotics and Drones
6N136-X006 Information
6N136-X006 by Vishay Intertechnologies is an Optocoupler.
Optocoupler are under the broader part category of Optoelectronics.
Optoelectronic components work to detect, generate, and control light. They can essentially produce and/or react to light. Read more about Optoelectronics on our Optoelectronics part category page.
Price & Stock for 6N136-X006
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
43K9785
|
Newark | Npn-Output Dc-Input Optocoupler,1-Channel,5.3Kv Isolation, dip |Vishay 6N136-X006 RoHS: Not Compliant Min Qty: 2000 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$0.5620 / $0.6090 | Buy Now |
|
DISTI #
782-6N136-X006
|
Mouser Electronics | High Speed Optocouplers 1Mbd High-Speed Trans Out CTR>35% RoHS: Compliant | 805 |
|
$0.6000 / $1.5300 | Buy Now |
|
|
Bristol Electronics | 500 |
|
RFQ | ||
|
DISTI #
6N136-X006
|
TTI | High Speed Optocouplers 1Mbd High-Speed Trans Out CTR>35% RoHS: Compliant pbFree: Pb-Free Min Qty: 2000 Package Multiple: 50 Container: Tube | Americas - 0 |
|
$0.5200 / $0.5400 | Buy Now |
|
DISTI #
6N136-X006
|
EBV Elektronik | DIP8 CPLR CTR19 1Mdb e3 (Alt: 6N136-X006) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 10 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for 6N136-X006
6N136-X006 CAD Models
6N136-X006 Part Data Attributes
|
|
6N136-X006
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
6N136-X006
Vishay Intertechnologies
Logic IC Output Optocoupler, 1-Element, 2500V Isolation, 1MBps, DIP-8
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | End Of Life | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | DIP-8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.40.80.00 | |
| Factory Lead Time | 4 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | OPEN COLLECTOR, UL RECOGNIZED | |
| Configuration | SINGLE | |
| Current Transfer Ratio-Min | 15% | |
| Data Rate-Nom | 1 MBps | |
| Forward Current-Max | 0.025 A | |
| Forward Voltage-Max | 1.9 V | |
| Isolation Voltage-Max | 2500 V | |
| JESD-609 Code | e3 | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Number of Elements | 1 | |
| Number of Functions | 1 | |
| On-State Current-Max | 0.008 A | |
| Operating Temperature-Max | 100 °C | |
| Operating Temperature-Min | -55 °C | |
| Optoelectronic Device Type | LOGIC IC OUTPUT OPTOCOUPLER | |
| Power Dissipation-Max | 0.1 W | |
| Surface Mount | NO | |
| Terminal Finish | Matte Tin (Sn) |
Alternate Parts for 6N136-X006
This table gives cross-reference parts and alternative options found for 6N136-X006. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 6N136-X006, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 6N136-X006 | Siemens | Check for Price | Logic IC Output Optocoupler, 1-Element, 2500V Isolation, 1MBps, DIP-8 | 6N136-X006 vs 6N136-X006 |
6N136-X006 Frequently Asked Questions (FAQ)
-
The recommended operating temperature range for the 6N136-X006 is -40°C to 100°C.
-
To ensure reliable operation in high-temperature environments, it's recommended to derate the device's current and voltage ratings according to the temperature derating curve provided in the datasheet.
-
The maximum allowable isolation voltage between the input and output circuits is 5 kVrms for 1 minute, as specified in the datasheet.
-
The 6N136-X006 is not suitable for high-frequency applications above 1 MHz due to its limited bandwidth and rise/fall times. For high-frequency applications, consider using a faster optocoupler like the 6N137 or 6N138 series.
-
The input resistor value depends on the input voltage and current requirements. A general guideline is to choose a resistor value that limits the input current to 10-20 mA. You can use the datasheet's input current vs. input voltage graph to determine the suitable resistor value for your application.
