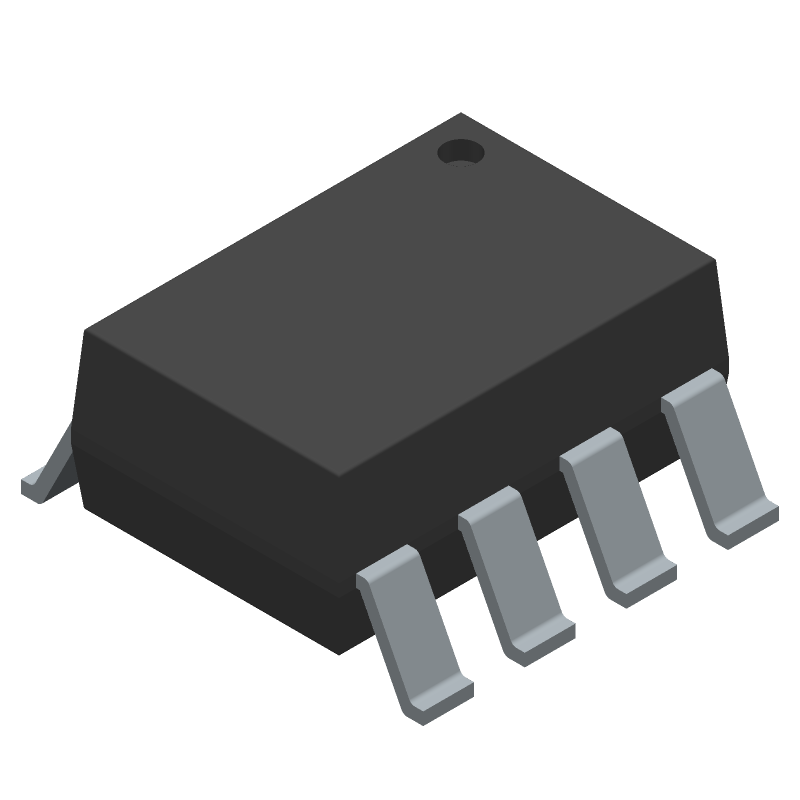

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 6N135-X017T by Vishay Intertechnologies
Results Overview of 6N135-X017T by Vishay Intertechnologies
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Energy and Power Systems
Renewable Energy
Automotive
6N135-X017T Information
6N135-X017T by Vishay Intertechnologies is an Optocoupler.
Optocoupler are under the broader part category of Optoelectronics.
Optoelectronic components work to detect, generate, and control light. They can essentially produce and/or react to light. Read more about Optoelectronics on our Optoelectronics part category page.
Price & Stock for 6N135-X017T
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
43K9783
|
Newark | Npn-Output Dc-Input Optocoupler,1-Channel,5.3Kv Isolation, so |Vishay 6N135-X017T RoHS: Not Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.5710 / $0.7430 | Buy Now |
|
DISTI #
6N135-X017T
|
Avnet Americas | SMD-8 CPLR CTR>7% 1Mdb VDE -e3 - Tape and Reel (Alt: 6N135-X017T) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 111 Weeks, 0 Days Container: Reel | 0 |
|
$0.5146 / $0.5860 | Buy Now |
|
DISTI #
782-6N135-X017T
|
Mouser Electronics | High Speed Optocouplers 1Mbd High-Speed Trans Out CTR>16% RoHS: Compliant | 962 |
|
$0.5970 / $1.6300 | Buy Now |
|
DISTI #
6N135-X017T
|
TTI | High Speed Optocouplers 1Mbd High-Speed Trans Out CTR>16% RoHS: Compliant pbFree: Pb-Free Min Qty: 1000 Package Multiple: 1000 Container: Reel | Americas - 0 |
|
$0.5360 / $0.6140 | Buy Now |
|
DISTI #
6N135-X017T
|
EBV Elektronik | SMD8 CPLR CTR7 1Mdb VDE e3 (Alt: 6N135-X017T) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 10 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for 6N135-X017T
6N135-X017T CAD Models
6N135-X017T Part Data Attributes
|
|
6N135-X017T
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
6N135-X017T
Vishay Intertechnologies
IC Output Optocoupler, 1-Channel, 1-Element, 5300V Isolation, 1MBps, ROHS COMPLIANT, SMD, 8 PIN
|
| Rohs Code | Yes | |
| Part Life Cycle Code | End Of Life | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | ROHS COMPLIANT, SMD, 8 PIN | |
| Reach Compliance Code | unknown | |
| Factory Lead Time | 111 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | TTL COMPATIBLE, UL RECOGNIZED, VDE APPROVED | |
| Configuration | SINGLE | |
| Current Transfer Ratio-Min | 5% | |
| Data Rate-Nom | 1 MBps | |
| Forward Current-Max | 0.025 A | |
| Forward Voltage-Max | 1.9 V | |
| Isolation Voltage-Max | 5300 V | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Elements | 1 | |
| Number of Functions | 1 | |
| On-State Current-Max | 0.008 A | |
| Operating Temperature-Max | 100 °C | |
| Operating Temperature-Min | -55 °C | |
| Power Dissipation-Max | 0.1 W | |
| Surface Mount | YES |
6N135-X017T Frequently Asked Questions (FAQ)
-
The recommended operating temperature range for the 6N135-X017T is -40°C to 100°C, although it can withstand storage temperatures from -40°C to 150°C.
-
To ensure reliable operation in high-temperature environments, it's essential to follow proper PCB design and layout guidelines, provide adequate heat sinking, and consider derating the device's current and voltage ratings according to the datasheet.
-
The maximum allowable voltage for the 6N135-X017T's input diode is 5.5V, although it's recommended to operate within the specified voltage range of 3.5V to 5.5V for reliable operation.
-
While the 6N135-X017T is suitable for high-frequency applications, its bandwidth is limited to around 10 kHz. For higher-frequency applications, consider using a faster optocoupler or a different type of isolation device.
-
To handle ESD protection for the 6N135-X017T, follow proper handling and storage procedures, use ESD-protective packaging and materials, and consider adding external ESD protection devices or circuits to the PCB design.
