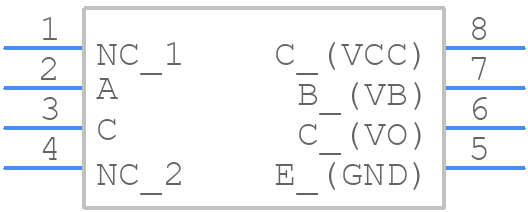

Part Symbol
-

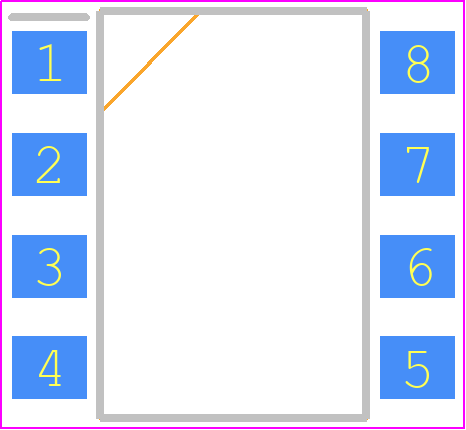

Footprint
-

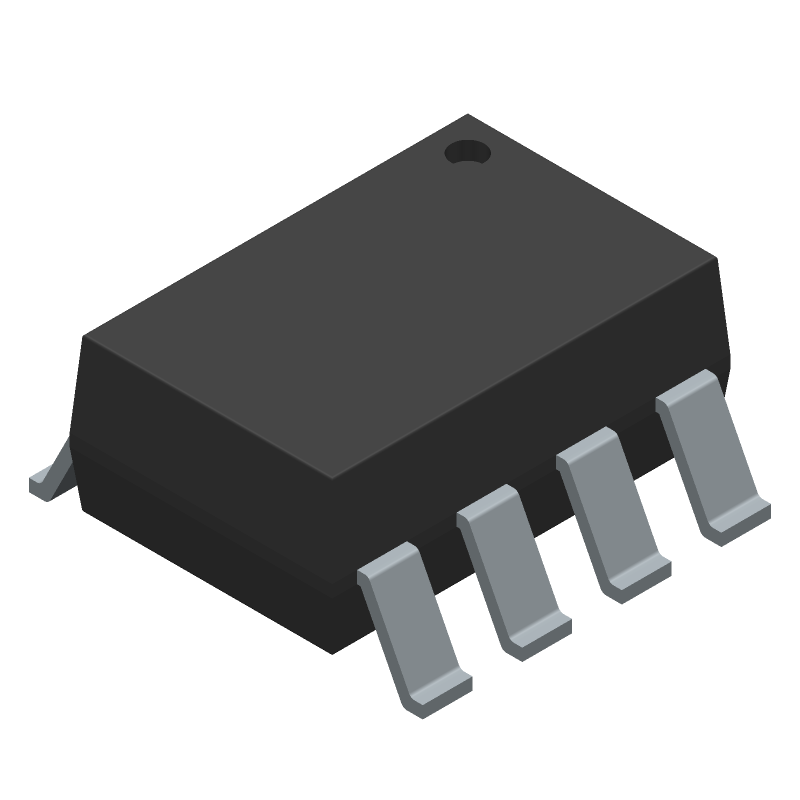

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 6N135-X007T by Vishay Intertechnologies
Results Overview of 6N135-X007T by Vishay Intertechnologies
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Energy and Power Systems
Renewable Energy
Automotive
6N135-X007T Information
6N135-X007T by Vishay Intertechnologies is an Optocoupler.
Optocoupler are under the broader part category of Optoelectronics.
Optoelectronic components work to detect, generate, and control light. They can essentially produce and/or react to light. Read more about Optoelectronics on our Optoelectronics part category page.
Price & Stock for 6N135-X007T
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
43K9781
|
Newark | Npn-Output Dc-Input Optocoupler,1-Channel,5.3Kv Isolation, so |Vishay 6N135-X007T RoHS: Not Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.5440 / $0.7080 | Buy Now |
|
DISTI #
6N135-X007T
|
Avnet Americas | SMD-8 CPLR CTR>7% 1Mdb -e3 - Tape and Reel (Alt: 6N135-X007T) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 111 Weeks, 0 Days Container: Reel | 0 |
|
$0.4812 / $0.5210 | Buy Now |
|
DISTI #
782-6N135-X007T
|
Mouser Electronics | High Speed Optocouplers 1Mbd High-Speed Trans Out CTR>16% RoHS: Compliant | 0 |
|
$0.6790 / $1.5700 | Order Now |
|
DISTI #
6N135-X007T
|
TTI | High Speed Optocouplers 1Mbd High-Speed Trans Out CTR>16% RoHS: Compliant pbFree: Pb-Free Min Qty: 1000 Package Multiple: 1000 Container: Reel | Americas - 0 |
|
$0.5110 / $0.5430 | Buy Now |
|
DISTI #
6N135-X007T
|
TME | Optocoupler, SMD, Ch: 1, OUT: transistor, Uinsul: 5.3kV, 1Mbps, SMD8 Min Qty: 1 | 0 |
|
$0.4620 / $0.7500 | RFQ |
|
DISTI #
SMC-6N135-X007T
|
Sensible Micro Corporation | AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days | 907 |
|
RFQ | |
|
DISTI #
6N135-X007T
|
EBV Elektronik | SMD8 CPLR CTR7 1Mdb e3 (Alt: 6N135-X007T) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 10 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
New Advantage Corporation | SMD-8 CPLR CTR>7% 1MDB -E3 RoHS: Compliant Min Qty: 1 Package Multiple: 1000 | 1000 |
|
$0.5800 | Buy Now |
Part Details for 6N135-X007T
6N135-X007T CAD Models
6N135-X007T Part Data Attributes
|
|
6N135-X007T
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
6N135-X007T
Vishay Intertechnologies
Logic IC Output Optocoupler, 1-Element, 2500V Isolation, 1MBps, DIP-8
|
| Rohs Code | Yes | |
| Part Life Cycle Code | End Of Life | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | DIP-8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.40.80.00 | |
| Factory Lead Time | 111 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | OPEN COLLECTOR, UL RECOGNIZED | |
| Configuration | SINGLE | |
| Current Transfer Ratio-Min | 7% | |
| Data Rate-Nom | 1 MBps | |
| Forward Current-Max | 0.025 A | |
| Forward Voltage-Max | 1.9 V | |
| Isolation Voltage-Max | 2500 V | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Elements | 1 | |
| Number of Functions | 1 | |
| On-State Current-Max | 0.008 A | |
| Operating Temperature-Max | 100 °C | |
| Operating Temperature-Min | -55 °C | |
| Optoelectronic Device Type | LOGIC IC OUTPUT OPTOCOUPLER | |
| Power Dissipation-Max | 0.1 W | |
| Surface Mount | YES |
Alternate Parts for 6N135-X007T
This table gives cross-reference parts and alternative options found for 6N135-X007T. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 6N135-X007T, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 6N135-X007T | Siemens | Check for Price | Logic IC Output Optocoupler, 1-Element, 2500V Isolation, 1MBps, DIP-8 | 6N135-X007T vs 6N135-X007T |
6N135-X007T Frequently Asked Questions (FAQ)
-
The recommended operating temperature range for the 6N135-X007T is -40°C to 100°C, although it can withstand storage temperatures from -40°C to 150°C.
-
To ensure reliable operation in high-temperature environments, it's essential to follow proper PCB design and layout guidelines, provide adequate heat sinking, and consider derating the device's current and voltage ratings according to the datasheet.
-
The maximum allowable voltage for the 6N135-X007T's input LED is 5.5V, although the recommended operating voltage is 1.2V to 1.4V for optimal performance.
-
While the 6N135-X007T is not specifically designed for high-frequency applications, it can be used up to 1 MHz with some limitations. However, it's essential to consider the device's bandwidth, rise time, and fall time when designing high-frequency circuits.
-
To choose the correct current-limiting resistor, calculate the resistor value based on the input voltage, LED forward voltage, and desired LED current. A general rule of thumb is to use a resistor value that limits the LED current to 10mA to 20mA for optimal performance.
