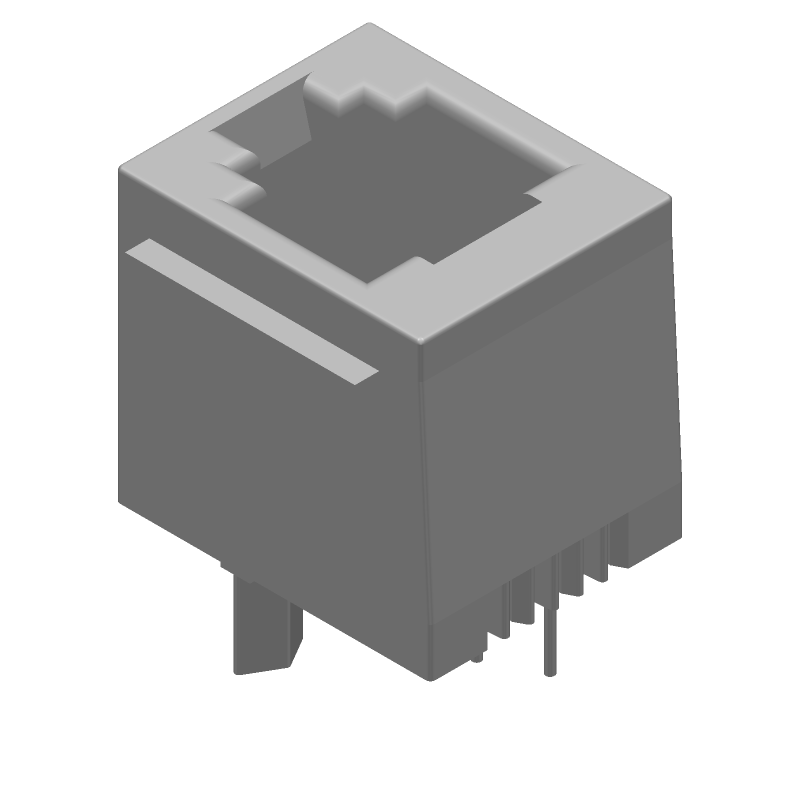

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 69254-003LF by Amphenol Communications Solutions
Results Overview of 69254-003LF by Amphenol Communications Solutions
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (5 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
69254-003LF Information
69254-003LF by Amphenol Communications Solutions is a Telecom and Datacom Connector.
Telecom and Datacom Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for 69254-003LF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
609-69254-003LF-ND
|
DigiKey | CONN MOD JACK 6P2C VERT UNSHLD Min Qty: 1 Lead time: 6 Weeks Container: Tube |
1335 In Stock |
|
$0.4404 / $0.7700 | Buy Now |
Part Details for 69254-003LF
69254-003LF CAD Models
69254-003LF Part Data Attributes
|
|
69254-003LF
Amphenol Communications Solutions
Buy Now
Datasheet
|
Compare Parts:
69254-003LF
Amphenol Communications Solutions
Modular Jack, Input Output Connectors, Cat 3, Vertical, Through Mount, Unshielded Diamond Peg, 6 Positions, 1 Port
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | AMPHENOL COMMUNICATIONS SOLUTIONS | |
| Package Description | LEAD FREE | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.69.40.30 | |
| Samacsys Manufacturer | Amphenol Communications Solutions | |
| Body/Shell Style | JACK | |
| Connector Type | RJ CONNECTOR | |
| Contact Finish Mating | NOT SPECIFIED | |
| Contact Finish Termination | NOT APPLICABLE | |
| Contact Gender | FEMALE | |
| Contact Material | NOT SPECIFIED | |
| DIN Conformance | NO | |
| Empty Shell | NO | |
| Filter Feature | NO | |
| IEC Conformance | NO | |
| MIL Conformance | NO | |
| Mixed Contacts | NO | |
| Mounting Style | STRAIGHT | |
| Mounting Type | BOARD | |
| Option | GENERAL PURPOSE | |
| Termination Type | SOLDER | |
| Total Number of Contacts | 2 |
Alternate Parts for 69254-003LF
This table gives cross-reference parts and alternative options found for 69254-003LF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 69254-003LF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 69253-001LF | Amphenol FCi | $0.9271 | Telecom and Datacom Connector, 4 Contact(s), Female, Straight, Solder Terminal, Locking, Jack, LEAD FREE | 69254-003LF vs 69253-001LF |
| 69254-001LF | Amphenol FCi | $1.0373 | Telecom and Datacom Connector, 6 Contact(s), Female, Straight, Solder Terminal, Jack, LEAD FREE | 69254-003LF vs 69254-001LF |
| 69254-002 | Amphenol FCi | Check for Price | Telecom and Datacom Connector, 4 Contact(s), Female, Straight, Solder Terminal, Locking, Jack, | 69254-003LF vs 69254-002 |
| 69253-001 | Amphenol Communications Solutions | Check for Price | Telecom and Datacom Connector, 4 Contact(s), Female, Straight, Solder Terminal, Locking, Jack, | 69254-003LF vs 69253-001 |
| 69254-003 | Amphenol Communications Solutions | Check for Price | Telecom and Datacom Connector, 2 Contact(s), Female, Straight, Solder Terminal, Locking, Jack, | 69254-003LF vs 69254-003 |
