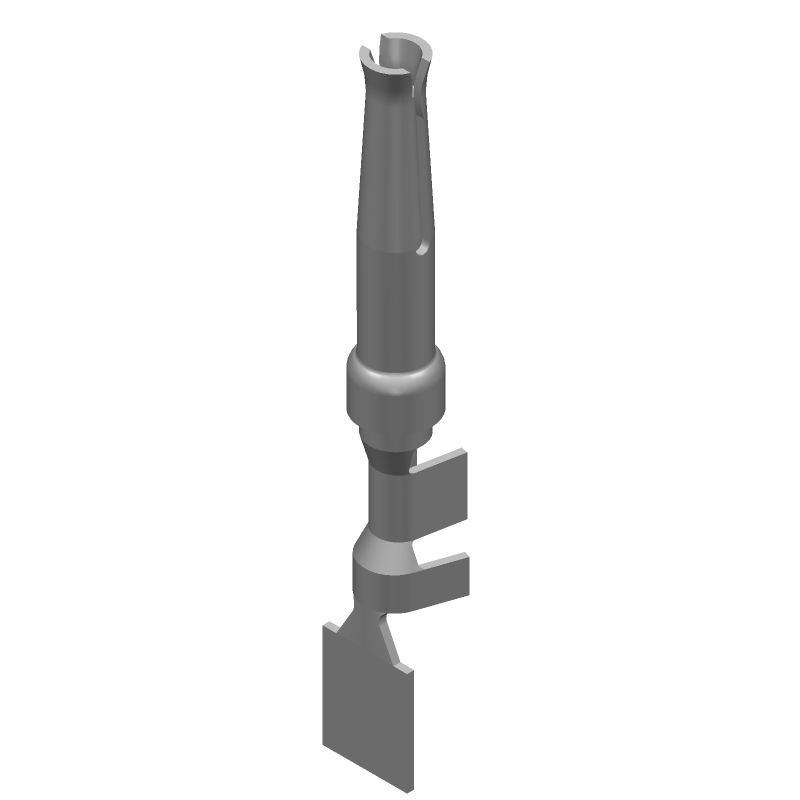

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 66504-3 by TE Connectivity
Results Overview of 66504-3 by TE Connectivity
- Distributor Offerings: (34 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Price & Stock for 66504-3
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
90F3591
|
Newark | Contact, Socket, 24-20Awg, Crimp, For Use With:Cpc Connectors, Amplimite Hdp-20, Contact Gender:Socket, Contact Material:Phosphor Bronze, Contact Plating:Gold Plated Contacts, Wire Size Awg Max:20Awg, Wire Size Awg Min:24Awg Rohs Compliant: Yes |Amp Te Connectivity 66504-3 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 23415 |
|
$0.1520 / $0.3060 | Buy Now |
|
DISTI #
13N4086
|
Newark | Contact, Socket, 24-20Awg, Crimp, Full Reel, For Use With:Cpc Connectors, Amplimite Hdp-20, Contact Gender:Socket, Contact Material:Phosphor Bronze, Contact Plating:Gold Plated Contacts, Wire Size Awg Max:20Awg, Contact Type:Stamped Rohs Compliant: Yes |Amp Te Connectivity 66504-3 RoHS: Compliant Min Qty: 40000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.1480 | Buy Now |
|
DISTI #
A1680CT-ND
|
DigiKey | CONN SOCKET 20-24AWG GOLD CRIMP Min Qty: 1 Lead time: 9 Weeks Container: Cut Tape (CT), Tape & Reel (TR) |
73650 In Stock |
|
$0.1364 / $0.3000 | Buy Now |
|
DISTI #
66504-3
|
Avnet Americas | Contact Socket Crimp ST Cable Mount - Tape and Reel (Alt: 66504-3) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 11 Weeks, 5 Days Container: Reel | 100000 |
|
RFQ | |
|
DISTI #
90F3591
|
Avnet Americas | Contact Socket Crimp ST Cable Mount - Product that comes on tape, but is not reeled (Alt: 90F3591) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 1 Weeks, 4 Days Container: Ammo Pack | 23415 Partner Stock |
|
$0.1520 / $0.3000 | Buy Now |
|
DISTI #
571-665043-MR
|
Mouser Electronics | D-Sub Contacts CRIMP SOCKET 24-20 Reel of 1000 RoHS: Compliant | 27000 |
|
$0.1320 / $0.1360 | Buy Now |
|
DISTI #
571-665043-CT
|
Mouser Electronics | D-Sub Contacts CRIMP SOCKET 24-20 Cut Strip of 100 RoHS: Compliant | 22200 |
|
$0.1910 | Buy Now |
|
DISTI #
V36:1790_07459960
|
Arrow Electronics | Contact SKT 20 Size Crimp ST Cable Mount 20-24AWG Reel RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 12 Weeks Date Code: 2038 | Americas - 660000 |
|
Buy Now | |
|
DISTI #
V36:1790_14507987
|
Arrow Electronics | Contact SKT 20 Size Crimp ST Cable Mount 20-24AWG Reel RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 12 Weeks Date Code: 1716 | Americas - 17500 |
|
$0.1364 / $0.1450 | Buy Now |
|
DISTI #
V72:2272_07459960
|
Arrow Electronics | Contact SKT 20 Size Crimp ST Cable Mount 20-24AWG Reel RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2224 Container: Cut Strips | Americas - 11780 |
|
$0.1465 | Buy Now |
Part Details for 66504-3
66504-3 CAD Models
66504-3 Part Data Attributes
|
|
66504-3
TE Connectivity
Buy Now
Datasheet
|
Compare Parts:
66504-3
TE Connectivity
20 DF SCKT CONT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TE CONNECTIVITY LTD | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.90.40.00 | |
| Factory Lead Time | 1 Week, 4 Days | |
| Samacsys Manufacturer | TE Connectivity | |
| Assembly Item Name | CONTACT | |
| Cable Entry-Max | 0.06 inch | |
| Cable Entry-Min | 0.05 inch | |
| Connector Support Type | CONNECTOR ACCESSORY | |
| Contact Gender | FEMALE | |
| Contact Style | RND PIN-SKT | |
| Cross Section Area | 0.6 mm2 | |
| DIN Conformance | NO | |
| Design Use | SIGNAL | |
| Finish Thickness | 30 | |
| IEC Conformance | NO | |
| MIL Conformance | NO | |
| Material | PHOSPHOR BRONZE | |
| Mounting Style | STRAIGHT | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -55 °C | |
| Rated Current | 2 A | |
| Terminal Length | 0.185 inch | |
| Terminal Type | CRIMP | |
| Used With | CPC CONNECTORS, AMPLIMITE HDP-20 | |
| Wire Gauge | 20 AWG | |
| Wire Size-Max | 20 AWG | |
| Wire Size-Min | 24 AWG |
