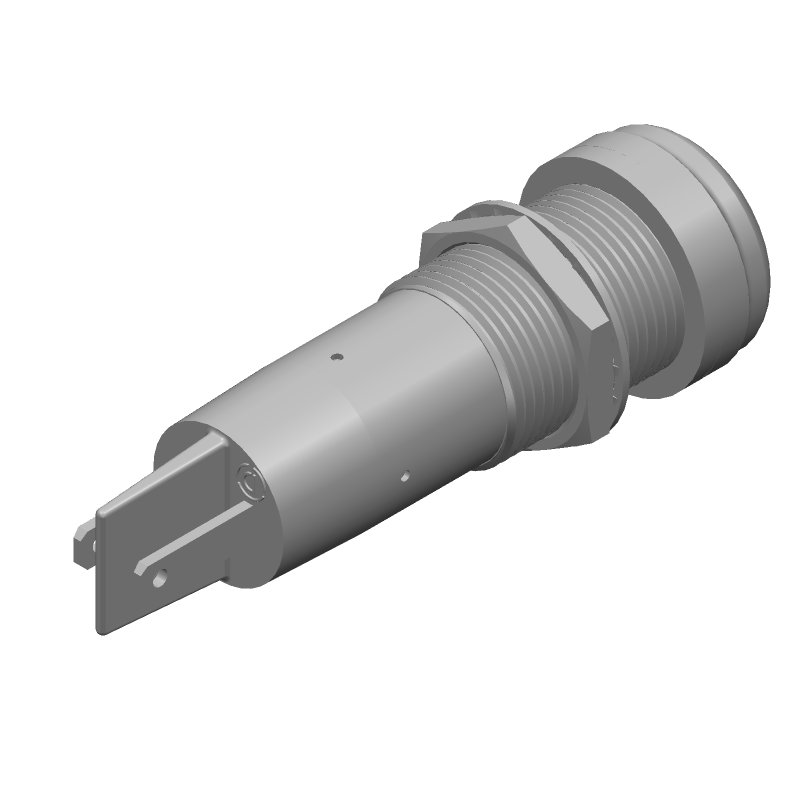

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 656-1108-304F by Dialight
Results Overview of 656-1108-304F by Dialight
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
656-1108-304F Information
656-1108-304F by Dialight is a Visible LED.
Visible LEDs are under the broader part category of Optoelectronics.
Optoelectronic components work to detect, generate, and control light. They can essentially produce and/or react to light. Read more about Optoelectronics on our Optoelectronics part category page.
Price & Stock for 656-1108-304F
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
645-656-1108-304F
|
Mouser Electronics | LED Panel Mount Indicators 1/2 Flat Red 37.5VDC w/Terminals RoHS: Compliant | 0 |
|
$12.7600 / $15.8500 | Order Now |
|
DISTI #
71253875
|
RS | Panel Mount Indicator LED Flat Red Blade Terminals 37.5 VDC 656 Series Min Qty: 1 Package Multiple: 1 Container: Bulk | 1 |
|
$11.9500 / $14.9400 | Buy Now |
|
|
Onlinecomponents.com | 656 Series 1/2" FLT RED 37.5VDC W/TERM RoHS: Compliant |
47 In Stock |
|
$12.9100 / $19.4000 | Buy Now |
|
DISTI #
656-1108-304F
|
TTI | LED Panel Mount Indicators 1/2 Flat Red 37.5VDC w/Terminals RoHS: Compliant pbFree: Pb-Free Min Qty: 55 Package Multiple: 1 Container: Bulk | Americas - 0 |
|
$11.9800 / $12.7100 | Buy Now |
|
DISTI #
000000000005770705
|
Sager | LED Panel Mount Indicators 1/2 Flat Red 37.5VDC w/Terminals Min Qty: 55 | 0 |
|
$13.1600 / $14.1000 | Buy Now |
|
|
Master Electronics | 656 Series 1/2" FLT RED 37.5VDC W/TERM RoHS: Compliant |
47 In Stock |
|
$12.9100 / $19.4000 | Buy Now |
Part Details for 656-1108-304F
656-1108-304F CAD Models
656-1108-304F Part Data Attributes
|
|
656-1108-304F
Dialight
Buy Now
Datasheet
|
Compare Parts:
656-1108-304F
Dialight
Single Color LED,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | DIALIGHT CORP | |
| Reach Compliance Code | compliant | |
| HTS Code | 8541.40.20.00 | |
| Date Of Intro | 2018-07-18 | |
| Samacsys Manufacturer | Dialight | |
| Additional Feature | UL RECOGNIZED | |
| Color | RED | |
| Configuration | SINGLE | |
| Forward Current-Max | 0.0085 A | |
| Forward Voltage-Max | 37.5 V | |
| Lens Type | TRANSPARENT | |
| Luminous Intensity-Nom | 230.0 mcd | |
| Mounting Feature | RADIAL MOUNT | |
| Number of Functions | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 100 °C | |
| Operating Temperature-Min | -40 °C | |
| Optoelectronic Device Type | SINGLE COLOR LED | |
| Packing Method | BULK | |
| Shape | CYLINDRICAL | |
| Size | 16.51 mm | |
| Surface Mount | NO |
