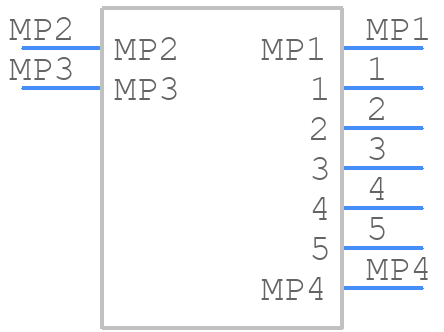

Part Symbol
-

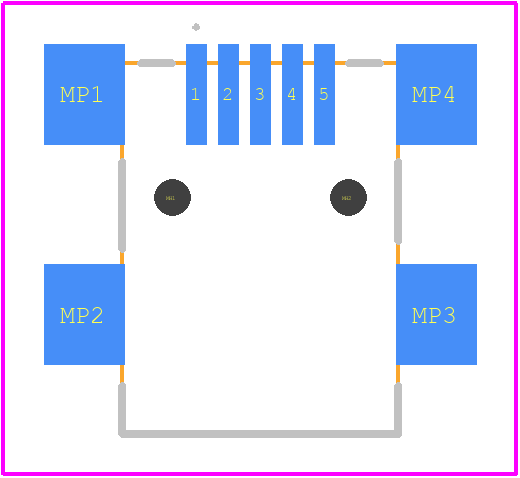

Footprint
-

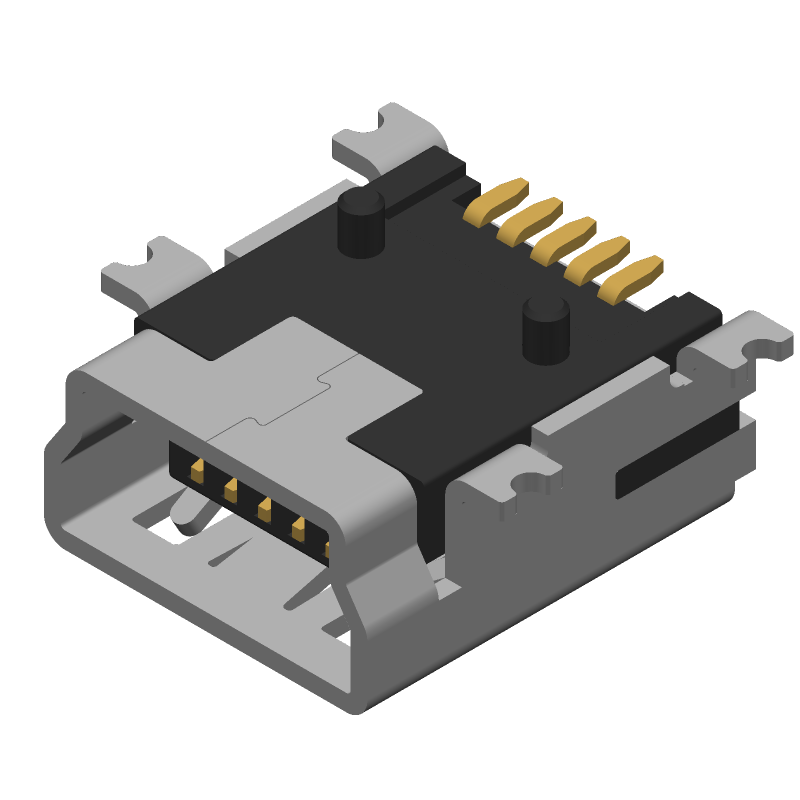

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 65100516121 by Wurth Elektronik
Results Overview of 65100516121 by Wurth Elektronik
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (3 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Space Technology
Aerospace and Defense
Telecommunications
65100516121 Information
65100516121 by Wurth Elektronik is a Telecom and Datacom Connector.
Telecom and Datacom Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for 65100516121
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
19P1304
|
Newark | Mini Usb, 2.0 Type B, Receptacle, Smt, Usb Connector Type:Mini Usb Type B, Usb Standard:Usb 2.0, Gender:Receptacle, No. Of Positions:5Positions, Connector Mounting:Surface Mount, Orientation:Right Angle, Contact Material:Copper Alloyrohs Compliant: Yes |Wurth Elektronik 65100516121 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 2178 |
|
$1.2500 / $1.6500 | Buy Now |
|
DISTI #
732-2109-1-ND
|
DigiKey | CONN RCPT USB2.0 MINI B SMD R/A Min Qty: 1 Lead time: 13 Weeks Container: Digi-Reel®, Tape & Reel (TR), Cut Tape (CT) |
3332 In Stock |
|
$0.8850 / $1.4100 | Buy Now |
|
DISTI #
710-65100516121
|
Mouser Electronics | USB Connectors WR-COM Type B SMT 5Pin Horztl Fml Mini RoHS: Compliant | 2264 |
|
$1.0100 / $1.4100 | Buy Now |
|
DISTI #
71071441
|
RS | WR-COM Series Right Angle SMT Type B Mini USB Connector Receptacle, 30 V ac, 1A Min Qty: 1 Package Multiple: 1 Lead time: 4 Weeks, 0 Days Container: Bulk | 0 |
|
$1.1300 / $1.4200 | RFQ |
|
|
Chip-Germany GmbH | RoHS: Not Compliant | 24 |
|
RFQ | |
|
|
Component Electronics, Inc | IN STOCK SHIP TODAY | 496 |
|
$0.5000 / $0.7700 | Buy Now |
|
|
Vyrian | Connectors | 2135 |
|
RFQ |
Part Details for 65100516121
65100516121 CAD Models
65100516121 Part Data Attributes
|
|
65100516121
Wurth Elektronik
Buy Now
Datasheet
|
Compare Parts:
65100516121
Wurth Elektronik
Telecom and Datacom Connector, 5 Contact(s), Female, Right Angle, Surface Mount Terminal, Locking, Receptacle, ROHS COMPLIANT
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | WUERTH ELEKTRONIK GMBH & CO KG | |
| Package Description | ROHS COMPLIANT | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.69.40.30 | |
| Samacsys Manufacturer | Würth Elektronik | |
| Additional Feature | SHIELDED | |
| Body Breadth | 0.154 inch | |
| Body Depth | 0.364 inch | |
| Body Length | 0.378 inch | |
| Body/Shell Style | RECEPTACLE | |
| Connector Type | USB CONNECTOR | |
| Contact Finish Mating | NOT APPLICABLE | |
| Contact Finish Termination | Gold (Au) | |
| Contact Gender | FEMALE | |
| Contact Material | NOT APPLICABLE | |
| Contact Resistance | 20 mΩ | |
| Contact Style | USB, SER B SQ | |
| DIN Conformance | NO | |
| Dielectric Withstanding Voltage | 750VAC V | |
| Durability | 1500 Cycles | |
| Empty Shell | NO | |
| Filter Feature | NO | |
| IEC Conformance | NO | |
| Insulation Resistance | 1000000000 Ω | |
| Insulator Material | LIQUID CRYSTAL POLYMER | |
| JESD-609 Code | e4 | |
| MIL Conformance | NO | |
| Mixed Contacts | NO | |
| Mounting Option 1 | LOCKING | |
| Mounting Style | RIGHT ANGLE | |
| Mounting Type | BOARD | |
| Number Of Connectors | ONE | |
| Number Of PCB Rows | 1 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Option | GENERAL PURPOSE | |
| PCB Contact Pattern | RECTANGULAR | |
| Polarization Key | POLARIZED HOUSING | |
| Rated Current (Signal) | 1 A | |
| Reference Standard | UL | |
| Shell Finish | NICKEL | |
| Shell Material | BRASS | |
| Terminal Pitch | 0.7874 mm | |
| Termination Type | SURFACE MOUNT | |
| Total Number of Contacts | 5 | |
| UL Flammability Code | 94V-0 |
Alternate Parts for 65100516121
This table gives cross-reference parts and alternative options found for 65100516121. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 65100516121, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 67503-0230 | Molex | Check for Price | Telecom and Datacom Connector, 5 Contact(s), Female, Right Angle, Surface Mount Terminal, Detent, Receptacle | 65100516121 vs 67503-0230 |
| 47153-1001 | Molex | Check for Price | USB Connector, 5 Contact(s), Female, Right Angle, Surface Mount Terminal, Locking, Receptacle, | 65100516121 vs 47153-1001 |
| 56579-0579 | Molex | Check for Price | Telecom and Datacom Connector, 5 Contact(s), Female, Right Angle, Surface Mount Terminal, Detent, Receptacle, LEAD FREE | 65100516121 vs 56579-0579 |
65100516121 Frequently Asked Questions (FAQ)
-
The recommended PCB footprint for the 65100516121 can be found in the Wurth Elektronik's PCB Library or in the component's 3D model. It's essential to follow the recommended footprint to ensure proper assembly and to prevent thermal and electrical issues.
-
The 65100516121 has a high power density, so thermal management is crucial. Ensure good airflow around the component, use a heat sink if necessary, and follow the recommended thermal interface material (TIM) and thermal pad layout.
-
The maximum operating temperature range for the 65100516121 is -40°C to +125°C. However, it's essential to consider the derating curves and thermal management to ensure reliable operation within the specified temperature range.
-
The 65100516121 is designed to withstand moderate vibrations. However, it's essential to consider the specific vibration requirements of your application and ensure that the component is properly secured to the PCB to prevent mechanical stress.
-
To ensure EMC, follow proper PCB layout guidelines, use shielding if necessary, and ensure that the component is properly decoupled from the power supply. Additionally, consider using electromagnetic interference (EMI) filters or common-mode chokes if required.
