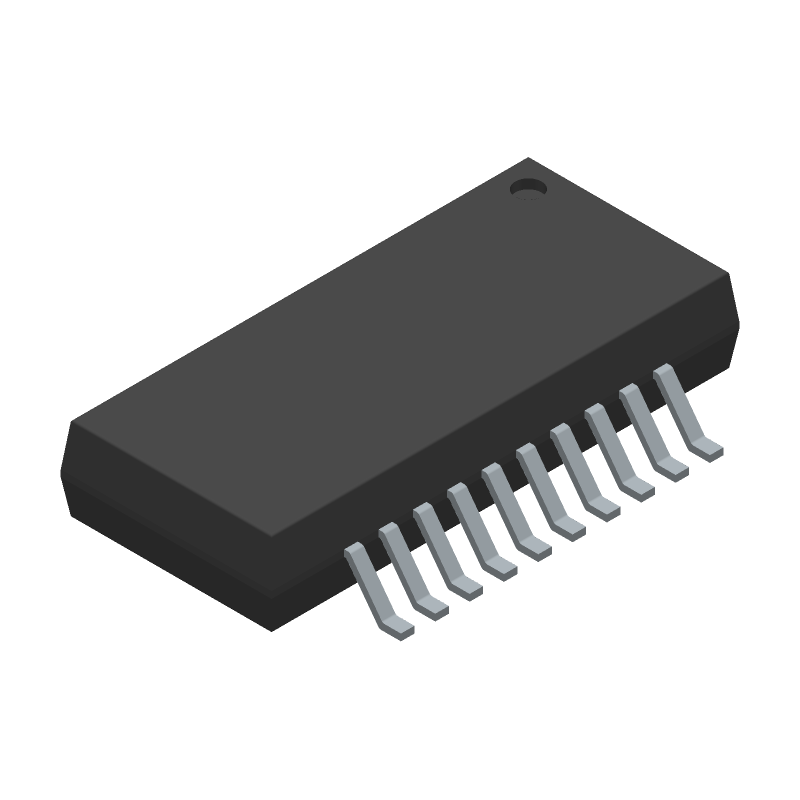

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 650R-01LF by Renesas Electronics Corporation
Results Overview of 650R-01LF by Renesas Electronics Corporation
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
650R-01LF Information
650R-01LF by Renesas Electronics Corporation is a Clock Generator.
Clock Generators are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| BQ24650RVAR | Texas Instruments | High efficiency synchronous switch-mode charger controller - solar battery charger 16-VQFN -40 to 85 | |
| BQ24650RVAT | Texas Instruments | High efficiency synchronous switch-mode charger controller - solar battery charger 16-VQFN -40 to 85 | |
| TPS59650RSLT | Texas Instruments | Dual Channel (3-Phase CPU / 2-Phase GPU) SVID, D-CAP+TM Step-Down Controller 48-VQFN -40 to 105 |
Price & Stock for 650R-01LF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
650R-01LF
|
Avnet Americas | System Peripheral Clock Source - Rail/Tube (Alt: 650R-01LF) RoHS: Compliant Min Qty: 125 Package Multiple: 1 Lead time: 0 Weeks, 2 Days Container: Tube | 6814 Partner Stock |
|
$5.3200 / $5.8000 | Buy Now |
|
DISTI #
650R-01LF
|
Avnet Silica | System Peripheral Clock Source (Alt: 650R-01LF) RoHS: Compliant Min Qty: 165 Package Multiple: 55 Lead time: 143 Weeks, 0 Days | Silica - 0 |
|
Buy Now |
Part Details for 650R-01LF
650R-01LF CAD Models
650R-01LF Part Data Attributes
|
|
650R-01LF
Renesas Electronics Corporation
Buy Now
Datasheet
|
Compare Parts:
650R-01LF
Renesas Electronics Corporation
System Peripheral Clock Source, QSOP55/Tube
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | RENESAS ELECTRONICS CORP | |
| Part Package Code | QSOP | |
| Package Description | SSOP-20 | |
| Pin Count | 20 | |
| Manufacturer Package Code | PCG20 | |
| Reach Compliance Code | compliant | |
| ECCN Code | NLR | |
| HTS Code | 8542390001 | |
| Factory Lead Time | 2 Days | |
| Samacsys Manufacturer | Renesas Electronics | |
| JESD-30 Code | R-PDSO-G20 | |
| JESD-609 Code | e3 | |
| Length | 8.65 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Terminals | 20 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Output Clock Frequency-Max | 80 MHz | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SSOP | |
| Package Equivalence Code | SSOP20,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Primary Clock/Crystal Frequency-Nom | 14.31818 MHz | |
| Seated Height-Max | 1.75 mm | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 3 V | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Terminal Finish | TIN | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.635 mm | |
| Terminal Position | DUAL | |
| Width | 3.9 mm | |
| uPs/uCs/Peripheral ICs Type | CLOCK GENERATOR, PROCESSOR SPECIFIC |
