Connectors / Headers and Edge Type Connectors / 641199-5
Datasheets
641199-5 by:
TE Connectivity

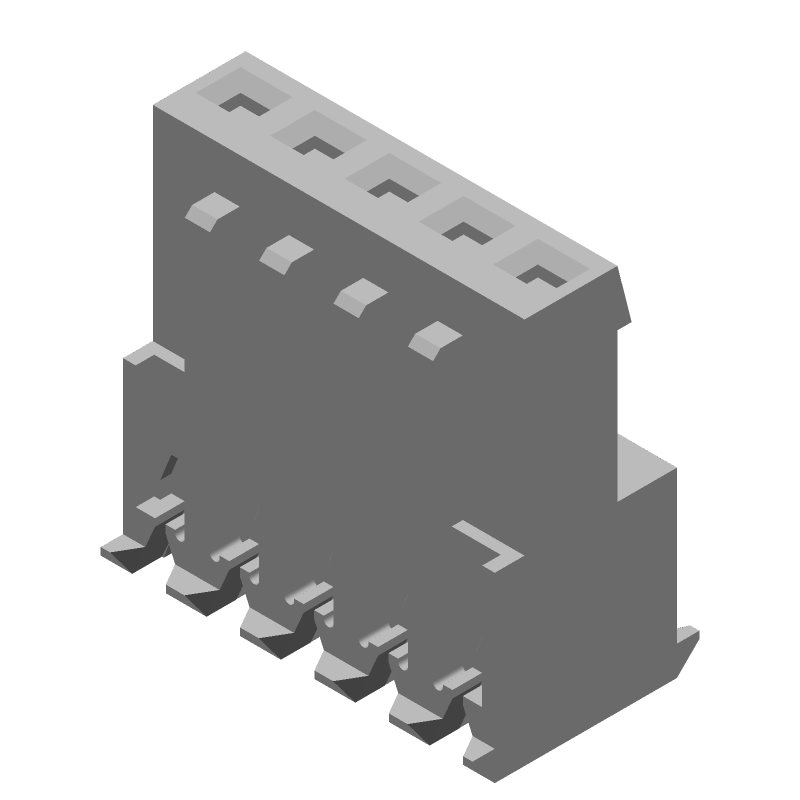

Board Connector, 5 Contact(s), 1 Row(s), Female, 0.1 inch Pitch, IDC Terminal, White Insulator, Receptacle

Part Details for 641199-5 by TE Connectivity

Results Overview of 641199-5 by TE Connectivity

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

641199-5 Information

641199-5 by TE Connectivity is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for 641199-5

Part # Distributor Description Stock Price Buy
DISTI # 37M1457
Newark 05P Mta100 Conn Assy Wht 15Au |Amp Te Connectivity 641199-5 RoHS: Not Compliant Min Qty: 12500 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 2,500 $1.3500
$1.3500 Buy Now
DISTI # A128961-ND
DigiKey 05P MTA100 CONN ASSY WHT 15AU Min Qty: 1 Lead time: 28 Weeks Container: Bulk 1244
In Stock
  • 1 $2.6900
  • 10 $2.2840
  • 100 $1.9408
  • 500 $1.7324
  • 1,000 $1.6497
  • 5,000 $1.4728
$1.4728 / $2.6900 Buy Now
DISTI # 641199-5
Avnet Americas Conn IDC Connector F 5 POS 2.54mm IDT RA Cable Mount Loose Piece - Bag (Alt: 641199-5) RoHS: Compliant Min Qty: 12500 Package Multiple: 2500 Lead time: 28 Weeks, 0 Days Container: Bag 0
  • 12,500 $1.2838
  • 17,500 $1.2772
  • 30,000 $1.2707
  • 62,500 $1.2642
  • 125,000 $1.2576
$1.2576 / $1.2838 Buy Now
DISTI # 571-641199-5
Mouser Electronics Headers & Wire Housings 05P MTA100 CONN ASSY WHT 15AU RoHS: Compliant 146
  • 1 $2.6200
  • 10 $2.1900
  • 100 $1.7900
  • 500 $1.5400
  • 1,000 $1.4500
  • 5,000 $1.3600
$1.3600 / $2.6200 Buy Now
TE Connectivity 05P MTA100 CONN ASSY WHT 15AU Number of Positions: 5 Connector & Housing Type: Receptacle Connector Product Type: Connector Assembly Mating Alignment: Without Mating Retention: With Nylon Gold Plated Receptacle: 2.54 Mm & Mating Alignment | 5 Receptacle Connector Assembly Without | Part Number: 641199-5 | Internal Number: 641199-5 | TE Connectivity RoHS: Compliant Min Qty: 1 1244
  • 1 $3.7500
  • 10 $2.9700
  • 100 $2.4100
  • 1,000 $1.7900
$1.7900 / $3.7500 Buy Now
DISTI # AMP641199-5
Heilind Electronics 05P MTA100 CONN ASSY WHT 15AU Americas - 0 in Stock
  • 12,500 $1.4891
$1.4891 Buy Now
Onlinecomponents.com 05P MTA100 CONN ASSY WHT 15AU RoHS: Compliant 0
  • 3,125 $3.7700
  • 6,250 $1.9200
  • 9,375 $1.3100
  • 12,500 $1.2800
$1.2800 / $3.7700 Buy Now
Future Electronics 5 Position Rectangular Receptacle Connector IDC Gold 24 AWG Min Qty: 500 Package Multiple: 500 2500
null
  • 500 $1.0400
  • 1,000 $1.0200
  • 1,500 $1.0100
  • 2,000 $0.9950
$0.9950 / $1.0400 Buy Now
DISTI # AMP641199-5
Interstate Connecting Components 05P MTA100 CONN ASSY WHT 15AU 0
  • 12,500 $1.4891
$1.4891 Buy Now
DISTI # 000000000000941881
Sager Headers & Wire Housings 05P MTA100 CONN ASSY WHT 15AU Min Qty: 2500 0
  • 2,500 $1.6900
$1.6900 Buy Now
DISTI # 641199-5
Avnet Abacus Conn IDC Connector F 5 POS 254mm IDT RA Cable Mount Loose Piece (Alt: 641199-5) RoHS: Compliant Min Qty: 12500 Package Multiple: 2500 Lead time: 37 Weeks, 0 Days Abacus - 0
Buy Now
Master Electronics 05P MTA100 CONN ASSY WHT 15AU RoHS: Compliant 0
  • 3,125 $3.7700
  • 6,250 $1.9200
  • 9,375 $1.3100
  • 12,500 $1.2800
$1.2800 / $3.7700 Buy Now

Part Details for 641199-5

641199-5 Part Data Attributes

Parametric Data
641199-5 TE Connectivity
Buy Now Datasheet
Compare Parts:
641199-5 TE Connectivity Board Connector, 5 Contact(s), 1 Row(s), Female, 0.1 inch Pitch, IDC Terminal, White Insulator, Receptacle
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TE CONNECTIVITY LTD
Reach Compliance Code compliant
Factory Lead Time 28 Weeks
Samacsys Manufacturer TE Connectivity
Additional Feature AMP
Body Breadth 0.305 inch
Body Depth 0.52 inch
Body Length 0.5 inch
Body/Shell Style RECEPTACLE
Cable Types STRANDED
Connector Type BOARD CONNECTOR
Contact Design PREASSEM CONN
Contact Finish Mating NOT APPLICABLE
Contact Gender FEMALE
Contact Material NOT APPLICABLE
Contact Pattern RECTANGULAR
Contact Resistance 6 mΩ
Contact Style SQ PIN-SKT
DIN Conformance NO
Durability 25 Cycles
EMI Shielded NO
Empty Shell YES
Filter Feature NO
IEC Conformance NO
Insertion Force-Max 8.896 N
Insulation Resistance 5000000000 Ω
Insulator Color WHITE
Insulator Material POLYAMIDE
JESD-609 Code e0
MIL Conformance NO
Mains Connector Rating 5A
Mating Contact Pitch 0.1 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts NO
Mounting Option 2 LOCKING
Mounting Type CABLE
Number Of Connectors ONE
Number of Ports 1
Number of Rows Loaded 1
Operating Temperature-Max 105 °C
Operating Temperature-Min -55 °C
Option GENERAL PURPOSE
Panel Mount NO
Plating Thickness 15u inch
Rated Current (Signal) 5 A
Reference Standard CSA, UL
Terminal Pitch 2.54 mm
Termination Type IDC
Total Number of Contacts 5
UL Flammability Code 94V-2
Wire Size-Max 24 AWG
Wire Size-Min 24 AWG
Withdrawl Force-Min 3.614 N

Alternate Parts for 641199-5

This table gives cross-reference parts and alternative options found for 641199-5. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 641199-5, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
641193-5 TE Connectivity Check for Price Board Connector, 5 Contact(s), 1 Row(s), Female, 0.1 inch Pitch, IDC Terminal, Green Insulator, Receptacle 641199-5 vs 641193-5
641198-5 TE Connectivity Check for Price Board Connector, 5 Contact(s), 1 Row(s), Female, 0.1 inch Pitch, IDC Terminal, Red Insulator, Receptacle 641199-5 vs 641198-5
641201-5 TE Connectivity Check for Price Board Connector, 5 Contact(s), 1 Row(s), Female, 0.1 inch Pitch, IDC Terminal, Green Insulator, Receptacle 641199-5 vs 641201-5

641199-5 Related Parts

641199-5 Frequently Asked Questions (FAQ)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure proper connection and prevent damage to the connector.

  • Yes, the 641199-5 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 standard for vibration resistance, making it suitable for use in applications such as rail, aerospace, and industrial equipment.

  • The 641199-5 connector has a IP67 rating, which means it is protected against dust and water ingress. However, it's essential to ensure proper sealing and protection of the connector when used in outdoor environments to maintain its performance and reliability.

  • The 641199-5 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.

  • While the 641199-5 connector is designed for use with 24 AWG wire, it can accommodate wire sizes between 20 AWG and 26 AWG. However, it's essential to ensure that the wire size and insulation meet the connector's specifications to maintain proper connection and reliability.
