62684-502100AHLF Information
62684-502100AHLF by Amphenol Communications Solutions is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| TPS62684YFFT | Texas Instruments | 1600-mA, High-Efficiency Step-Down Converter optimized for small solution size 6-DSBGA -40 to 85 | |
| TPS62684YFFR | Texas Instruments | 1600-mA, High-Efficiency Step-Down Converter optimized for small solution size 6-DSBGA -40 to 85 |
Price & Stock for 62684-502100AHLF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
26AK4588
|
Newark | Conn, Ffc/Fpc, R/A Rcpt, 50Pos, 1Row Rohs Compliant: Yes |Amphenol Communications Solutions 62684-502100AHLF RoHS: Compliant Min Qty: 2000 Package Multiple: 1 Date Code: 0 Container: Reel | 4000 |
|
$0.4190 / $0.4590 | Buy Now |
|
DISTI #
26AK4587
|
Newark | Conn, Ffc/Fpc, R/A Rcpt, 50Pos, 1Row Rohs Compliant: Yes |Amphenol Communications Solutions 62684-502100AHLF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 3356 |
|
$0.5500 / $0.7000 | Buy Now |
|
DISTI #
609-62684-502100AHLFCT-ND
|
DigiKey | CONN FPC TOP 50POS 0.5MM R/A Min Qty: 1 Lead time: 6 Weeks Container: Digi-Reel®, Tape & Reel (TR), Cut Tape (CT) |
44 In Stock |
|
$0.3538 / $0.7100 | Buy Now |
|
|
Onlinecomponents.com | 0.50mm Flex Connector - OPU Series - 50 Position - Side Entry - Upper Side Contact - Surface Mount - ZIF - Halogen free RoHS: Compliant |
6000 Partner Stock |
|
$0.3262 / $0.3724 | Buy Now |
|
DISTI #
62684-502100AHLF
|
IBS Electronics | 62684-502100AHLF , Amphenol ICC / FCI Min Qty: 2000 Package Multiple: 1 | 6000 |
|
$0.3650 / $0.4875 | Buy Now |
|
|
LCSC | Slide Lock -55+85 50P ContactTop Surface Mount 0.5mm SMDP0.5mmSurface MountRight Angle FFC FPC (Flat Flexible) Connector Assemblies ROHS | 3938 |
|
$0.4123 / $0.7743 | Buy Now |
|
|
Master Electronics | 0.50mm Flex Connector - OPU Series - 50 Position - Side Entry - Upper Side Contact - Surface Mount - ZIF - Halogen free RoHS: Compliant |
6000 Partner Stock |
|
$0.3262 / $0.3724 | Buy Now |
Part Details for 62684-502100AHLF

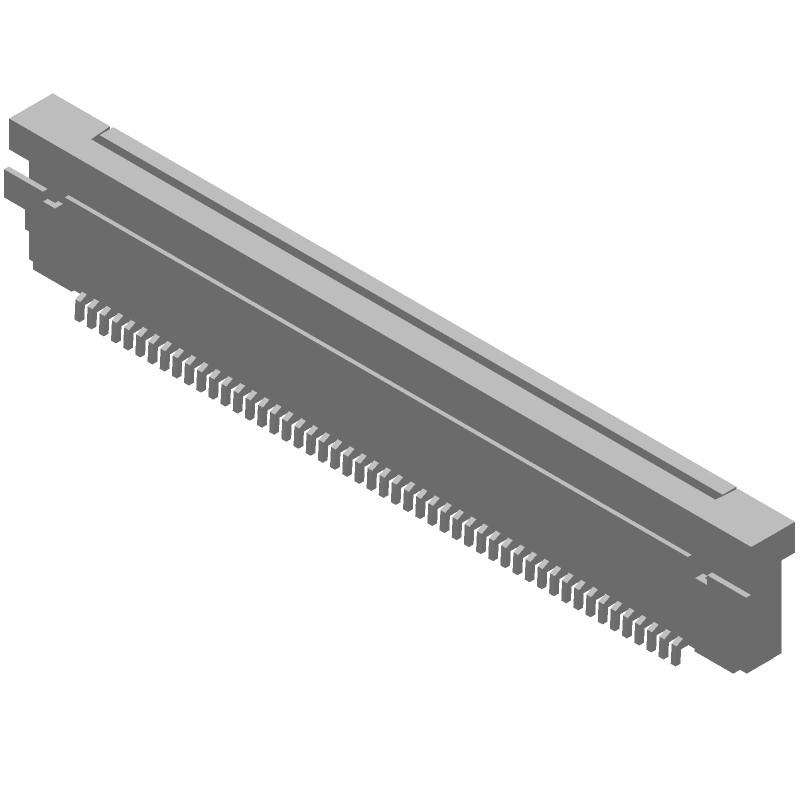

62684-502100AHLF CAD Models
62684-502100AHLF Part Data Attributes
|
|
62684-502100AHLF
Amphenol Communications Solutions
Buy Now
Datasheet
|
Compare Parts:
62684-502100AHLF
Amphenol Communications Solutions
0.50mm Flex Connector, OPU Series, 50 Position , Side Entry, Upper Side Contact, Surface Mount, ZIF, Halogen free
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | AMPHENOL COMMUNICATIONS SOLUTIONS | |
| Package Description | LEAD FREE | |
| Pin Count | 50 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | Amphenol Communications Solutions | |
| Connector Type | FFC/FPC CONNECTOR | |
| Contact Finish Mating | GOLD (2) OVER NICKEL | |
| Contact Finish Termination | GOLD OVER NICKEL | |
| Contact Gender | FEMALE | |
| DIN Conformance | NO | |
| Filter Feature | NO | |
| IEC Conformance | NO | |
| JESD-609 Code | e4 | |
| MIL Conformance | NO | |
| Mating Contact Pitch | 0.020 inch | |
| Mixed Contacts | NO | |
| Mounting Style | RIGHT ANGLE | |
| Mounting Type | BOARD | |
| Number Of Connectors | ONE | |
| Number of Rows Loaded | 1 | |
| Option | GENERAL PURPOSE | |
| Terminal Pitch | 0.5 mm | |
| Termination Type | SURFACE MOUNT | |
| Total Number of Contacts | 50 | |
| UL Flammability Code | 94V-0 |
Alternate Parts for 62684-502100AHLF
This table gives cross-reference parts and alternative options found for 62684-502100AHLF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 62684-502100AHLF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 54104-5031 | Molex | Check for Price | Card Edge Connector, 50 Contact(s), 1 Row(s), Female, Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking, White Insulator, ROHS AND REACH COMPLIANT | 62684-502100AHLF vs 54104-5031 |
| 54104-5096 | Molex | Check for Price | Card Edge Connector, 50 Contact(s), 1 Row(s), Female, Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking, LEAD FREE | 62684-502100AHLF vs 54104-5096 |
| 0541045031 | Molex | Check for Price | Card Edge Connector, 50 Contact(s), 1 Row(s), Female, Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking, White Insulator, ROHS AND REACH COMPLIANT | 62684-502100AHLF vs 0541045031 |
| 62684-502110 | Amphenol FCi | Check for Price | Card Edge Connector | 62684-502100AHLF vs 62684-502110 |
| 0541045033 | Molex | Check for Price | Card Edge Connector, 50 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal, ROHS AND REACH COMPLIANT | 62684-502100AHLF vs 0541045033 |
| 62684-50210E9ALF | Amphenol Communications Solutions | Check for Price | FFC/FPC Connector, 50 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal, LEAD FREE | 62684-502100AHLF vs 62684-50210E9ALF |
| 62684-502100ZLF | Amphenol FCi | Check for Price | Card Edge Connector | 62684-502100AHLF vs 62684-502100ZLF |
| 62684-502100 | Amphenol FCi | Check for Price | Card Edge Connector, 50 Contact(s), 1 Row(s), Female, Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking Mech, Beige Insulator | 62684-502100AHLF vs 62684-502100 |
| 0541045096 | Molex | Check for Price | Card Edge Connector, 50 Contact(s), 1 Row(s), Female, Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking, LEAD FREE | 62684-502100AHLF vs 0541045096 |
| 62684-50210ZHLF | Amphenol FCi | Check for Price | Card Edge Connector | 62684-502100AHLF vs 62684-50210ZHLF |
