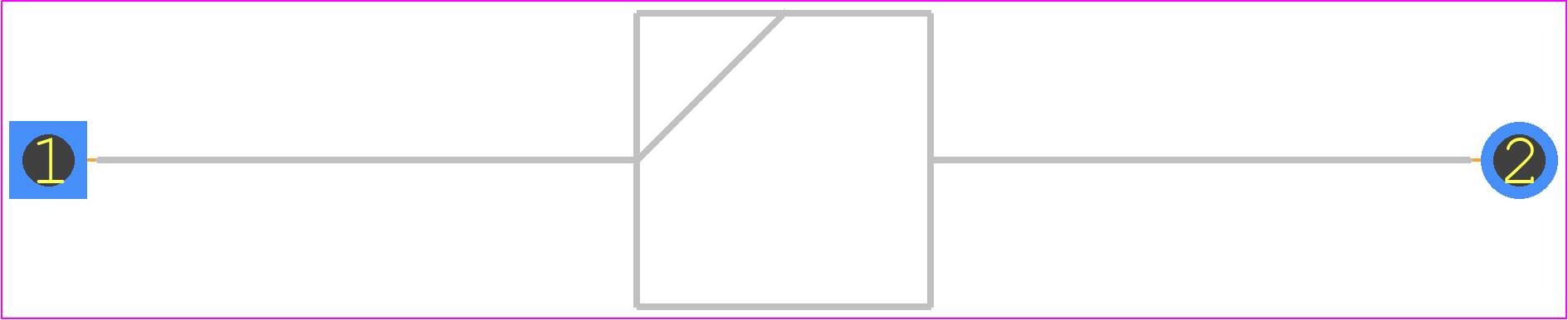

Footprint
-

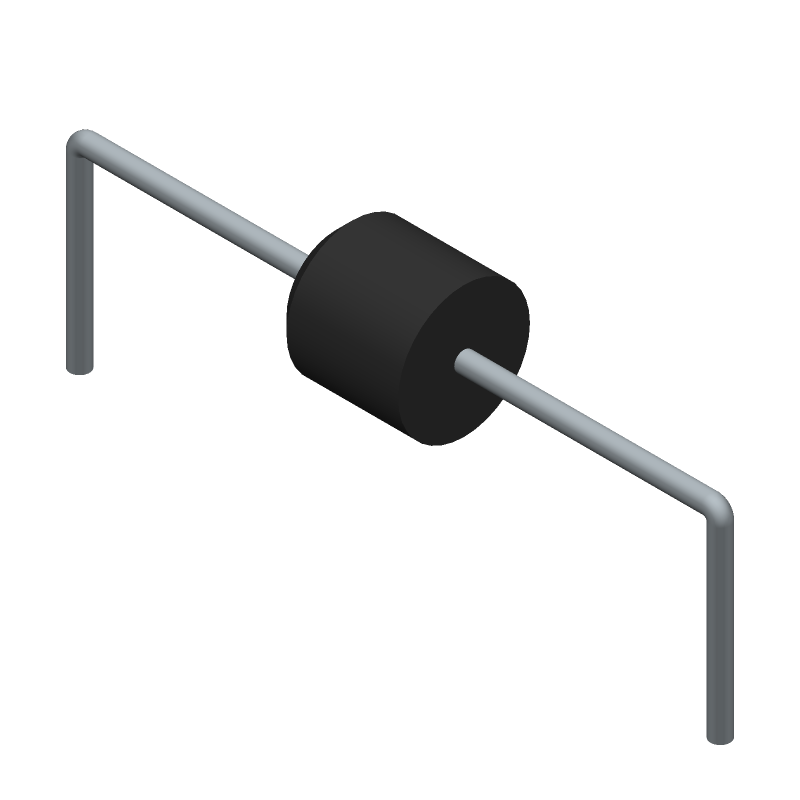

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 5KP12A by Littelfuse Inc
Results Overview of 5KP12A by Littelfuse Inc
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
5KP12A Information
5KP12A by Littelfuse Inc is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for 5KP12A
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
18H3405
|
Newark | Tvs Diode, 5Kw, 12V, P600, Full Reel, Product Range:5Kp Series, Tvs Polarity:Unidirectional, Reverse Standoff Voltage:12V, Clamping Voltage Max:19.9V, Diode Case Style:P600, No. Of Pins:2Pins, Minimum Breakdown Voltage:13.3V Rohs Compliant: Yes |Littelfuse 5KP12A RoHS: Compliant Min Qty: 800 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$1.0200 / $1.3600 | Buy Now |
|
DISTI #
06R2133
|
Newark | Tvs Diode, 5Kw, 12V, P600, Product Range:5Kp Series, Tvs Polarity:Unidirectional, Reverse Standoff Voltage:12V, Clamping Voltage Max:19.9V, Diode Case Style:P600, No. Of Pins:2Pins, Minimum Breakdown Voltage:13.3V Rohs Compliant: Yes |Littelfuse 5KP12A RoHS: Compliant Min Qty: 800 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 0 |
|
$1.5800 | Buy Now |
|
DISTI #
5KP12ALFCT-ND
|
DigiKey | TVS DIODE 12VWM 19.9VC P600 Min Qty: 1 Lead time: 12 Weeks Container: Cut Tape (CT), Tape & Reel (TR) |
923 In Stock |
|
$0.9875 / $2.5100 | Buy Now |
|
DISTI #
576-5KP12A
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes 12Vso 9VAC 251A RoHS: Compliant | 2507 |
|
$0.9870 / $2.5100 | Buy Now |
|
DISTI #
75574107
|
RS | TVS AXIAL HI-POWER - 5KP12A CR TR Min Qty: 800 Package Multiple: 1 Lead time: 8 Weeks, 0 Days Container: Bulk | 0 |
|
$2.2000 / $2.3900 | RFQ |
|
DISTI #
5KP12A
|
TTI | ESD Protection Diodes / TVS Diodes 12Vso 9VAC 251A RoHS: Compliant Min Qty: 800 Package Multiple: 800 Container: Reel | Americas - 0 |
|
$1.5300 / $1.5900 | Buy Now |
|
DISTI #
5KP12A
|
IBS Electronics | 5KP SERIES - 5000W AXIAL LEADED TRANSIENT VOLTAGE SUPPRESSION (TVS) DIODE P600 ROHS Min Qty: 800 Package Multiple: 1 | 0 |
|
$1.0920 / $1.1440 | Buy Now |
|
|
Cytech Systems Limited | TVS DIODE 12VWM 19.9VC P600 | 2400 |
|
RFQ | |
|
|
LCSC | 256.3A 19.9V 5kW 13.3V Unidirectional 12V Plugin ESD and Surge Protection (TVS/ESD) ROHS | 487 |
|
$1.3896 / $2.1333 | Buy Now |
Part Details for 5KP12A
5KP12A CAD Models
5KP12A Part Data Attributes
|
|
5KP12A
Littelfuse Inc
Buy Now
Datasheet
|
Compare Parts:
5KP12A
Littelfuse Inc
Trans Voltage Suppressor Diode, 5000W, 12V V(RWM), Unidirectional, 1 Element, Silicon, HALOGEN FREE AND ROHS COMPLIANT, PLASTIC PACKAGE-2
|
| Pbfree Code | No | |
| Rohs Code | No | |
| Part Life Cycle Code | Transferred | |
| Ihs Manufacturer | SEMITRON | |
| Pin Count | 2 | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Samacsys Manufacturer | LITTELFUSE | |
| Breakdown Voltage-Max | 14.7 V | |
| Breakdown Voltage-Min | 13.3 V | |
| Breakdown Voltage-Nom | 14 V | |
| Case Connection | ISOLATED | |
| Clamping Voltage-Max | 19.9 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JESD-30 Code | O-PALF-W2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Peak Rev Power Dis-Max | 5000 W | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 175 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | ROUND | |
| Package Style | LONG FORM | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | UNIDIRECTIONAL | |
| Power Dissipation-Max | 8 W | |
| Qualification Status | Not Qualified | |
| Reference Standard | UL RECOGNIZED | |
| Rep Pk Reverse Voltage-Max | 12 V | |
| Surface Mount | NO | |
| Technology | AVALANCHE | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | WIRE | |
| Terminal Position | AXIAL | |
| Time@Peak Reflow Temperature-Max (s) | 10 |
