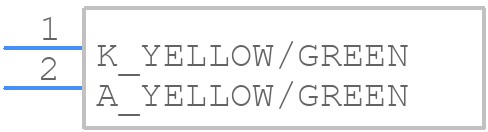

Part Symbol
-
Footprint
-

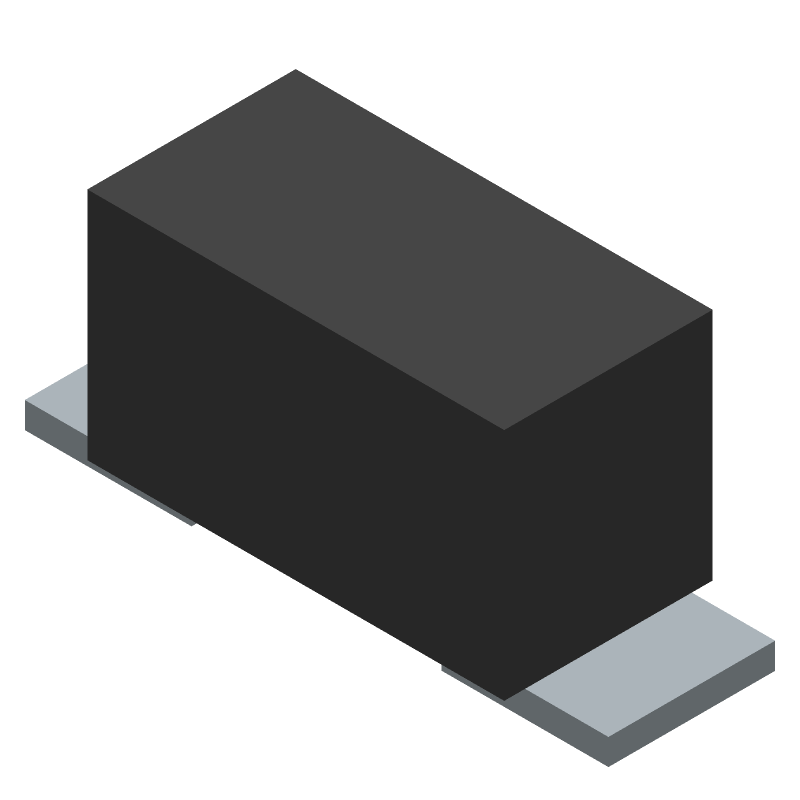

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 599-0060-007F by Dialight
Results Overview of 599-0060-007F by Dialight
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Renewable Energy
599-0060-007F Information
599-0060-007F by Dialight is a Visible LED.
Visible LEDs are under the broader part category of Optoelectronics.
Optoelectronic components work to detect, generate, and control light. They can essentially produce and/or react to light. Read more about Optoelectronics on our Optoelectronics part category page.
Price & Stock for 599-0060-007F
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
72AC9587
|
Newark | Led, Yellow Green, 43Mcd, 569Nm, 0.02A, Led Color:Yellow Green, Led Mounting:Smd, Led Case Size:0603 [1608 Metric], Forward Current If:20Ma, Forward Voltage:2.1V, Wavelength Typ:569Nm, Luminous Intensity:43Mcd, Viewing Angle:140° Rohs Compliant: Yes |Dialight 599-0060-007F RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 19604 |
|
$0.0300 | Buy Now |
|
DISTI #
645-599-0060-007F
|
Mouser Electronics | Single Color LEDs SMD 0603 YELLOW GREEN RoHS: Compliant | 19979 |
|
$0.0370 / $0.1900 | Buy Now |
|
DISTI #
74766096
|
RS | Surface Mount, LED, 0603 Yellow, Green 7 inch Min Qty: 20000 Package Multiple: 1 Lead time: 10 Weeks, 0 Days Container: Bulk | 0 |
|
$0.0990 / $0.1170 | RFQ |
|
|
Onlinecomponents.com | 599 SMD LED 0603 pkg Yellow-Green 569nm 7" Reel RoHS: Compliant |
20000 In Stock |
|
$0.0370 / $0.0439 | Buy Now |
|
DISTI #
599-0060-007F
|
TTI | Single Color LEDs SMD 0603 YELLOW GREEN RoHS: Compliant Min Qty: 20000 Package Multiple: 4000 Container: Reel | Americas - 0 |
|
$0.0480 / $0.0510 | Buy Now |
|
DISTI #
599-0060-007F
|
TME | LED, SMD, 0603, yellow green, 9÷43mcd, 1.6x0.8x0.7mm, 140°, 20mA Min Qty: 1 | 0 |
|
$0.0491 / $0.2689 | RFQ |
|
DISTI #
000000000005770613
|
Sager | Standard LEDs - SMD SMD 0603 YELLOW GREEN Min Qty: 20000 | 0 |
|
$0.0399 / $0.0426 | Buy Now |
|
|
Master Electronics | 599 SMD LED 0603 pkg Yellow-Green 569nm 7" Reel RoHS: Compliant |
20000 In Stock |
|
$0.0370 / $0.0439 | Buy Now |
Part Details for 599-0060-007F
599-0060-007F CAD Models
599-0060-007F Part Data Attributes
|
|
599-0060-007F
Dialight
Buy Now
Datasheet
|
Compare Parts:
599-0060-007F
Dialight
Single Color LED,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | DIALIGHT CORP | |
| Reach Compliance Code | compliant | |
| HTS Code | 8541.40.20.00 | |
| Samacsys Manufacturer | Dialight | |
| Color | YELLOW GREEN | |
| Configuration | SINGLE | |
| Forward Current-Max | 0.03 A | |
| Forward Voltage-Max | 2.5 V | |
| Lens Type | NONDIFFUSED | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Functions | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 100 °C | |
| Operating Temperature-Min | -40 °C | |
| Optoelectronic Device Type | SINGLE COLOR LED | |
| Overall Height | 0.7 mm | |
| Packing Method | TR, 7 INCH | |
| Reverse Voltage-Max | 5 V | |
| Shape | RECTANGULAR | |
| Size | 1.1 mm | |
| Surface Mount | YES | |
| Terminal Pitch | 1.6 mm | |
| Viewing Angle | 140 deg |
599-0060-007F Frequently Asked Questions (FAQ)
-
The recommended operating temperature range for the 599-0060-007F is -40°C to 85°C (-40°F to 185°F).
-
Yes, the 599-0060-007F is suitable for outdoor use, as it has a IP67 rating, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes.
-
The typical lifespan of the 599-0060-007F LED indicator is 50,000 hours or more, depending on operating conditions and environmental factors.
-
Yes, the 599-0060-007F is designed to withstand high-vibration environments, making it suitable for use in industrial, transportation, and other applications where vibration is a concern.
-
Yes, the 599-0060-007F is compatible with dimming or PWM control, allowing for adjustable brightness and energy efficiency.
