Capacitors / Fixed Capacitors / 593D226X0025D2TE3
Datasheets
593D226X0025D2TE3 by:

Tantalum Capacitor, Polarized, Tantalum (dry/solid), 25V, 20% +Tol, 20% -Tol, 22uF, Surface Mount, 2917, CHIP

Part Details for 593D226X0025D2TE3 by Vishay Intertechnologies

Results Overview of 593D226X0025D2TE3 by Vishay Intertechnologies

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

593D226X0025D2TE3 Information

593D226X0025D2TE3 by Vishay Intertechnologies is a Fixed Capacitor.
Fixed Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for 593D226X0025D2TE3

Part # Distributor Description Stock Price Buy
DISTI # 56R2324
Newark 593D226X0025D2Te3 |Vishay 593D226X0025D2TE3 RoHS: Not Compliant Min Qty: 1500 Package Multiple: 1 Date Code: 0 Container: Cut Tape 0
  • 250 $1.0100
$1.0100 Buy Now
DISTI # 01N1931
Newark Tantalum Capacitor, 22Uf 25V, 0.2 Ohm, 0.1, 7343-31, Full Reel, Capacitance:22Μf, Voltage(Dc):25V, Capacitor Case/Package:2917 [7343 Metric], Capacitance Tolerance:± 10%, Esr:0.2Ohm, Manufacturer Size Code:D, Failure Rate:- Rohs Compliant: Yes |Vishay 593D226X0025D2TE3 RoHS: Compliant Min Qty: 1500 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 1,000 $0.7890
  • 2,000 $0.7160
  • 4,000 $0.6430
  • 6,000 $0.6200
  • 10,000 $0.6060
$0.6060 / $0.7890 Buy Now
DISTI # 593D226X0025D2TE3
Avnet Americas Surface Mount Tantalum Capacitor, 22 ?F, 25 V, 2917 [7343 Metric], ? 10%, 0.2 ohm, D - Tape and Reel (Alt: 593D226X0025D2TE3) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 12 Weeks, 0 Days Container: Reel 0
  • 500 $0.3088
  • 1,000 $0.3038
  • 2,000 $0.2987
  • 3,000 $0.2940
  • 4,000 $0.2906
$0.2906 / $0.3088 Buy Now
DISTI # 74-593D226X0025D2TE3
Mouser Electronics Tantalum Capacitors - Solid SMD 22uF 25volts 20% D case Molded RoHS: Compliant 601
  • 1 $1.9000
  • 10 $1.3100
  • 100 $0.9800
  • 500 $0.8300
  • 1,000 $0.7760
  • 2,500 $0.7170
  • 5,000 $0.6780
  • 10,000 $0.6500
$0.6500 / $1.9000 Buy Now
Future Electronics 593D Series 22 uF ±20 % 25 V Surface Mount Molded Solid Tantalum Capacitor RoHS: Compliant pbFree: Yes Min Qty: 500 Package Multiple: 500 Lead time: 12 Weeks Container: Reel 0
Reel
  • 500 $0.2350
  • 1,500 $0.2300
  • 5,000 $0.2250
  • 7,500 $0.2200
$0.2200 / $0.2350 Buy Now
Bristol Electronics   1607
RFQ
Quest Components   85
  • 1 $1.4250
  • 19 $0.8550
  • 71 $0.7125
$0.7125 / $1.4250 Buy Now
DISTI # 593D226X0025D2TE3
TTI Tantalum Capacitors - Solid SMD 22uF 25volts 20% D case Molded RoHS: Compliant pbFree: Pb-Free Min Qty: 500 Package Multiple: 500 Container: Reel Americas - 22500
In Stock
  • 500 $0.3480
  • 1,000 $0.3260
  • 1,500 $0.3150
  • 2,500 $0.3050
  • 5,000 $0.2990
$0.2990 / $0.3480 Buy Now
Future Electronics 593D Series 22 uF �20 % 25 V Surface Mount Molded Solid Tantalum Capacitor Min Qty: 500 Package Multiple: 500 6000
null
  • 500 $0.2350
  • 1,500 $0.2300
  • 5,000 $0.2250
  • 7,500 $0.2200
$0.2200 / $0.2350 Buy Now
DISTI # 593D226X0025D2TE3
TME Capacitor: tantalum, low ESR, 22uF, 25VDC, SMD, D, 2917, ±20%, 200mΩ Min Qty: 500 0
  • 500 $0.3200
  • 1,000 $0.3160
$0.3160 / $0.3200 RFQ
ComSIT USA Electronic Component RoHS: Compliant Stock DE - 0
Stock ES - 5383
Stock US - 0
Stock MX - 0
Stock CN - 0
Stock HK - 0
RFQ
DISTI # 593D226X0025D2TE3
Avnet Abacus Surface Mount Tantalum Capacitor 22 F 25 V 2917 7343 Metric 10 02 ohm D - Tape and Reel (Alt: 593D226X0025D2TE3) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 15 Weeks, 0 Days Container: Reel Abacus - 3000
Buy Now
DISTI # 593D226X0025D2TE3
Avnet Asia Surface Mount Tantalum Capacitor, 22 ?F, 25 V, 2917 [7343 Metric], ? 10%, 0.2 ohm, D (Alt: 593D226X0025D2TE3) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 15 Weeks, 0 Days 0
RFQ
New Advantage Corporation Cap Tant SMD 22�F � 20% 25V D Case Low ESR T&R RoHS: Compliant Min Qty: 1 Package Multiple: 500 2500
  • 500 $0.5010
  • 2,500 $0.4636
$0.4636 / $0.5010 Buy Now

Part Details for 593D226X0025D2TE3

593D226X0025D2TE3 CAD Models

  • Part Symbol

    Part Symbol

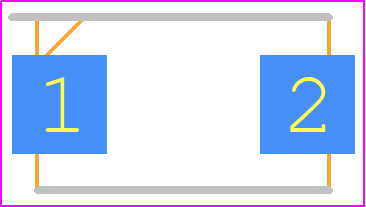

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

593D226X0025D2TE3 Part Data Attributes

Parametric Data
593D226X0025D2TE3 Vishay Intertechnologies
Buy Now Datasheet
Compare Parts:
593D226X0025D2TE3 Vishay Intertechnologies Tantalum Capacitor, Polarized, Tantalum (dry/solid), 25V, 20% +Tol, 20% -Tol, 22uF, Surface Mount, 2917, CHIP
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer VISHAY INTERTECHNOLOGY INC
Package Description CHIP
Reach Compliance Code compliant
Factory Lead Time 12 Weeks
Samacsys Manufacturer Vishay
Additional Feature ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ
Capacitance 22 µF
Capacitor Type TANTALUM CAPACITOR
Dielectric Material TANTALUM (DRY/SOLID)
ESR 200 mΩ
Height 2.8 mm
JESD-609 Code e3
Leakage Current 0.0055 mA
Length 7.3 mm
Mounting Feature SURFACE MOUNT
Negative Tolerance 20%
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Packing Method TR, Embossed Plastic, 7 Inch
Polarity POLARIZED
Positive Tolerance 20%
Rated (DC) Voltage (URdc) 25 V
Ripple Current 348 mA
Size Code 2917
Surface Mount YES
Tan Delta 0.06
Terminal Finish MATTE TIN OVER NICKEL
Terminal Shape J BEND
Width 4.3 mm

Alternate Parts for 593D226X0025D2TE3

This table gives cross-reference parts and alternative options found for 593D226X0025D2TE3. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 593D226X0025D2TE3, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
293D226X0025D8W Vishay Intertechnologies Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 25V, 20% +Tol, 20% -Tol, 22uF, Surface Mount, 2917, CHIP 593D226X0025D2TE3 vs 293D226X0025D8W
TR3D226M025F0200 Vishay Intertechnologies Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 25V, 20% +Tol, 20% -Tol, 22uF, Surface Mount, 2917, CHIP 593D226X0025D2TE3 vs TR3D226M025F0200
593D226X0025D8T Vishay Intertechnologies Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 25V, 20% +Tol, 20% -Tol, 22uF, Surface Mount, 2917, CHIP 593D226X0025D2TE3 vs 593D226X0025D8T
T491D226M025AT7280 KEMET Corporation Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 25V, 20% +Tol, 20% -Tol, 22uF, Surface Mount, 2917, CHIP 593D226X0025D2TE3 vs T491D226M025AT7280
T495D226M025ATE2007280 KEMET Corporation Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 25V, 20% +Tol, 20% -Tol, 22uF, Surface Mount, 2917, CHIP 593D226X0025D2TE3 vs T495D226M025ATE2007280
293D226X0025D2DE3 Vishay Intertechnologies Check for Price Tantalum Capacitor, Tantalum (dry/solid), 593D226X0025D2TE3 vs 293D226X0025D2DE3
TR3D226M025C0300 Vishay Intertechnologies $1.0505 Tantalum Capacitor, Polarized, Tantalum (dry/solid), 25V, 20% +Tol, 20% -Tol, 22uF, Surface Mount, 2917, CHIP 593D226X0025D2TE3 vs TR3D226M025C0300
TMCME1E226MTRF Vishay Intertechnologies Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 25V, 20% +Tol, 20% -Tol, 22uF, 2917, 593D226X0025D2TE3 vs TMCME1E226MTRF
T495D226M025AHE200 KEMET Corporation $1.8143 Tantalum Capacitor, Polarized, Tantalum (dry/solid), 25V, 20% +Tol, 20% -Tol, 22uF, Surface Mount, 2917, CHIP 593D226X0025D2TE3 vs T495D226M025AHE200
293D226X0025D8T Vishay Intertechnologies Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 25V, 20% +Tol, 20% -Tol, 22uF, Surface Mount, 2917, CHIP 593D226X0025D2TE3 vs 293D226X0025D8T

593D226X0025D2TE3 Related Parts

593D226X0025D2TE3 Frequently Asked Questions (FAQ)

  • The recommended soldering temperature for the 593D226X0025D2TE3 is 260°C (500°F) for a maximum of 10 seconds.

  • Yes, the 593D226X0025D2TE3 is designed to withstand high-vibration environments. It meets the vibration test requirements of IEC 60068-2-6.

  • Yes, the 593D226X0025D2TE3 is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.

  • The maximum operating temperature range for the 593D226X0025D2TE3 is -55°C to +125°C.

  • Yes, the 593D226X0025D2TE3 is designed to operate in humid environments and meets the moisture sensitivity level (MSL) of 1, as per IPC/JEDEC J-STD-020.
