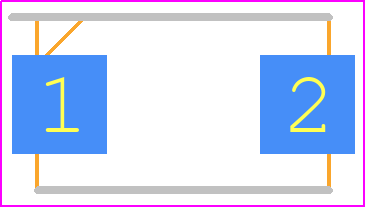

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 593D107X9010D2TE3 by Vishay Intertechnologies
Results Overview of 593D107X9010D2TE3 by Vishay Intertechnologies
- Distributor Offerings: (28 listings)
- Number of FFF Equivalents: (10 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
593D107X9010D2TE3 Information
593D107X9010D2TE3 by Vishay Intertechnologies is a Fixed Capacitor.
Fixed Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for 593D107X9010D2TE3
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
66AH8488
|
Newark | Cap, 100Uf, 10V, Tant, Case D Rohs Compliant: Yes |Vishay 593D107X9010D2TE3 RoHS: Compliant Min Qty: 500 Package Multiple: 1 Date Code: 1 Container: Reel | 6000 |
|
$0.3870 / $0.4080 | Buy Now |
|
DISTI #
65K2996
|
Newark | Tantalum Capacitor, 100Uf 10V 0.1 Ohm 10%, 7343-31, Capacitance:100Μf, Voltage(Dc):10V, Capacitor Case/Package:2917 [7343 Metric], Capacitance Tolerance:± 10%, Esr:0.1Ohm, Manufacturer Size Code:D, Failure Rate:-, Qualification:- Rohs Compliant: Yes |Vishay 593D107X9010D2TE3 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 1012 |
|
$0.4820 / $0.5560 | Buy Now |
|
DISTI #
593D107X9010D2TE3
|
Avnet Americas | 593D107X9010D2Te3 - Tape and Reel (Alt: 593D107X9010D2TE3) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 13 Weeks, 0 Days Container: Reel | 9500 |
|
$0.1888 / $0.2009 | Buy Now |
|
DISTI #
65K2996
|
Avnet Americas | 593D107X9010D2Te3 - Product that comes on tape, but is not reeled (Alt: 65K2996) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 13 Weeks, 3 Days Container: Ammo Pack | 1012 Partner Stock |
|
$0.4110 / $0.7700 | Buy Now |
|
DISTI #
74-593D107X9010D2TE3
|
Mouser Electronics | Tantalum Capacitors - Solid SMD 100uF 10volts 10% D case Molded RoHS: Compliant | 135301 |
|
$0.5150 / $1.5800 | Buy Now |
|
DISTI #
E02:0323_01683032
|
Arrow Electronics | Cap Tant Solid 100uF 10V D CASE 10%( 7.3 X 4.3 X 2.8mm) Inward L SMD 7343-31 0.1 Ohm 125°C T/R RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 13 Weeks Date Code: 2509 | Europe - 102500 |
|
$0.1902 / $0.2891 | Buy Now |
|
DISTI #
V36:1790_07465060
|
Arrow Electronics | Cap Tant Solid 100uF 10V D CASE 10%( 7.3 X 4.3 X 2.8mm) Inward L SMD 7343-31 0.1 Ohm 125°C T/R RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 13 Weeks Date Code: 2501 | Americas - 31000 |
|
$0.1867 / $0.2836 | Buy Now |
|
DISTI #
V72:2272_07465060
|
Arrow Electronics | Cap Tant Solid 100uF 10V D CASE 10%( 7.3 X 4.3 X 2.8mm) Inward L SMD 7343-31 0.1 Ohm 125°C T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 13 Weeks Date Code: 2305 Container: Cut Strips | Americas - 2 |
|
$0.2864 | Buy Now |
|
|
Future Electronics | 593D Series 100 uF ±10 % 10 V Surface Mount Molded Solid Tantalum Capacitor RoHS: Compliant pbFree: Yes Min Qty: 500 Package Multiple: 500 Lead time: 13 Weeks Container: Reel | 189000Reel |
|
$0.1990 / $0.2100 | Buy Now |
|
DISTI #
8619415
|
Verical | Cap Tant Solid 100uF 10V D CASE 10%( 7.3 X 4.3 X 2.8mm) Inward L SMD 7343-31 0.1 Ohm 125°C T/R RoHS: Compliant Min Qty: 500 Package Multiple: 500 | Americas - 102500 |
|
$0.1895 / $0.2881 | Buy Now |
Part Details for 593D107X9010D2TE3

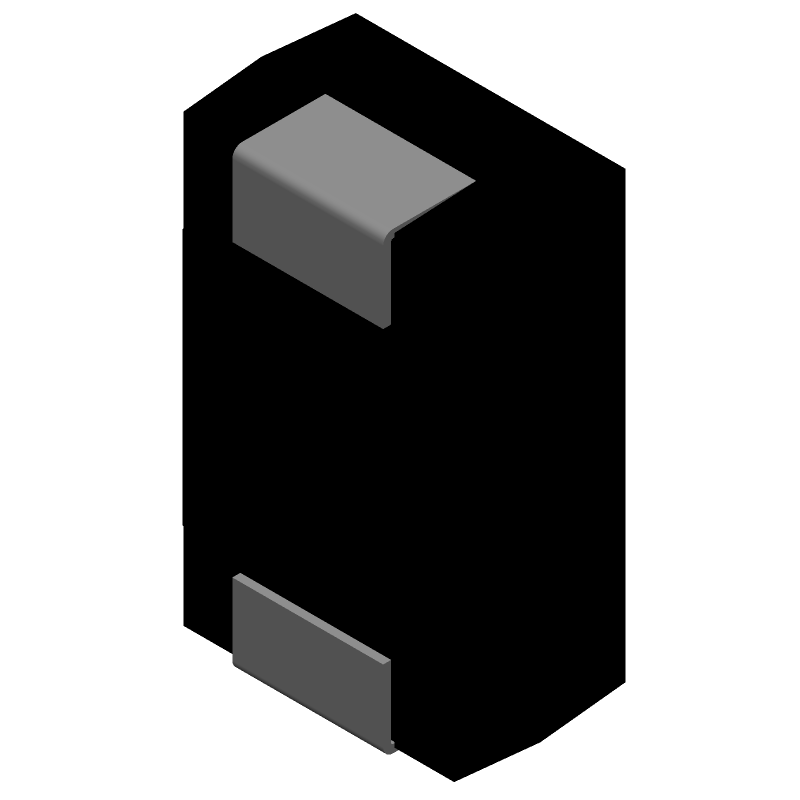

593D107X9010D2TE3 CAD Models
593D107X9010D2TE3 Part Data Attributes
|
|
593D107X9010D2TE3
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
593D107X9010D2TE3
Vishay Intertechnologies
Tantalum Capacitor, Polarized, Tantalum (dry/solid), 10V, 10% +Tol, 10% -Tol, 100uF, Surface Mount, 2917, CHIP
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 13 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ | |
| Capacitance | 100 µF | |
| Capacitor Type | TANTALUM CAPACITOR | |
| Dielectric Material | TANTALUM (DRY/SOLID) | |
| ESR | 100 mΩ | |
| Height | 2.8 mm | |
| JESD-609 Code | e3 | |
| Leakage Current | 0.01 mA | |
| Length | 7.3 mm | |
| Mounting Feature | SURFACE MOUNT | |
| Negative Tolerance | 10% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Packing Method | TR, Embossed Plastic, 7 Inch | |
| Polarity | POLARIZED | |
| Positive Tolerance | 10% | |
| Rated (DC) Voltage (URdc) | 10 V | |
| Ripple Current | 488 mA | |
| Size Code | 2917 | |
| Surface Mount | YES | |
| Tan Delta | 0.06 | |
| Terminal Finish | Matte Tin (Sn) - with Nickel (Ni) barrier | |
| Terminal Shape | J BEND | |
| Width | 4.3 mm |
