Capacitors / Fixed Capacitors / 593D106X9016C2WE3
Datasheets
593D106X9016C2WE3 by:

Tantalum Capacitor, Polarized, Tantalum (dry/solid), 16V, 10% +Tol, 10% -Tol, 10uF, Surface Mount, 2413, CHIP

Part Details for 593D106X9016C2WE3 by Vishay Intertechnologies

Results Overview of 593D106X9016C2WE3 by Vishay Intertechnologies

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

593D106X9016C2WE3 Information

593D106X9016C2WE3 by Vishay Intertechnologies is a Fixed Capacitor.
Fixed Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for 593D106X9016C2WE3

Part # Distributor Description Stock Price Buy
DISTI # 593D106X9016C2WE3
Avnet Americas 593D106X9016C2We3 - Tape and Reel (Alt: 593D106X9016C2WE3) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 13 Weeks, 0 Days Container: Reel 0
  • 3,000 $0.2716
  • 6,000 $0.2702
  • 12,000 $0.2688
  • 18,000 $0.2674
  • 24,000 $0.2660
$0.2660 / $0.2716 Buy Now
Bristol Electronics   2701
RFQ
Quest Components   2160
  • 1 $0.9750
  • 411 $0.3900
  • 2,052 $0.3413
$0.3413 / $0.9750 Buy Now
DISTI # 593D106X9016C2WE3
Avnet Abacus 593D106X9016C2We3 (Alt: 593D106X9016C2WE3) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 16 Weeks, 0 Days Abacus - 0
Buy Now

Part Details for 593D106X9016C2WE3

593D106X9016C2WE3 CAD Models

  • Part Symbol

    Part Symbol

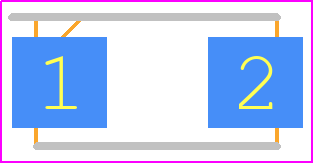

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

593D106X9016C2WE3 Part Data Attributes

Parametric Data
593D106X9016C2WE3 Vishay Intertechnologies
Buy Now Datasheet
Compare Parts:
593D106X9016C2WE3 Vishay Intertechnologies Tantalum Capacitor, Polarized, Tantalum (dry/solid), 16V, 10% +Tol, 10% -Tol, 10uF, Surface Mount, 2413, CHIP
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer VISHAY INTERTECHNOLOGY INC
Package Description CHIP
Reach Compliance Code compliant
Factory Lead Time 13 Weeks
Samacsys Manufacturer Vishay
Additional Feature ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ
Capacitance 10 µF
Capacitor Type TANTALUM CAPACITOR
Dielectric Material TANTALUM (DRY/SOLID)
ESR 450 mΩ
Height 2.5 mm
JESD-609 Code e3
Leakage Current 0.0016 mA
Length 6 mm
Mounting Feature SURFACE MOUNT
Negative Tolerance 10%
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Packing Method TR, Embossed Plastic, 13 Inch
Polarity POLARIZED
Positive Tolerance 10%
Rated (DC) Voltage (URdc) 16 V
Ripple Current 196 mA
Size Code 2413
Surface Mount YES
Tan Delta 0.06
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal Shape J BEND
Width 3.2 mm

Alternate Parts for 593D106X9016C2WE3

This table gives cross-reference parts and alternative options found for 593D106X9016C2WE3. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 593D106X9016C2WE3, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
T496C106K016DH6320 KEMET Corporation Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 16V, 10% +Tol, 10% -Tol, 10uF, 2412 593D106X9016C2WE3 vs T496C106K016DH6320
TCSCE1C106KCCR0600 Samsung Electro-Mechanics Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 16V, 10% +Tol, 10% -Tol, 10uF, Surface Mount, 2413, CHIP 593D106X9016C2WE3 vs TCSCE1C106KCCR0600
T496C106K016DH62207640 KEMET Corporation Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 16V, 10% +Tol, 10% -Tol, 10uF, 2412, 593D106X9016C2WE3 vs T496C106K016DH62207640
T496C106K016CK6310 KEMET Corporation Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 16V, 10% +Tol, 10% -Tol, 10uF, 2412 593D106X9016C2WE3 vs T496C106K016CK6310
T496C106K016AH62207280 KEMET Corporation Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 16V, 10% +Tol, 10% -Tol, 10uF, 2412, 593D106X9016C2WE3 vs T496C106K016AH62207280
T496C106K016DC6320 KEMET Corporation Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 16V, 10% +Tol, 10% -Tol, 10uF, 2412 593D106X9016C2WE3 vs T496C106K016DC6320
T496C106K016AK6110 KEMET Corporation Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 16V, 10% +Tol, 10% -Tol, 10uF, 2412, 593D106X9016C2WE3 vs T496C106K016AK6110
T496C106K016AC6210 KEMET Corporation Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 16V, 10% +Tol, 10% -Tol, 10uF, 2412, 593D106X9016C2WE3 vs T496C106K016AC6210
T496C106K016CC6410WAFL KEMET Corporation Check for Price Tantalum Capacitor, Tantalum (dry/solid), 593D106X9016C2WE3 vs T496C106K016CC6410WAFL
T496C106K016DT64107280 KEMET Corporation Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 16V, 10% +Tol, 10% -Tol, 10uF, 2412 593D106X9016C2WE3 vs T496C106K016DT64107280
