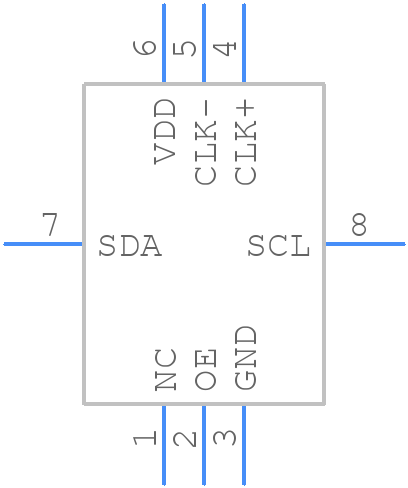

Part Symbol
-

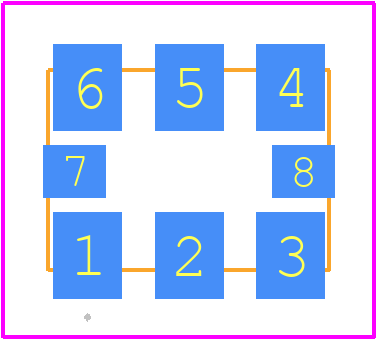

Footprint
-

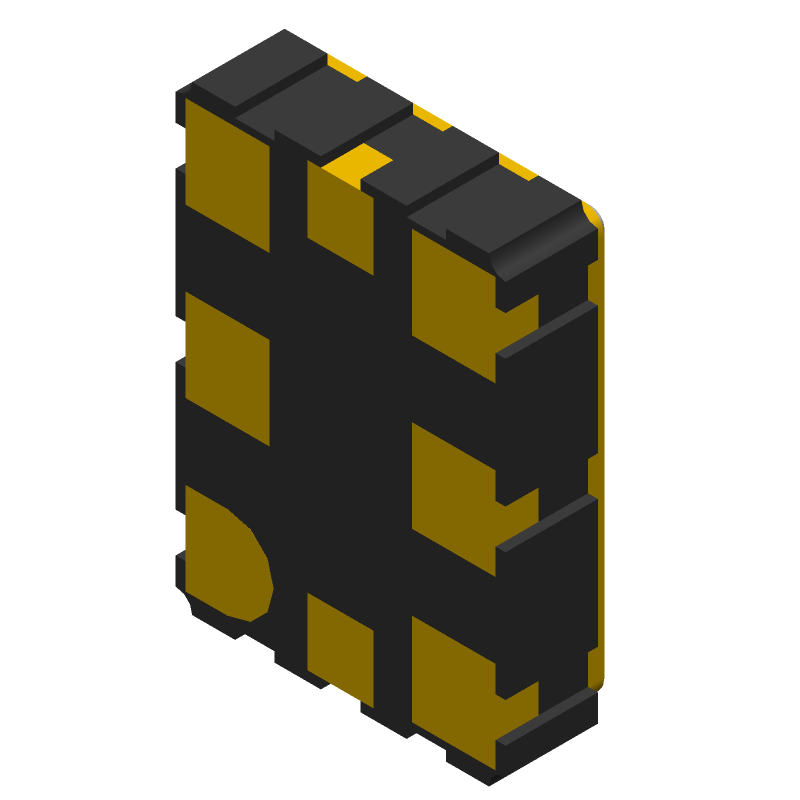

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 570BAB000544DGR by Skyworks Solutions Inc
Results Overview of 570BAB000544DGR by Skyworks Solutions Inc
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
570BAB000544DGR Information
570BAB000544DGR by Skyworks Solutions Inc is an Other Oscillator.
Other Oscillators are under the broader part category of Oscillators.
Oscillators are electronic components that produce sine or square waves in order to convert signals. Read more about Oscillators on our Oscillators part category page.
Price & Stock for 570BAB000544DGR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
336-5614-1-ND
|
DigiKey | XTAL OSC XO 156.2500MHZ LVDS SMD Min Qty: 1 Lead time: 8 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
3537 In Stock |
|
$36.3750 / $45.1700 | Buy Now |
|
DISTI #
634-570BAB000544DGR
|
Mouser Electronics | Programmable Oscillators Differential/single-ended, I2C programmable XO, OE pin 2, 10-1417 MHz RoHS: Compliant | 30 |
|
$36.3700 / $45.1700 | Buy Now |
|
DISTI #
570BAB000544DGR
|
Richardson RFPD | OSCILLATOR CRYSTAL RoHS: Compliant Min Qty: 1 | 0 |
|
RFQ |
Part Details for 570BAB000544DGR
570BAB000544DGR CAD Models
570BAB000544DGR Part Data Attributes
|
|
570BAB000544DGR
Skyworks Solutions Inc
Buy Now
Datasheet
|
Compare Parts:
570BAB000544DGR
Skyworks Solutions Inc
Oscillator, 10MHz Min, 810MHz Max, 810MHz Nom,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | SKYWORKS SOLUTIONS INC | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Skyworks | |
| Additional Feature | TRI-STATE; ENABLE/DISABLE FUNCTION; COMPLEMENTARY OUTPUT; DIFFERENTIAL OUTPUT | |
| Fall Time-Max | 0.35 ns | |
| Frequency Adjustment-Mechanical | NO | |
| Frequency Stability | 50% | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 8 | |
| Operating Frequency-Max | 1417.5 MHz | |
| Operating Frequency-Min | 10 MHz | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Oscillator Type | LVDS | |
| Output Load | 100 OHM | |
| Package Equivalence Code | LCC8,.2X.28,100 | |
| Physical Dimension | 7.0mm x 5.0mm x 1.8mm | |
| Qualification Status | Not Qualified | |
| Rise Time-Max | 0.35 ns | |
| Screening Level | MIL-STD-883 | |
| Supply Current-Max | 108 mA | |
| Supply Voltage-Max | 3.63 V | |
| Supply Voltage-Min | 2.97 V | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Symmetry-Max | 55/45 % |
570BAB000544DGR Frequently Asked Questions (FAQ)
-
The recommended PCB layout and land pattern can be found in the Skyworks Solutions Inc. application note AN-3021, which provides guidelines for optimal performance and thermal management.
-
Proper thermal management can be achieved by following the guidelines in the datasheet and application notes, including using a thermal pad, thermal vias, and a heat sink if necessary. Additionally, ensuring good airflow and keeping the device away from heat sources can help.
-
The recommended soldering and assembly techniques can be found in the Skyworks Solutions Inc. application note AN-3022, which provides guidelines for surface mount assembly and rework.
-
Troubleshooting common issues or faults can be done by following the troubleshooting guide in the datasheet or application notes, or by contacting Skyworks Solutions Inc. technical support for assistance.
-
The 570BAB000544DGR is RoHS and REACH compliant, and meets the requirements of relevant environmental and regulatory standards. For specific compliance information, please refer to the datasheet or contact Skyworks Solutions Inc. technical support.
