5536356-5 by:

ASSY,PIN,EUROCARD,"C",LEAD-FREE,A&C,64/9

Part Details for 5536356-5 by TE Connectivity

Results Overview of 5536356-5 by TE Connectivity

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

5536356-5 Information

5536356-5 by TE Connectivity is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for 5536356-5

Part # Distributor Description Stock Price Buy
DISTI # 2971057
Farnell ASSY,PIN,EUROCARD,"C",LEAD-FREE,A&C,64/9 RoHS: Compliant Min Qty: 30 Lead time: 1 Weeks, 2 Days Container: Each 60
  • 30 $4.1994
  • 90 $3.9353
$3.9353 / $4.1994 Buy Now
DISTI # A32813-ND
DigiKey CONN DIN PLUG 96POS Min Qty: 1 Lead time: 10 Weeks Container: Bulk 734
In Stock
  • 1 $5.4700
  • 10 $4.6470
  • 30 $4.3003
  • 60 $4.0950
  • 120 $3.8994
  • 270 $3.6826
  • 510 $3.5211
  • 1,020 $3.3531
  • 2,520 $3.1460
$3.1460 / $5.4700 Buy Now
DISTI # 5536356-5
Avnet Americas - Bulk (Alt: 5536356-5) RoHS: Not Compliant Min Qty: 600 Package Multiple: 150 Lead time: 9 Weeks, 3 Days Container: Bulk 0
  • 600 $2.8922
  • 900 $2.8730
  • 1,500 $2.7742
  • 3,000 $2.7599
  • 6,000 $2.7456
$2.7456 / $2.8922 Buy Now
DISTI # 571-5536356-5
Mouser Electronics DIN 41612 Connectors DIN PLUG 120P R/A TYPE C RoHS: Compliant 646
  • 1 $5.4700
  • 10 $4.1000
  • 120 $3.4600
  • 270 $3.3500
  • 2,520 $3.1400
$3.1400 / $5.4700 Buy Now
DISTI # 73776425
RS ASSY, PIN, EUROCARD, InchCInch, LEAD-FREE, A and C,64/9, Eurocard Connectors Min Qty: 150 Package Multiple: 1 Lead time: 12 Weeks, 0 Days Container: Bulk 0
  • 150 $6.9600
  • 300 $6.6100
  • 600 $6.4000
$6.4000 / $6.9600 RFQ
TE Connectivity ASSY,PIN,EUROCARD,C,LEAD-FREE,A&C,64/9 Connector & Housing Type: Plug Connector System: Board-to-Board Termination Post & Tail Length: .104 in Termination Post & Tail Length: 2.64 mm Number of Positions: 64 Plug Board-to-Board .104" 2.64 mm | Eurocard Connector | Part Number: 5536356-5 | Internal Number: 5536356-5 | TE Connectivity RoHS: Compliant Min Qty: 1 734
  • 1 $6.2400
  • 50 $5.6900
  • 100 $5.5200
  • 250 $5.3500
  • 500 $5.1800
  • 1,000 $5.0400
$5.0400 / $6.2400 Buy Now
DISTI # AMP5536356-5
Heilind Electronics ASSYPINEUROCARD Americas - 0 in Stock
  • 600 $3.6189
  • 2,070 $3.4221
$3.4221 / $3.6189 Buy Now
Onlinecomponents.com ASSY,PIN,EUROCARD,"C",LEAD-FREE,A&C,64/9 RoHS: Compliant 60 Partner Stock
  • 1 $7.4030
  • 60 $6.6300
  • 120 $6.5300
  • 150 $6.4300
  • 300 $3.9600
  • 450 $3.1300
  • 600 $3.0700
  • 600 $6.7300
$3.0700 / $7.4030 Buy Now
DISTI # 12017169
Verical Conn DIN 41612 M 64 POS 2.54mm Solder RA Thru-Hole Box RoHS: Compliant Min Qty: 30 Package Multiple: 30 Americas - 60
  • 30 $3.7800
$3.7800 Buy Now
DISTI # 5536356-5
TTI DIN 41612 Connectors DIN PLUG 120P R/A TYPE C RoHS: Compliant pbFree: Pb-Free Min Qty: 30 Package Multiple: 30 Container: Tube Americas - 0
Buy Now
DISTI # AMP5536356-5
Interstate Connecting Components ASSYPINEUROCARD 0
  • 600 $3.6189
  • 2,070 $3.4221
$3.4221 / $3.6189 Buy Now
DISTI # 000000000001653971
Sager DIN 41612 Connectors DIN PLUG 120P R/A TYPE C Min Qty: 150 0
  • 150 $4.0400
$4.0400 Buy Now
DISTI # 5536356-5
Avnet Abacus Conn Eurocard Plug 64 POS 254mm Solder RA Through Hole Box (Alt: 5536356-5) RoHS: Compliant Min Qty: 600 Package Multiple: 30 Lead time: 12 Weeks, 0 Days Abacus - 0
Buy Now
DISTI # 5536356-5
Avnet Abacus Conn Eurocard Plug 64 POS 254mm Solder RA Through Hole Box (Alt: 5536356-5) RoHS: Compliant Min Qty: 600 Package Multiple: 150 Lead time: 10 Weeks, 0 Days Abacus - 0
Buy Now
Component Electronics, Inc IN STOCK SHIP TODAY 4800
  • 1 $3.0800
  • 100 $2.3100
  • 1,000 $2.0000
$2.0000 / $3.0800 Buy Now
Master Electronics ASSY,PIN,EUROCARD,"C",LEAD-FREE,A&C,64/9 RoHS: Compliant 60 Partner Stock
  • 1 $7.4030
  • 60 $6.6300
  • 120 $6.5300
  • 150 $6.4300
  • 300 $3.9600
  • 450 $3.1300
  • 600 $3.0700
  • 600 $6.7300
$3.0700 / $7.4030 Buy Now

Part Details for 5536356-5

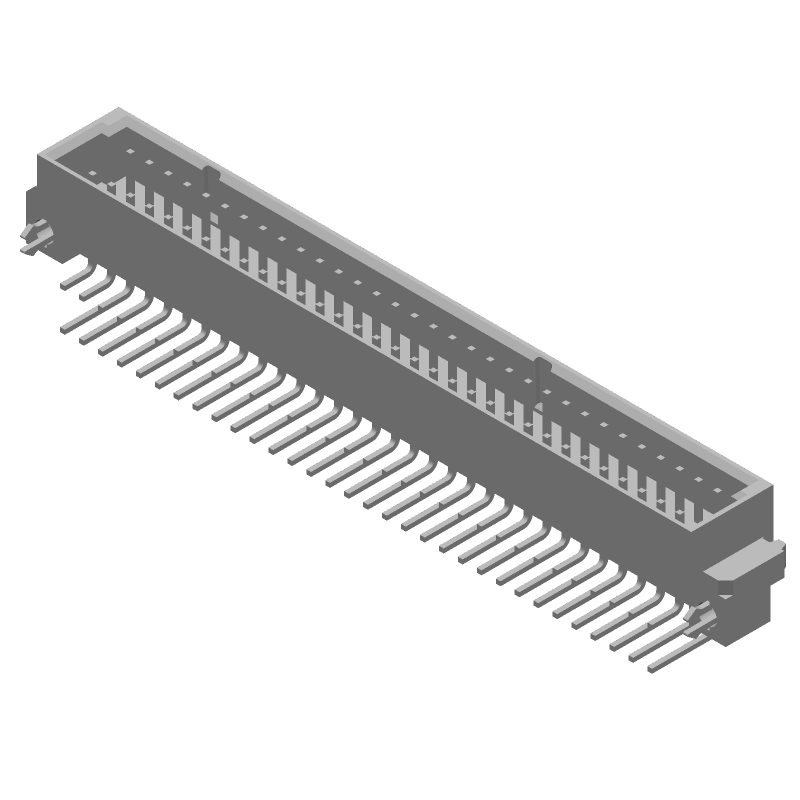

5536356-5 CAD Models

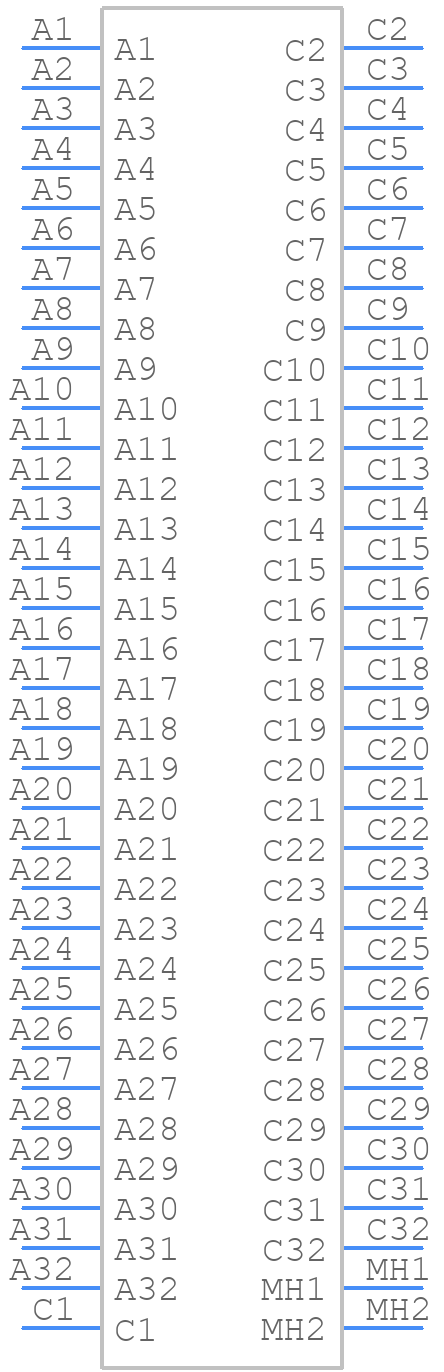

  • Part Symbol

    Part Symbol

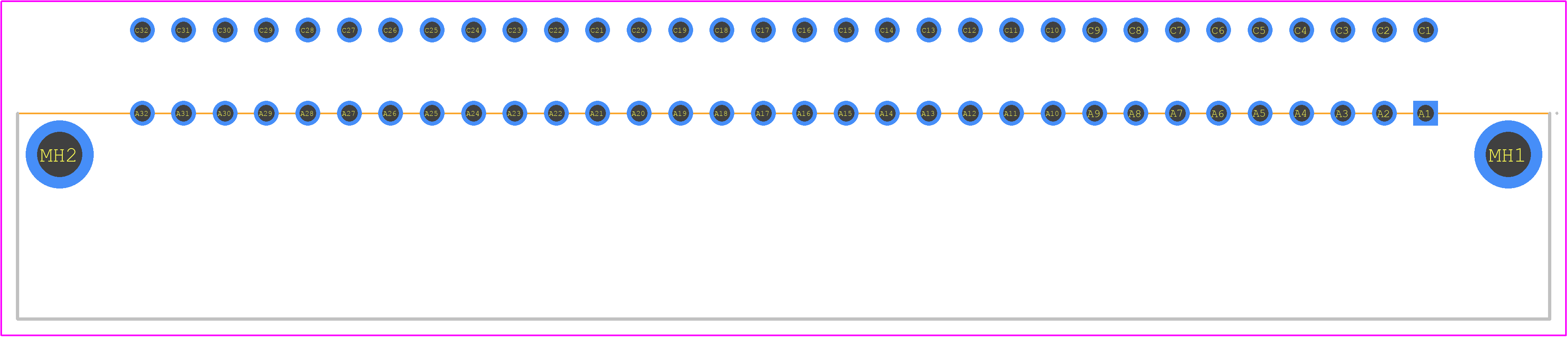

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

5536356-5 Part Data Attributes

Parametric Data
5536356-5 TE Connectivity
Buy Now Datasheet
Compare Parts:
5536356-5 TE Connectivity ASSY,PIN,EUROCARD,"C",LEAD-FREE,A&C,64/9
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TE CONNECTIVITY LTD
Reach Compliance Code compliant
Factory Lead Time 9 Weeks, 3 Days
Samacsys Manufacturer TE Connectivity
Additional Feature STANDARD: DIN 41612
Board Mounting Option BOARD LOCK
Body Breadth 0.437 inch
Body Depth 0.43 inch
Body Length 3.7 inch
Body/Shell Style PLUG
Connector Type BOARD EURO CONNECTOR
Contact Finish Mating NOT APPLICABLE
Contact Gender MALE
Contact Material NOT APPLICABLE
Contact Style SQ PIN-SKT
DIN Conformance NO
EMI Shielded NO
Empty Shell YES
Filter Feature NO
IEC Conformance NO
Insulator Color GRAY
Insulator Material GLASS FILLED POLYESTER
MIL Conformance NO
Mains Connector Rating 1.5A
Mating Contact Pitch 0.1 inch
Mating Contact Row Spacing 0.1 inch
Mixed Contacts NO
Mounting Option 1 LOCKING
Mounting Style RIGHT ANGLE
Mounting Type BOARD
Name of Rows Loaded A,C
Number Of Connectors ONE
Number Of PCB Rows 2
Number of Ports 1
Number of Rows Loaded 3
Operating Temperature-Max 105 °C
Operating Temperature-Min -55 °C
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
PCB Contact Row Spacing 5.08 mm
Panel Mount NO
Plating Thickness 3u inch
Polarization Key POLARIZED
Rated Current (Signal) 1.5 A
Reference Standard UL
Terminal Length 0.104 inch
Terminal Pitch 2.54 mm
Termination Type SOLDER
Total Number of Contacts 64
UL Flammability Code 94V-0
