5501MBLKREDGRN Information
5501MBLKREDGRN by E-Switch Inc is a Pushbutton Switch.
Pushbutton Switches are under the broader part category of Switches.
Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.
Price & Stock for 5501MBLKREDGRN
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
16N1392
|
Newark | Pb Sw, Spdt, 0.3A, 12V, Grn/Red, Tht, Product Range:5500 Series, Panel Cutout Diameter:-, Contact Configuration:Spdt, Switch Operation:Momentary, Pushbutton Actuator Style:Square, Actuator/Cap Colour:Black, Contact Current Ac Max:-Rohs Compliant: Yes |E-Switch 5501MBLKREDGRN RoHS: Compliant Min Qty: 500 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$3.6000 | Buy Now |
|
DISTI #
EG171571-ND
|
DigiKey | SWITCH PUSH SPDT 0.3A 12V Min Qty: 1 Lead time: 12 Weeks Container: Bulk |
459 In Stock |
|
$3.9203 / $6.1100 | Buy Now |
|
DISTI #
612-5501MBLKREDGRN
|
Mouser Electronics | Pushbutton Switches PUSHBUTTON RoHS: Compliant | 30 |
|
$3.9200 / $6.1100 | Buy Now |
|
DISTI #
72100813
|
RS | Pushbutton Switch,5500 Series, SPDT, ON-MOM, Blk Cap, Red/Green LED,300mA,12VDC, PC Min Qty: 500 Package Multiple: 1 Container: Bulk | 0 |
|
$6.0600 | RFQ |
|
DISTI #
69080287
|
Verical | Switch Push Button N.O./N.C. SPDT Button 0.3A 12VDC Momentary Contact PC Pins Thru-Hole Min Qty: 10 Package Multiple: 5 Date Code: 2214 | Americas - 200 |
|
$6.8250 / $11.5960 | Buy Now |
|
DISTI #
5501MBLKREDGRN
|
TME | Switch: push-button, Pos: 2, SPDT, 0.012A/24VDC, ON-(ON), red/green Min Qty: 500 | 0 |
|
$5.4200 | RFQ |
|
|
Master Electronics | Momentary Push Button - SPDT - 300mA@12V - Black Button - Red & Green LED - PCB Through Hole RoHS: Compliant |
200 In Stock |
|
$4.0700 / $8.9200 | Buy Now |
Part Details for 5501MBLKREDGRN

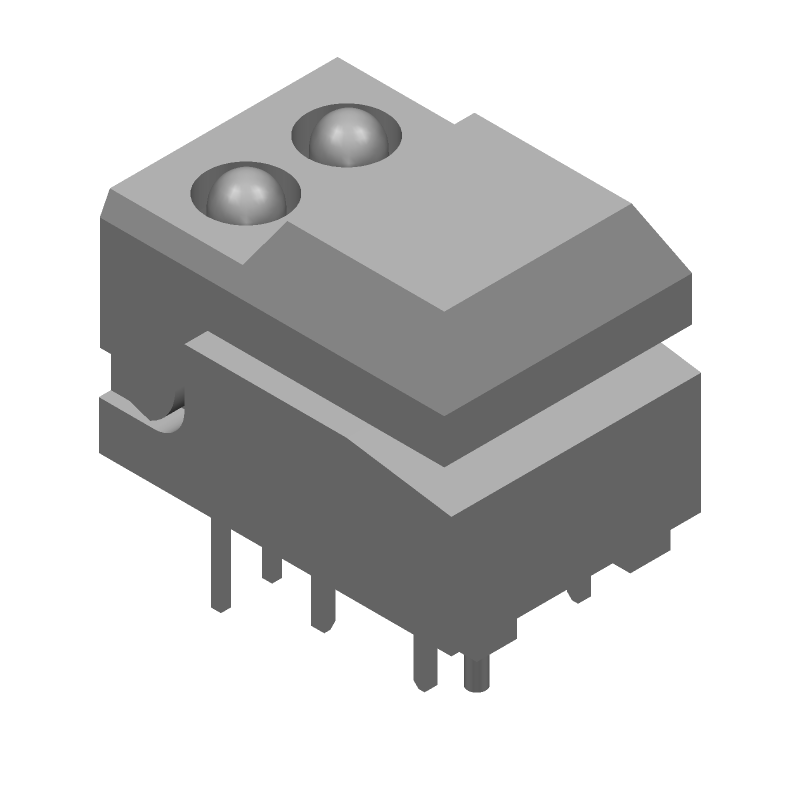

5501MBLKREDGRN CAD Models
5501MBLKREDGRN Part Data Attributes
|
|
5501MBLKREDGRN
E-Switch Inc
Buy Now
Datasheet
|
Compare Parts:
5501MBLKREDGRN
E-Switch Inc
Pushbutton Switch, SPDT, Momentary, 0.3A, 12VDC, 10 PCB Hole Cnt, Solder Terminal, Through Hole-straight
|
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | E-SWITCH INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.50.90.31 | |
| Samacsys Manufacturer | E-Switch | |
| Actuator Length | 0.248 inch | |
| Actuator Travel | 2.4892 mm | |
| Actuator Type | PUSHBUTTON | |
| Additional Feature | RED & GREEN LED COLOR | |
| Body Breadth | 12.3952 mm | |
| Body Height | 8.001 mm | |
| Center Contact Material | COPPER ALLOY | |
| Center Contact Plating | GOLD OVER NICKEL | |
| Contact Current(DC)-Max | 0.3 A | |
| Contact (DC) Max Rating R Load | 0.3A@12VDC | |
| Contact Resistance | 0.05 mΩ | |
| Contact Voltage(DC)-Max | 12 V | |
| Dielectric Withstand Volts | 1000VAC V | |
| Electrical Life | 500000 Cycle(s) | |
| End Contact Material | COPPER ALLOY | |
| End Contact Plating | GOLD OVER NICKEL | |
| Housing Material | NYLON | |
| Illumination | LED | |
| Insulation Resistance | 50000000 Ω | |
| Mounting Feature | THROUGH HOLE-STRAIGHT | |
| Operating Temperature-Max | 65 °C | |
| Operating Temperature-Min | -25 °C | |
| PCB Hole Count | 10 | |
| Surface Mount | NO | |
| Switch Action | MOMENTARY | |
| Switch Function | SPDT | |
| Switch Type | PUSHBUTTON SWITCH | |
| Terminal Length | 0.138 inch | |
| Terminal Material | COPPER ALLOY | |
| Termination Type | SOLDER |
