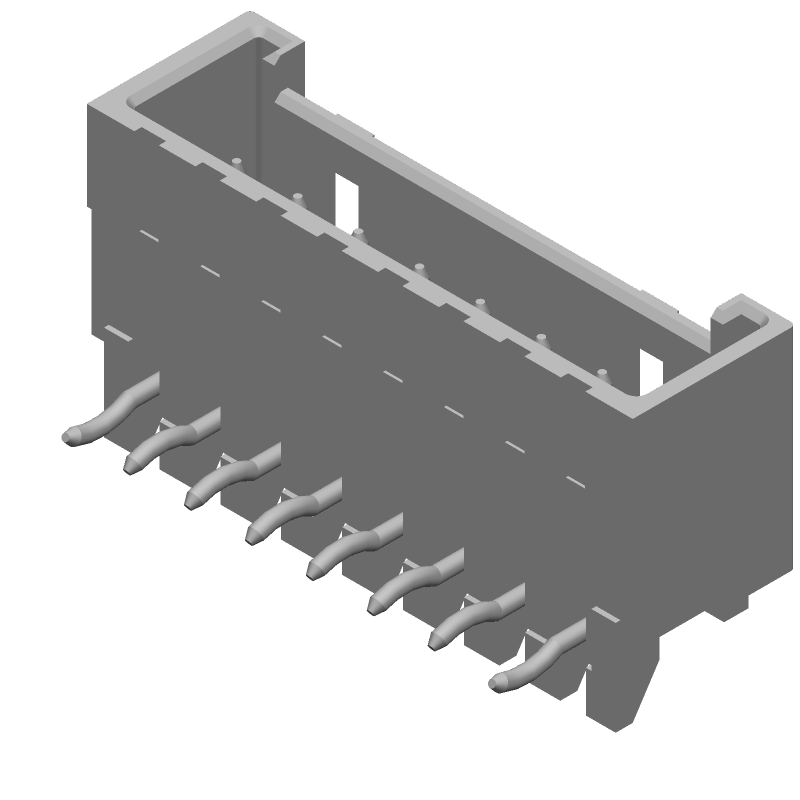

53426-0810 by: Molex

Board Connector, 8 Contact(s), 1 Row(s), Male, Right Angle, 0.098 inch Pitch, Solder Terminal, White Insulator, Receptacle, LEAD FREE

Part Details for 53426-0810 by Molex

Results Overview of 53426-0810 by Molex

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics

53426-0810 Information

53426-0810 by Molex is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for 53426-0810

Part # Distributor Description Stock Price Buy
DISTI # 01AH1429
Newark Connector, Header, 8Pos, 1Row, 2.5Mm, Connector Systems:Wire-To-Board, Pitch Spacing:2.5Mm, No. Of Rows:1Rows, No. Of Contacts:8Contacts, Contact Termination Type:Through Hole Right Angle, Product Range:Mini-Lock 53426 Series Rohs Compliant: Yes |Molex 53426-0810 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 231
  • 1 $0.1130
  • 10 $0.1130
  • 25 $0.1130
  • 50 $0.1130
  • 100 $0.1130
  • 250 $0.1130
  • 500 $0.1130
  • 1,000 $0.1130
$0.1130 Buy Now
DISTI # 01AH1429
Avnet Americas Conn Shrouded Header HDR 8 POS 2.5mm Solder RA Thru-Hole Tray - Bulk (Alt: 01AH1429) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 18 Weeks, 3 Days Container: Bulk 231 Partner Stock
  • 1 $0.5630
  • 10 $0.4340
  • 25 $0.4230
  • 50 $0.4120
  • 100 $0.4010
$0.4010 / $0.5630 Buy Now
DISTI # 0534260810
Avnet Americas Conn Shrouded Header HDR 8 POS 2.5mm Solder RA Thru-Hole Tray - Trays (Alt: 0534260810) RoHS: Compliant Min Qty: 8000 Package Multiple: 2000 Lead time: 15 Weeks, 0 Days Container: Tray 0
  • 8,000 $0.3077
  • 12,000 $0.3048
  • 20,000 $0.2646
  • 40,000 $0.2548
  • 80,000 $0.2382
$0.2382 / $0.3077 Buy Now
DISTI # 538-53426-0810
Mouser Electronics Headers & Wire Housings 2.5 WTB WAFER ASSY RA W/KINK 8CKT RoHS: Compliant 4284
  • 1 $0.5800
  • 10 $0.4730
  • 25 $0.3940
  • 100 $0.3930
  • 500 $0.3340
  • 1,000 $0.3150
  • 4,000 $0.3140
$0.3140 / $0.5800 Buy Now
DISTI # 71464537
RS 2.5 WtB Wafer Assy RA W/Kink 8Ckt Min Qty: 200 Package Multiple: 1 Container: Bulk 0
  • 200 $0.6400
  • 400 $0.5900
  • 800 $0.5100
$0.5100 / $0.6400 RFQ
Onlinecomponents.com Conn Shrouded Header HDR 8 POS 2.5mm Solder RA Thru-Hole Mini-Lock™ Tray RoHS: Compliant 12261 Partner Stock
  • 200 $0.3970
  • 1,800 $0.3850
  • 3,500 $0.3780
  • 8,000 $0.3440
  • 10,000 $0.3270
$0.3270 / $0.3970 Buy Now
DISTI # 65679759
Verical Conn Shrouded Header (4 Sides) HDR 8 POS 2.5mm Solder RA Side Entry Thru-Hole Mini-Lock Tray RoHS: Compliant Min Qty: 161 Package Multiple: 1 Americas - 12261
  • 1 $0.3900
  • 900 $0.3800
  • 1,800 $0.3700
  • 8,000 $0.3400
$0.3400 / $0.3900 Buy Now
DISTI # 62443493
Verical Conn Shrouded Header (4 Sides) HDR 8 POS 2.5mm Solder RA Side Entry Thru-Hole Mini-Lock Tray RoHS: Compliant Min Qty: 146 Package Multiple: 1 Date Code: 2201 Americas - 7680
  • 146 $0.5601
  • 250 $0.5376
  • 500 $0.5182
  • 1,000 $0.5013
  • 2,500 $0.4865
  • 5,000 $0.4734
$0.4734 / $0.5601 Buy Now
DISTI # 81392178
Verical Conn Shrouded Header (4 Sides) HDR 8 POS 2.5mm Solder RA Side Entry Thru-Hole Mini-Lock Tray RoHS: Compliant Min Qty: 2000 Package Multiple: 500 Date Code: 2207 Americas - 6000
  • 2,000 $0.2590
$0.2590 Buy Now
DISTI # 30586973
Verical Conn Shrouded Header (4 Sides) HDR 8 POS 2.5mm Solder RA Side Entry Thru-Hole Mini-Lock Tray RoHS: Compliant Min Qty: 112 Package Multiple: 1 Americas - 121
  • 112 $0.1740
$0.1740 Buy Now
Quest Components 8 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER 6144
  • 1 $1.4800
  • 1,352 $0.5180
  • 2,897 $0.4440
$0.4440 / $1.4800 Buy Now
DISTI # 53426-0810
TTI Headers & Wire Housings 2.5 WTB WAFER ASSY RA W/KINK 8CKT RoHS: Compliant pbFree: Pb-Free Min Qty: 100 Package Multiple: 100 Container: Tray Americas - 1100
In Stock
  • 100 $0.3980
  • 500 $0.3600
  • 1,000 $0.3430
  • 1,800 $0.3310
  • 4,000 $0.3190
  • 8,000 $0.3130
  • 10,000 $0.3070
$0.3070 / $0.3980 Buy Now
DISTI # 53426-0810
IBS Electronics CONN SHROUDED HEADER (4 SIDES) HDR 8 POS 2.5MM SOLDER RA SIDE ENTRY THRU-HOLE MINI-LOCK TRAY Min Qty: 342 Package Multiple: 1 12261
  • 342 $0.3875
  • 900 $0.3875
  • 1,800 $0.3750
  • 3,500 $0.3688
  • 8,000 $0.3350
  • 10,000 $0.3187
$0.3187 / $0.3875 Buy Now
Master Electronics Conn Shrouded Header HDR 8 POS 2.5mm Solder RA Thru-Hole Mini-Lock™ Tray RoHS: Compliant 12261 Partner Stock
  • 200 $0.3970
  • 1,800 $0.3850
  • 3,500 $0.3780
  • 8,000 $0.3440
  • 10,000 $0.3270
$0.3270 / $0.3970 Buy Now

Part Details for 53426-0810

53426-0810 CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

53426-0810 Part Data Attributes

Parametric Data
53426-0810 Molex
Buy Now Datasheet
Compare Parts:
53426-0810 Molex Board Connector, 8 Contact(s), 1 Row(s), Male, Right Angle, 0.098 inch Pitch, Solder Terminal, White Insulator, Receptacle, LEAD FREE
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MOLEX LLC
Package Description LEAD FREE
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8536.69.40.40
Factory Lead Time 18 Weeks, 3 Days
Samacsys Manufacturer Molex
Additional Feature SHROUDED
Body Breadth 0.264 inch
Body Depth 0.453 inch
Body Length 0.882 inch
Body/Shell Style RECEPTACLE
Connector Type BOARD CONNECTOR
Contact Finish Mating NOT SPECIFIED
Contact Finish Termination TIN
Contact Gender MALE
Contact Material NOT SPECIFIED
Contact Pattern RECTANGULAR
Contact Resistance 20 mΩ
Contact Style SQ PIN-SKT
DIN Conformance NO
Dielectric Withstanding Voltage 1000VAC V
Durability 30 Cycles
Filter Feature NO
IEC Conformance NO
Insertion Force-Max 8.0064 N
Insulation Resistance 1000000000 Ω
Insulator Color WHITE
Insulator Material GLASS FILLED POLYESTER
JESD-609 Code e3
MIL Conformance NO
Mating Contact Pitch 0.098 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts NO
Mounting Style RIGHT ANGLE
Mounting Type BOARD
Number Of Connectors ONE
Number Of PCB Rows 1
Number of Rows Loaded 1
Operating Temperature-Max 105 °C
Operating Temperature-Min -40 °C
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
Polarization Key POLARIZED HOUSING
Rated Current (Signal) 3 A
Reference Standard UL, CSA
Terminal Length 0.134 inch
Terminal Pitch 2.5 mm
Termination Type SOLDER
Total Number of Contacts 8
UL Flammability Code 94V-0
Withdrawl Force-Min 1.2232 N
