53408-0809 by: Molex

Board Stacking Connector, 80 Contact(s), 2 Row(s), Male, Straight, 0.039 inch Pitch, Surface Mount Terminal, Plug,

Part Details for 53408-0809 by Molex

Results Overview of 53408-0809 by Molex

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

53408-0809 Information

53408-0809 by Molex is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for 53408-0809

Part # Distributor Description Stock Price Buy
Bristol Electronics   50
RFQ

Part Details for 53408-0809

53408-0809 Part Data Attributes

Parametric Data
53408-0809 Molex
Buy Now Datasheet
Compare Parts:

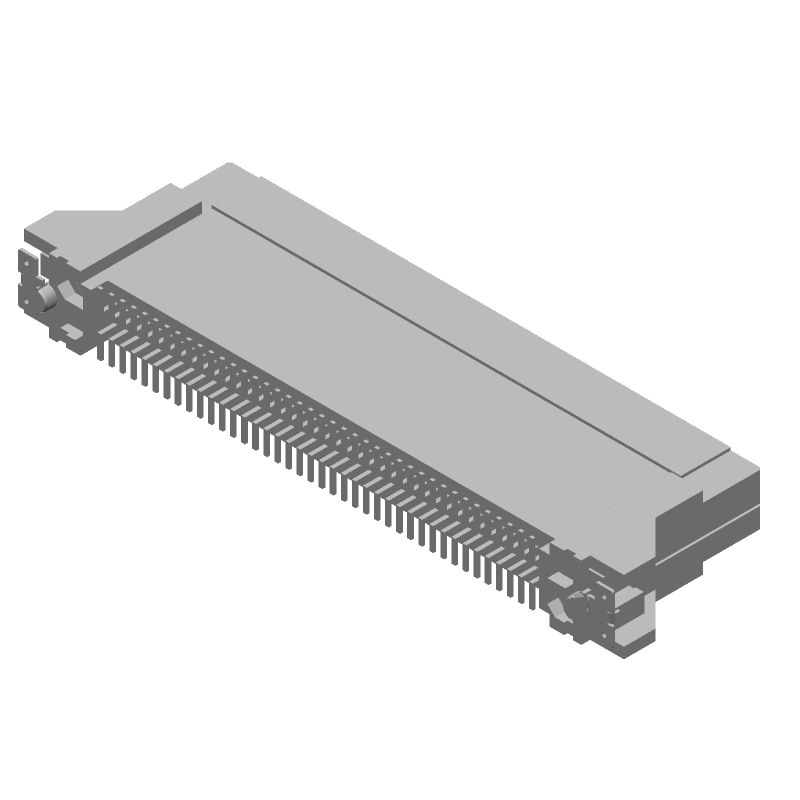

53408-0809 Molex Board Stacking Connector, 80 Contact(s), 2 Row(s), Male, Straight, 0.039 inch Pitch, Surface Mount Terminal, Plug,
Rohs Code No
Part Life Cycle Code Obsolete
Ihs Manufacturer MOLEX LLC
Reach Compliance Code unknown
ECCN Code EAR99
HTS Code 8536.69.40.40
Samacsys Manufacturer Molex
Additional Feature POLARIZATION AVAILABLE
Board Mounting Option LOCATING POSTS
Body Breadth 0.26 inch
Body Depth 0.644 inch
Body Length 2.134 inch
Body/Shell Style PLUG
Connector Type BOARD STACKING CONNECTOR
Contact Finish Mating NOT SPECIFIED
Contact Gender MALE
Contact Material NOT SPECIFIED
Contact Pattern RECTANGULAR
Contact Resistance 70 mΩ
DIN Conformance NO
Dielectric Withstanding Voltage 200VAC V
Filter Feature NO
IEC Conformance NO
Insertion Force-Max LIF N
Insulation Resistance 1000000000 Ω
Insulator Material GLASS FILLED LIQUID CRYSTAL POLYMER
MIL Conformance NO
Mating Contact Pitch 0.039 inch
Mating Information 52584-0809
Mixed Contacts NO
Mounting Style STRAIGHT
Mounting Type BOARD
Number Of Connectors ONE
Number Of PCB Rows 2
Number of Rows Loaded 2
Operating Temperature-Max 85 °C
Operating Temperature-Min -55 °C
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
PCB Contact Row Spacing 3.7846 mm
Plating Thickness 10u inch
Rated Current (Signal) 0.5 A
Reference Standard UL
Terminal Pitch 1 mm
Termination Type SURFACE MOUNT
Total Number of Contacts 80
UL Flammability Code 94V-0
Withdrawl Force-Min LIF N
