Connectors / Headers and Edge Type Connectors / 51102-0900
Datasheets

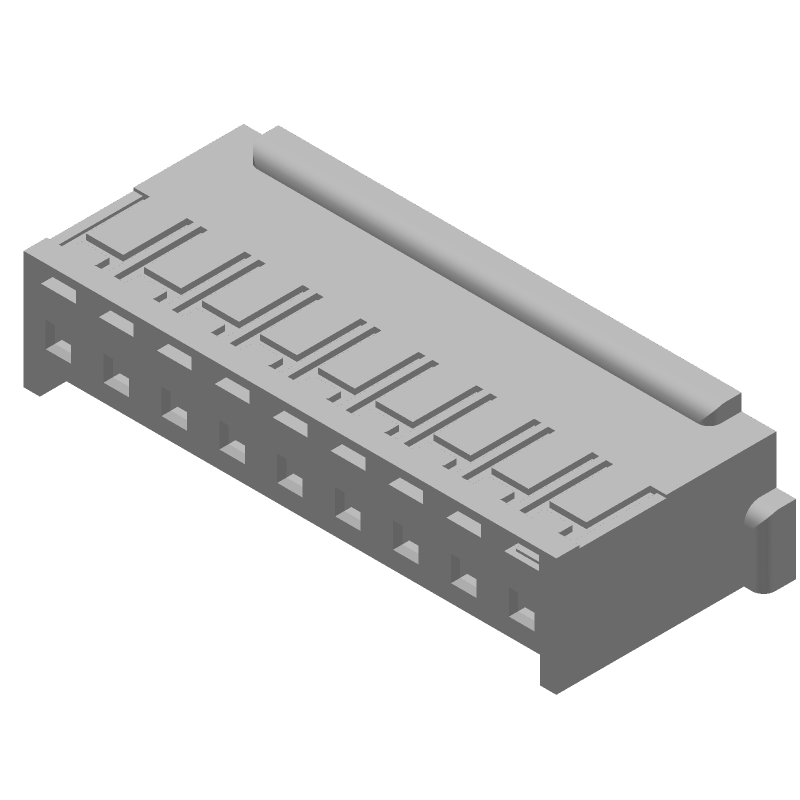

51102-0900 by: Molex

Board Connector, 9 Contact(s), 1 Row(s), Female, Straight, 0.098 inch Pitch, Crimp Terminal, Locking, White Insulator, Plug,

Part Details for 51102-0900 by Molex

Results Overview of 51102-0900 by Molex

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Space Technology Aerospace and Defense Transportation and Logistics Renewable Energy Automotive Robotics and Drones

51102-0900 Information

51102-0900 by Molex is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for 51102-0900

Part # Distributor Description Stock Price Buy
DISTI # 4252934
Farnell CONNECTOR HOUSING, RCPT, 9POS, 2.5MM RoHS: Compliant Min Qty: 400 Lead time: 1 Weeks, 2 Days Container: Each 1394
  • 400 $0.3195
  • 1,200 $0.2290
$0.2290 / $0.3195 Buy Now
DISTI # 0511020900
Avnet Americas - Bulk (Alt: 0511020900) RoHS: Compliant Min Qty: 8000 Package Multiple: 500 Lead time: 111 Weeks, 0 Days Container: Bulk 0
RFQ
Onlinecomponents.com Conn Housing RCP 9 POS 2.5mm Crimp ST Cable Mount Mini-Lock™ Bag RoHS: Compliant 2787 Partner Stock
  • 368 $0.1887
  • 4,000 $0.1816
  • 8,000 $0.1724
  • 21,000 $0.1663
  • 65,000 $0.1612
$0.1612 / $0.1887 Buy Now
DISTI # 16858203
Verical Conn Housing RCP 9 POS 2.5mm Crimp ST Cable Mount White Mini-Lock™ Bag RoHS: Compliant Min Qty: 348 Package Multiple: 1 Americas - 2787
  • 348 $0.1800
$0.1800 Buy Now
DISTI # 51102-0900
IBS Electronics 2.50MM PITCH MINI-LOCK WIRE-TO-BOARD HOUSING FRICTION LOCK 9 CIRCUITS NATURAL Min Qty: 750 Package Multiple: 1 2787
  • 750 $0.1800
$0.1800 Buy Now
Master Electronics Conn Housing RCP 9 POS 2.5mm Crimp ST Cable Mount Mini-Lock™ Bag RoHS: Compliant 2787 Partner Stock
  • 368 $0.1887
  • 4,000 $0.1816
  • 8,000 $0.1724
  • 21,000 $0.1663
  • 65,000 $0.1612
$0.1612 / $0.1887 Buy Now

Part Details for 51102-0900

51102-0900 Part Data Attributes

Parametric Data
51102-0900 Molex
Buy Now Datasheet
Compare Parts:
51102-0900 Molex Board Connector, 9 Contact(s), 1 Row(s), Female, Straight, 0.098 inch Pitch, Crimp Terminal, Locking, White Insulator, Plug,
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Obsolete
Ihs Manufacturer MOLEX LLC
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8536.69.40.40
Factory Lead Time 111 Weeks
Samacsys Manufacturer Molex
Additional Feature COMPATIBLE CONTACTS: 50351-8000; 50351-8100
Body Breadth 0.228 inch
Body Depth 0.374 inch
Body Length 0.972 inch
Body/Shell Style PLUG
Connector Type BOARD CONNECTOR
Contact Design STAMPED, STRIP
Contact Finish Mating NOT SPECIFIED
Contact Finish Termination NOT APPLICABLE
Contact Gender FEMALE
Contact Material NOT SPECIFIED
Contact Pattern RECTANGULAR
Contact Resistance 20 mΩ
Contact Style SQ PIN-SKT
DIN Conformance NO
Dielectric Withstanding Voltage 1000VAC V
Durability 30 Cycles
Filter Feature NO
IEC Conformance NO
Insertion Force-Max 7.1168 N
Insulation Diameter-Min 0.045 inch
Insulation Resistance 1000000000 Ω
Insulator Color WHITE
Insulator Material POLYESTER
MIL Conformance NO
Mating Contact Pitch 0.098 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts NO
Mounting Option 1 LOCKING
Mounting Option 2 FRICTION LOCK
Mounting Style STRAIGHT
Mounting Type CABLE
Number Of Connectors ONE
Number of Rows Loaded 1
Operating Temperature-Max 105 °C
Operating Temperature-Min -40 °C
Option GENERAL PURPOSE
Polarization Key POLARIZED HOUSING
Rated Current (Signal) 3 A
Reference Standard UL
Termination Type CRIMP
Total Number of Contacts 9
UL Flammability Code 94V-0
Wire Size-Max 22 AWG
Wire Size-Min 28 AWG
Withdrawl Force-Min 1.1954 N

Alternate Parts for 51102-0900

This table gives cross-reference parts and alternative options found for 51102-0900. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 51102-0900, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
14-60-0097 Molex $52.1651 Board Connector, 9 Contact(s), 1 Row(s), Female, 0.1 inch Pitch, IDC Terminal, Locking, Black Insulator, Plug 51102-0900 vs 14-60-0097
14-56-3098 Molex $52.7709 Board Connector, 9 Contact(s), 1 Row(s), Female, 0.1 inch Pitch, IDC Terminal, Locking, Black Insulator, Plug 51102-0900 vs 14-56-3098
90650-0029 Molex Check for Price Board Connector, 9 Contact(s), 1 Row(s), Female, 0.098 inch Pitch, IDC Terminal, Guide Pin, Receptacle 51102-0900 vs 90650-0029
930F-009-224 Methode Electronics Inc Check for Price Board Connector, 9 Contact(s), 1 Row(s), Female, 0.1 inch Pitch, IDC Terminal, Black Insulator, Plug 51102-0900 vs 930F-009-224
14-56-6098 Molex Check for Price Board Connector, 9 Contact(s), 1 Row(s), Female, 0.1 inch Pitch, IDC Terminal, Black Insulator, Plug 51102-0900 vs 14-56-6098
930F-009-222 Methode Electronics Inc Check for Price Board Connector, 9 Contact(s), 1 Row(s), Female, 0.1 inch Pitch, IDC Terminal, Black Insulator, Plug 51102-0900 vs 930F-009-222
103978-8 TE Connectivity Check for Price 9 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC, RECEPTACLE 51102-0900 vs 103978-8
14-60-0099 Molex Check for Price Board Connector, 9 Contact(s), 1 Row(s), Female, 0.1 inch Pitch, IDC Terminal, Locking, Black Insulator, Plug 51102-0900 vs 14-60-0099
14-56-3096 Molex Check for Price Board Connector, 9 Contact(s), 1 Row(s), Female, 0.1 inch Pitch, IDC Terminal, Locking, Black Insulator, Plug 51102-0900 vs 14-56-3096
MTE39 Adam Technologies Inc Check for Price Board Connector, 39 Contact(s), 1 Row(s), Female, 0.1 inch Pitch, Crimp Terminal, Locking, Plug 51102-0900 vs MTE39

51102-0900 Frequently Asked Questions (FAQ)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs).

  • Yes, the 51102-0900 is designed to withstand vibrations up to 10G (10-2000 Hz) and is suitable for use in high-vibration environments.

  • The 51102-0900 has a rating of IP67, which means it is protected against dust and can withstand immersion in water up to 1m (3.3ft) for 30 minutes. However, it's recommended to use additional sealing or protection for extended outdoor use.

  • The 51102-0900 has an operating temperature range of -40°C to 105°C (-40°F to 221°F).

  • No, the 51102-0900 is designed for use with wire gauges 20-24 AWG. Using a larger wire gauge may not provide a secure connection and may damage the connector.
