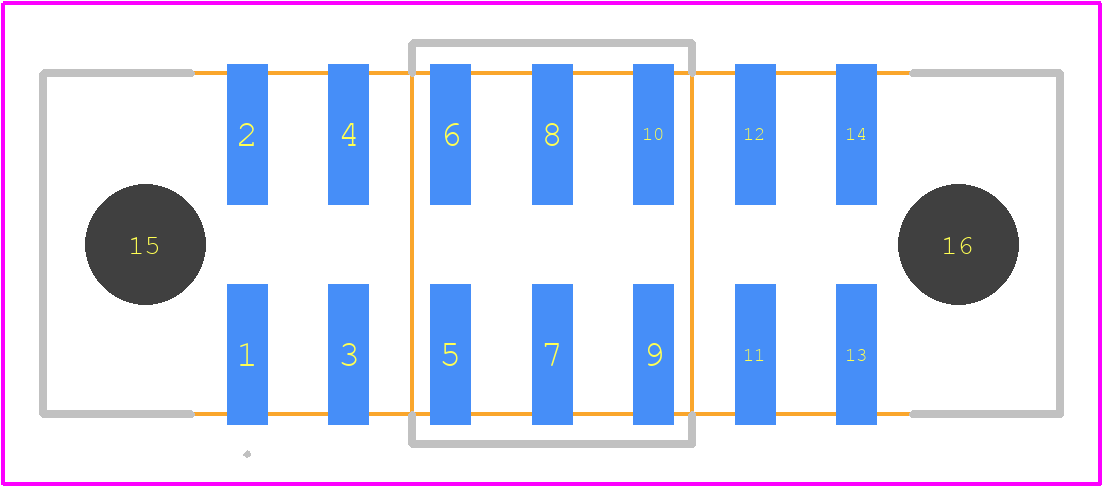

Footprint
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 511.068.803.014.010 by ODU Steckverbindungssysteme Gmbh & Co Kg
Results Overview of 511.068.803.014.010 by ODU Steckverbindungssysteme Gmbh & Co Kg
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
511.068.803.014.010 Information
511.068.803.014.010 by ODU Steckverbindungssysteme Gmbh & Co Kg is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for 511.068.803.014.010
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | 356 |
|
RFQ | ||
|
|
Quest Components | 284 |
|
$6.5700 / $13.1400 | Buy Now |
Part Details for 511.068.803.014.010
511.068.803.014.010 CAD Models
511.068.803.014.010 Part Data Attributes
|
|
511.068.803.014.010
ODU Steckverbindungssysteme Gmbh & Co Kg
Buy Now
Datasheet
|
Compare Parts:
511.068.803.014.010
ODU Steckverbindungssysteme Gmbh & Co Kg
Board Connector, 14 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ODU STECKVERBINDUNGSSYSTEME GMBH & CO KG | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.69.40.40 | |
| Samacsys Manufacturer | ODU | |
| Additional Feature | LOW PROFILE, POLARIZED | |
| Connector Type | BOARD CONNECTOR | |
| Contact Finish Mating | GOLD (20) OVER NICKEL | |
| Contact Finish Termination | TIN OVER NICKEL | |
| Contact Gender | MALE | |
| Contact Material | COPPER ALLOY | |
| DIN Conformance | NO | |
| Filter Feature | NO | |
| IEC Conformance | NO | |
| JESD-609 Code | e3 | |
| MIL Conformance | NO | |
| Mixed Contacts | NO | |
| Mounting Style | STRAIGHT | |
| Mounting Type | BOARD | |
| Number Of Connectors | ONE | |
| Number of Rows Loaded | 2 | |
| Option | GENERAL PURPOSE | |
| Terminal Pitch | 2.54 mm | |
| Termination Type | SURFACE MOUNT | |
| Total Number of Contacts | 14 | |
| UL Flammability Code | 94V-0 |
