51065-0200 by: Molex

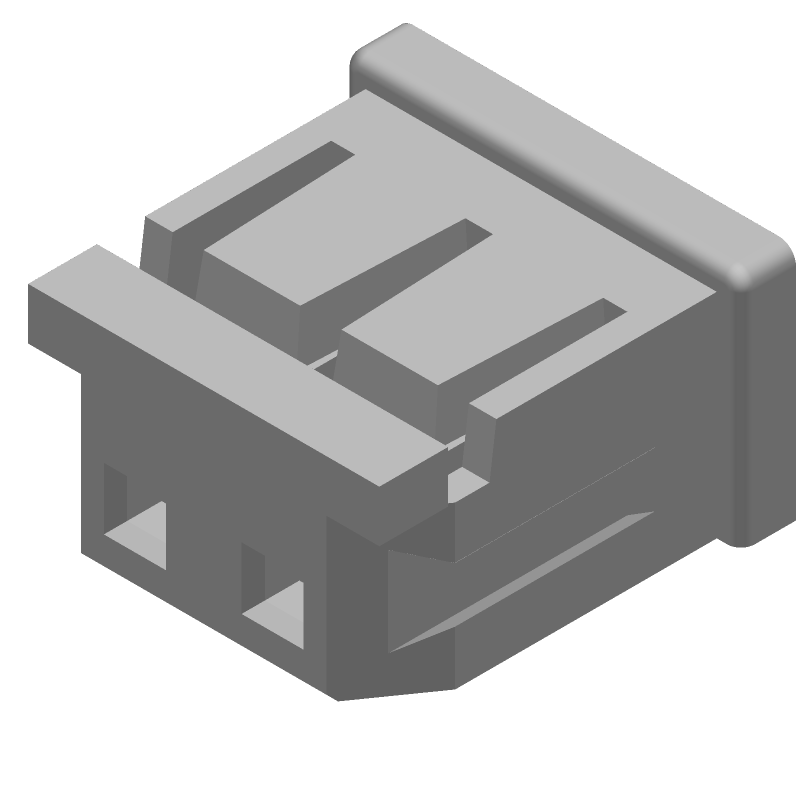

Board Connector, 2 Contact(s), 1 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, Locking, Natural Insulator, Receptacle,

Part Details for 51065-0200 by Molex

Results Overview of 51065-0200 by Molex

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

51065-0200 Information

51065-0200 by Molex is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Available Datasheets

Part # Manufacturer Description Datasheet
SF-NDYYYH0002-002M Amphenol Cables on Demand Amphenol SF-NDYYYH0002-002M 2m (6.6') 400GbE QSFP-DD Cable - Amphenol 400-Gigabit Ethernet Passive Copper QSFP Double Density Cable (Dual Entry 27 AWG) - QSFP-DD to QSFP-DD
CO-058BNCX200-200 Amphenol Cables on Demand Amphenol CO-058BNCX200-200 BNC Male to BNC Male (RG58) 50 Ohm Coaxial Cable Assembly 200ft
SF-NDVVYG0002-002M Amphenol Cables on Demand Amphenol SF-NDVVYG0002-002M 2m (6.6') 400GbE OSFP Cable - Amphenol 400-Gigabit Ethernet Passive Copper OSFP Cable (28 AWG) – OSFP to OSFP 2m (6.6')

Price & Stock for 51065-0200

Part # Distributor Description Stock Price Buy
DISTI # 57H2502
Newark Connector, Rcpt, 2Pos, 1Row, 2Mm, Product Range:Micro-Latch 51065, Gender:Receptacle, No. Of Positions:2Positions, Pitch Spacing:2Mm, For Use With:50212 Crimp Terminal, Contact Termination Type:Crimp, No. Of Contacts:2Contacts Rohs Compliant: Yes |Molex 51065-0200 (Alternate Part Number: 800753630642 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 1840
  • 1 $0.1020
  • 10 $0.0660
  • 25 $0.0630
  • 50 $0.0600
  • 100 $0.0560
  • 250 $0.0550
  • 500 $0.0530
  • 1,000 $0.0470
$0.0470 / $0.1020 Buy Now
DISTI # 0510650200
Avnet Americas Conn Housing Wire to Board Housing Receptacle 2 POS 2mm ST Cable Mount Bag - Bulk (Alt: 0510650200) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 20 Weeks, 0 Days Container: Bulk 83014
  • 1 $0.0489
  • 10 $0.0485
  • 30 $0.0478
  • 50 $0.0471
  • 100 $0.0464
$0.0464 / $0.0489 Buy Now
DISTI # 57H2502
Avnet Americas Conn Housing Wire to Board Housing Receptacle 2 POS 2mm ST Cable Mount Bag - Bulk (Alt: 57H2502) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks, 2 Days Container: Bulk 1840 Partner Stock
  • 1 $0.1060
  • 10 $0.0690
  • 25 $0.0680
  • 50 $0.0670
  • 100 $0.0640
$0.0640 / $0.1060 Buy Now
DISTI # 538-51065-0200
Mouser Electronics Headers & Wire Housings 2P FL WIRE TO BRDHSG RoHS: Compliant 142703
  • 1 $0.1000
  • 10 $0.0720
  • 25 $0.0650
  • 100 $0.0610
  • 250 $0.0560
  • 1,000 $0.0490
  • 3,000 $0.0470
  • 12,000 $0.0450
  • 21,000 $0.0420
$0.0420 / $0.1000 Buy Now
DISTI # 70372673
RS MICRO-LATCH Series 2mm Pitch 2 Way 1 Row Female Straight PCB Housing 51065 Min Qty: 2000 Package Multiple: 1 Lead time: 8 Weeks, 0 Days Container: Bulk 0
  • 2,000 $0.0880
  • 4,000 $0.0810
  • 8,000 $0.0700
$0.0700 / $0.0880 RFQ
Bisco Industries   430
Buy Now
Onlinecomponents.com Conn Housing F 2 POS 2mm Crimp ST Cable Mount Micro-Latch™ Bag RoHS: Compliant 5600 In Stock
  • 1 $0.0515
  • 2,000 $0.0468
  • 17,000 $0.0426
  • 34,000 $0.0410
  • 90,000 $0.0408
$0.0408 / $0.0515 Buy Now
Quest Components HEADER CONNECTOR,CABLE MNT,PLUG,2 CONTACTS,0.079 PITCH 5619
  • 1 $0.5000
  • 223 $0.1500
  • 2,668 $0.1000
$0.1000 / $0.5000 Buy Now
Quest Components HEADER CONNECTOR,CABLE MNT,PLUG,2 CONTACTS,0.079 PITCH 1
  • 1 $0.1400
$0.1400 Buy Now
DISTI # 51065-0200
TTI Headers & Wire Housings 2P FL WIRE TO BRDHSG RoHS: Compliant pbFree: Pb-Free Min Qty: 125 Package Multiple: 1 Container: Bulk Americas - 74487
In Stock
  • 125 $0.0400
$0.0400 Buy Now
DISTI # MX-51065-0200
TME Connector: wire-board, plug, female, PIN: 2, Micro-Latch, Pitch: 2mm Min Qty: 10 2207
  • 10 $0.1369
  • 200 $0.0980
  • 2,000 $0.0661
  • 5,000 $0.0541
$0.0541 / $0.1369 Buy Now
DISTI # 51065-0200
IBS Electronics 2.00MM PITCH MICRO-LATCH RECEPTACLE CRIMP HOUSING SINGLE ROW 2 CIRCUITS NATURAL Min Qty: 4000 Package Multiple: 1 48158
  • 4,000 $0.0400
  • 17,000 $0.0387
  • 34,000 $0.0375
$0.0375 / $0.0400 Buy Now
DISTI # MOL51065-0200
Interstate Connecting Components 2MM 2CKT RECEPTACLE HOUS 32110
  • 1 $0.0489
  • 4,000 $0.0411
  • 9,700 $0.0398
  • 19,400 $0.0392
  • 38,700 $0.0386
$0.0386 / $0.0489 Buy Now
Cytech Systems Limited   1500
RFQ
Master Electronics Conn Housing F 2 POS 2mm Crimp ST Cable Mount Micro-Latch™ Bag RoHS: Compliant 5600 In Stock
  • 1 $0.0515
  • 2,000 $0.0468
  • 17,000 $0.0426
  • 34,000 $0.0410
  • 90,000 $0.0408
$0.0408 / $0.0515 Buy Now
Vyrian Connectors 52459
RFQ

Part Details for 51065-0200

51065-0200 Part Data Attributes

Parametric Data
51065-0200 Molex
Buy Now Datasheet
Compare Parts:
51065-0200 Molex Board Connector, 2 Contact(s), 1 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, Locking, Natural Insulator, Receptacle,
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MOLEX LLC
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8536.69.40.40
Factory Lead Time 12 Weeks, 2 Days
Samacsys Manufacturer Molex
Additional Feature COMPATIBLE CONTACTS: 50212-8000; 50212-8100
Body Breadth 0.136 inch
Body Depth 0.224 inch
Body Length 0.228 inch
Body/Shell Style RECEPTACLE
Connector Type BOARD CONNECTOR
Contact Finish Mating NOT SPECIFIED
Contact Finish Termination NOT APPLICABLE
Contact Gender FEMALE
Contact Material NOT SPECIFIED
Contact Pattern RECTANGULAR
Contact Resistance 20 mΩ
Contact Style SQ PIN-SKT
DIN Conformance NO
Dielectric Withstanding Voltage 700VAC V
Filter Feature NO
IEC Conformance NO
Insulation Resistance 1000000000 Ω
Insulator Color NATURAL
Insulator Material POLYBUTYLENE TEREPHTHALATE
MIL Conformance NO
Mating Contact Pitch 0.079 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts NO
Mounting Option 1 LOCKING
Mounting Type CABLE
Number Of Connectors ONE
Number of Rows Loaded 1
Operating Temperature-Max 105 °C
Operating Temperature-Min -40 °C
Option GENERAL PURPOSE
Polarization Key POLARIZED HOUSING
Reference Standard UL, CSA
Termination Type CRIMP
Total Number of Contacts 2
UL Flammability Code 94V-0

Alternate Parts for 51065-0200

This table gives cross-reference parts and alternative options found for 51065-0200. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 51065-0200, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
35155-0200 Molex $0.0660 Board Connector, 2 Contact(s), 1 Row(s), Female, Straight, 0.098 inch Pitch, Crimp Terminal, Latch, Natural Insulator, Receptacle, 51065-0200 vs 35155-0200
51163-0200 Molex $0.1183 Board Connector, 2 Contact(s), 1 Row(s), Female, 0.098 inch Pitch, Crimp Terminal, Locking, Natural Insulator, Plug, 51065-0200 vs 51163-0200
66414-035LF Amphenol FCi Check for Price Board Connector, 2 Contact(s), 1 Row(s), Female, 0.1 inch Pitch, Crimp Terminal, Locking, Black Insulator, LEAD FREE 51065-0200 vs 66414-035LF
35155-0202 Molex Check for Price Board Connector, 2 Contact(s), 1 Row(s), Female, Straight, 0.098 inch Pitch, Crimp Terminal, Latch, Red Insulator, Receptacle 51065-0200 vs 35155-0202
1300-002 Methode Electronics Inc Check for Price Board Connector, 2 Contact(s), 1 Row(s), Female, 0.1 inch Pitch, Crimp Terminal, Red Insulator, Receptacle 51065-0200 vs 1300-002
65272-030LF Amphenol FCi Check for Price Board Connector, 2 Contact(s), 1 Row(s), Female, 0.1 inch Pitch, Crimp Terminal, Locking, Black Insulator, Receptacle, LEAD FREE 51065-0200 vs 65272-030LF
65039-235LF Amphenol FCi Check for Price Board Connector, 2 Contact(s), 1 Row(s), Female, 0.1 inch Pitch, Crimp Terminal, Latch, Black Insulator, LEAD FREE 51065-0200 vs 65039-235LF
87202-0200 Molex Check for Price Board Connector, 2 Contact(s), 1 Row(s), Female, 0.1 inch Pitch, Crimp Terminal, Locking, White Insulator, Plug 51065-0200 vs 87202-0200
51163-0201 Molex Check for Price Board Connector, 2 Contact(s), 1 Row(s), Female, 0.098 inch Pitch, Crimp Terminal, Locking, Black Insulator, Receptacle 51065-0200 vs 51163-0201
66414-035 Amphenol FCi Check for Price Board Connector, 2 Contact(s), 1 Row(s), Female, Crimp Terminal 51065-0200 vs 66414-035

51065-0200 Related Parts

51065-0200 Frequently Asked Questions (FAQ)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.

  • Yes, the 51065-0200 connector is designed to withstand vibrations and can be used in high-vibration applications. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.

  • The 51065-0200 connector has a IP67 rating, making it suitable for outdoor or harsh environmental conditions. However, it's crucial to follow proper sealing and installation procedures to maintain the IP67 rating.

  • The 51065-0200 connector has an operating temperature range of -40°C to 105°C (-40°F to 221°F). It's essential to ensure the connector is used within this temperature range to maintain its performance and reliability.

  • While the 51065-0200 connector is designed for 20 AWG wire, it can accommodate wire sizes between 18 AWG and 22 AWG. However, it's essential to verify the wire size and connector compatibility to ensure reliable connections.
