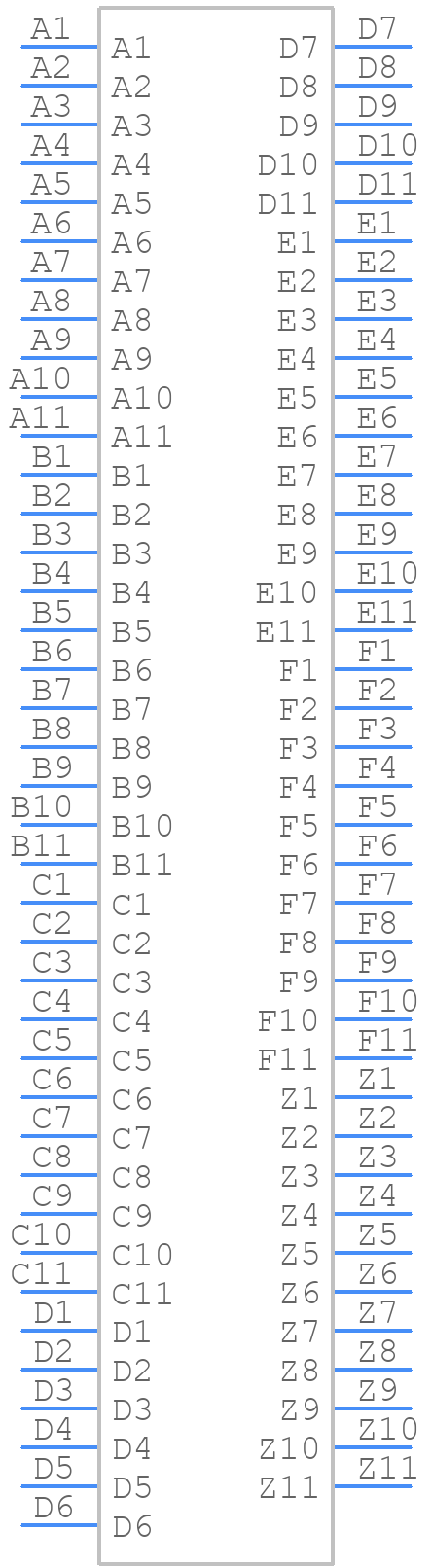

Part Symbol
-

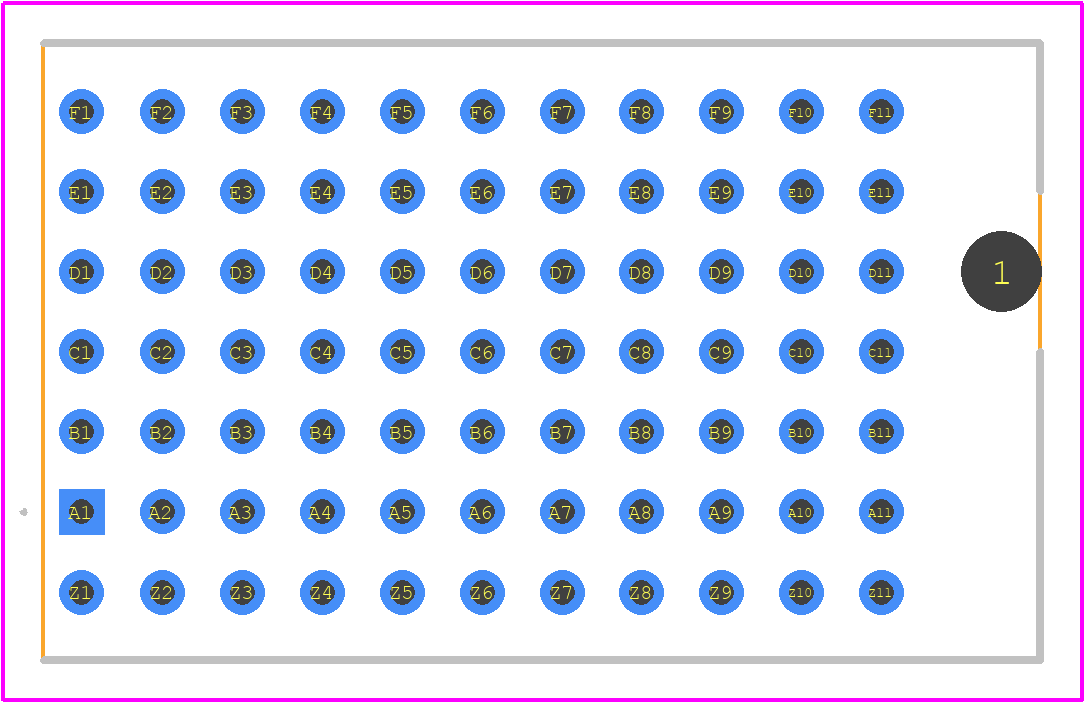

Footprint
-

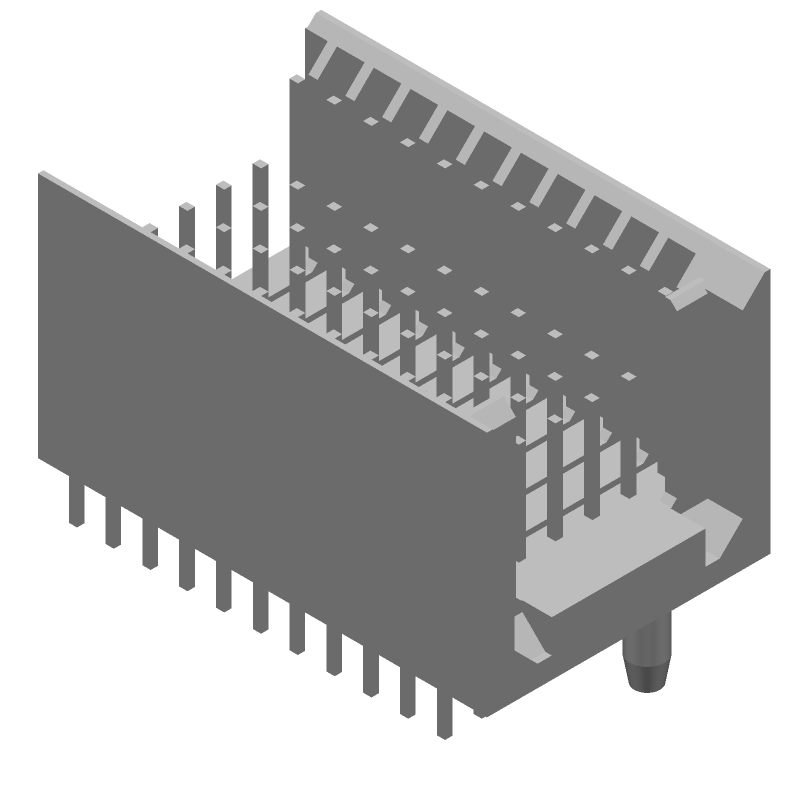

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 5106081-1 by TE Connectivity
Results Overview of 5106081-1 by TE Connectivity
- Distributor Offerings: (33 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
5106081-1 Information
5106081-1 by TE Connectivity is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for 5106081-1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
42K6989
|
Newark | Hard Metric Connector, Plug, 77 Position, Product Range:Z-Pack Series, No. Of Contacts:77Contacts, Pitch Spacing:2Mm, Gender:Header, Contact Termination Type:Press Fit, No. Of Rows:5Rows, Row Pitch:2Mm, Connector Polarization:End Rohs Compliant: Yes |Amp Te Connectivity 5106081-1 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 20 |
|
$2.2000 | Buy Now |
|
DISTI #
A97851-ND
|
DigiKey | CONN HEADER 77POS 2MM PRESS-FIT Min Qty: 1 Lead time: 7 Weeks Container: Tube |
136 In Stock |
|
$8.5005 / $13.8500 | Buy Now |
|
DISTI #
5106081-1
|
Avnet Americas | Conn Hard Metric Header 77 POS 2mm Press Fit ST Through Hole - Rail/Tube (Alt: 5106081-1) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 0 Weeks, 2 Days Container: Tube | 295292 Factory Stock |
|
$6.7701 / $7.1329 | Buy Now |
|
DISTI #
42K6989
|
Avnet Americas | Conn Hard Metric Header 77 POS 2mm Press Fit ST Through Hole - Bulk (Alt: 42K6989) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 2 Weeks, 2 Days Container: Bulk | 0 |
|
$10.3400 / $13.7300 | Buy Now |
|
DISTI #
571-5106081-1
|
Mouser Electronics | Hard Metric Connectors HDR C/077P VRT B-PLANE HM RoHS: Compliant | 271 |
|
$6.9200 / $13.8500 | Buy Now |
|
DISTI #
E02:0323_01926654
|
Arrow Electronics | Conn Hard Metric M 77 POS 2mm Press Fit ST Thru-Hole Tube RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 1 Weeks Date Code: 2433 | Europe - 233 |
|
$6.7284 / $11.3836 | Buy Now |
|
DISTI #
V36:1790_07463389
|
Arrow Electronics | Conn Hard Metric M 77 POS 2mm Press Fit ST Thru-Hole Tube RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 1 Weeks Date Code: 2125 | Americas - 28 |
|
$2.8950 / $3.9629 | Buy Now |
|
DISTI #
70041824
|
RS | Connectors, Hard Metric, HDR C/077P VRT B-PLANE HM Min Qty: 1 Package Multiple: 1 Container: Bulk | 21 |
|
$10.2100 / $13.2600 | Buy Now |
|
|
TE Connectivity | 2MM HM, HEADER, TYPE C PCB Connector Type: PCB Mount Header Data Rate: ≤1 Gb/s Number of Columns: 11 Number of Rows: 7 Backplane Architecture: Mezzanine PCB Mount Header ≤1 Gb/s 11 7 | Hard Metric Male Connector: Traditional Backplane & Mezzanine & 2Mm | Part Number: 5106081-1 | Internal Number: 5106081-1 | TE Connectivity RoHS: Compliant Min Qty: 1 | 136 |
|
$10.4300 / $12.9100 | Buy Now |
|
DISTI #
AMP5106081-1
|
Heilind Electronics | 2MM HM HEADER TYPE C | Americas - 0 in Stock |
|
$7.9618 / $9.0993 | Buy Now |
Part Details for 5106081-1
5106081-1 CAD Models
5106081-1 Part Data Attributes
|
|
5106081-1
TE Connectivity
Buy Now
Datasheet
|
Compare Parts:
5106081-1
TE Connectivity
2MM HM, HEADER, TYPE C
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TE CONNECTIVITY LTD | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.69.40.40 | |
| Factory Lead Time | 2 Weeks, 2 Days | |
| Samacsys Manufacturer | TE Connectivity | |
| Board Mounting Option | PEG | |
| Body Breadth | 0.606 inch | |
| Body Length | 0.98 inch | |
| Body/Shell Style | RECEPTACLE | |
| Connector Type | BOARD CONNECTOR | |
| Contact Finish Mating | NOT APPLICABLE | |
| Contact Gender | MALE | |
| Contact Material | NOT APPLICABLE | |
| Contact Pattern | RECTANGULAR | |
| Contact Resistance | 20 mΩ | |
| Contact Style | SQ PIN-SKT | |
| DIN Conformance | NO | |
| Durability | 250 Cycles | |
| EMI Shielded | NO | |
| Empty Shell | YES | |
| Filter Feature | NO | |
| IEC Conformance | NO | |
| Insulation Resistance | 10000000000 Ω | |
| Insulator Color | GRAY | |
| Insulator Material | GLASS FILLED POLYESTER | |
| MIL Conformance | NO | |
| Mains Connector Rating | 1.5A | |
| Mating Contact Pitch | 0.079 inch | |
| Mating Contact Row Spacing | 0.079 inch | |
| Mixed Contacts | NO | |
| Mounting Option 1 | LOCKING | |
| Mounting Style | STRAIGHT | |
| Mounting Type | BOARD | |
| Number Of Connectors | ONE | |
| Number Of PCB Rows | 7 | |
| Number of Ports | 1 | |
| Number of Rows Loaded | 7 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Option | GENERAL PURPOSE | |
| PCB Contact Pattern | RECTANGULAR | |
| PCB Contact Row Spacing | 2.0066 mm | |
| Panel Mount | NO | |
| Plating Thickness | 15u inch | |
| Polarization Key | POLARIZED | |
| Rated Current (Signal) | 1.5 A | |
| Reference Standard | UL | |
| Terminal Pitch | 2 mm | |
| Termination Type | PRESS FIT | |
| Total Number of Contacts | 77 | |
| UL Flammability Code | 94V-0 |
