502578-0300 Information
502578-0300 by Molex is a Telecom and Datacom Connector.
Telecom and Datacom Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for 502578-0300
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
56R1299
|
Newark | Conn Housing, Header, 3Pos, 1Row, 1.5Mm, Product Range:Clik-Mate 502578, Gender:Plug, No. Of Positions:3Positions, Pitch Spacing:1.5Mm, For Use With:502579, 503429 Crimp Terminals, Contact Termination Type:Crimp, No. Of Rows:1Rows Rohs Compliant: Yes |Molex 502578-0300 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 30963 |
|
$0.1010 | Buy Now |
|
DISTI #
39AH6323
|
Newark | Conn Housing, Header, 3Pos, 1Row, 1.5Mm, Pitch Spacing:1.5Mm, No. Of Contacts:3Contacts, Gender:Header, Product Range:Clik-Mate 502578 Series, Contact Termination Type:Crimp, No. Of Rows:1Rows, Contact Plating:-, Contact Material:-, Rohs Compliant: Yes |Molex 502578-0300 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 30789 |
|
$0.1970 / $0.3690 | Buy Now |
|
DISTI #
56R1299
|
Avnet Americas | Conn Housing PL 3 POS 1.5mm Crimp ST Bag - Bulk (Alt: 56R1299) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 26 Weeks, 3 Days Container: Bulk | 30963 Partner Stock |
|
$0.1600 / $0.2330 | Buy Now |
|
DISTI #
56R1299
|
Avnet Americas | Conn Housing PL 3 POS 1.5mm Crimp ST Bag - Bulk (Alt: 56R1299) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 26 Weeks, 3 Days Container: Bulk | 30963 Partner Stock |
|
$0.1600 / $0.2330 | Buy Now |
|
DISTI #
5025780300
|
Avnet Americas | Conn Housing PL 3 POS 1.5mm Crimp ST Bag - Bulk (Alt: 5025780300) RoHS: Compliant Min Qty: 40000 Package Multiple: 20000 Lead time: 10 Weeks, 0 Days Container: Bulk | 0 |
|
$0.1061 / $0.1129 | Buy Now |
|
DISTI #
5025780300
|
Avnet Americas | Conn Housing PL 3 POS 1.5mm Crimp ST Bag - Bulk (Alt: 5025780300) RoHS: Compliant Min Qty: 40000 Package Multiple: 20000 Lead time: 10 Weeks, 0 Days Container: Bulk | 0 |
|
$0.1061 / $0.1129 | Buy Now |
|
DISTI #
39AH6323
|
Avnet Americas | Conn Housing PL 3 POS 1.5mm Crimp ST Bag - Bulk (Alt: 39AH6323) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 39 Weeks, 4 Days Container: Bulk | 0 |
|
$0.1600 / $0.2330 | Buy Now |
|
DISTI #
39AH6323
|
Avnet Americas | Conn Housing PL 3 POS 1.5mm Crimp ST Bag - Bulk (Alt: 39AH6323) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 39 Weeks, 4 Days Container: Bulk | 0 |
|
$0.1600 / $0.2330 | Buy Now |
|
DISTI #
538-502578-0300
|
Mouser Electronics | Headers & Wire Housings CLIKMATE PLUG HSG 3P SR BEIGE RoHS: Compliant | 10191 |
|
$0.1570 / $0.2500 | Buy Now |
|
DISTI #
71463076
|
RS | 1.5 W/B Single Plug Hsg 3Ckt Beige Min Qty: 1 Package Multiple: 1 Lead time: 8 Weeks, 0 Days Container: Bulk | 100 |
|
$0.2150 / $0.2980 | Buy Now |
Part Details for 502578-0300

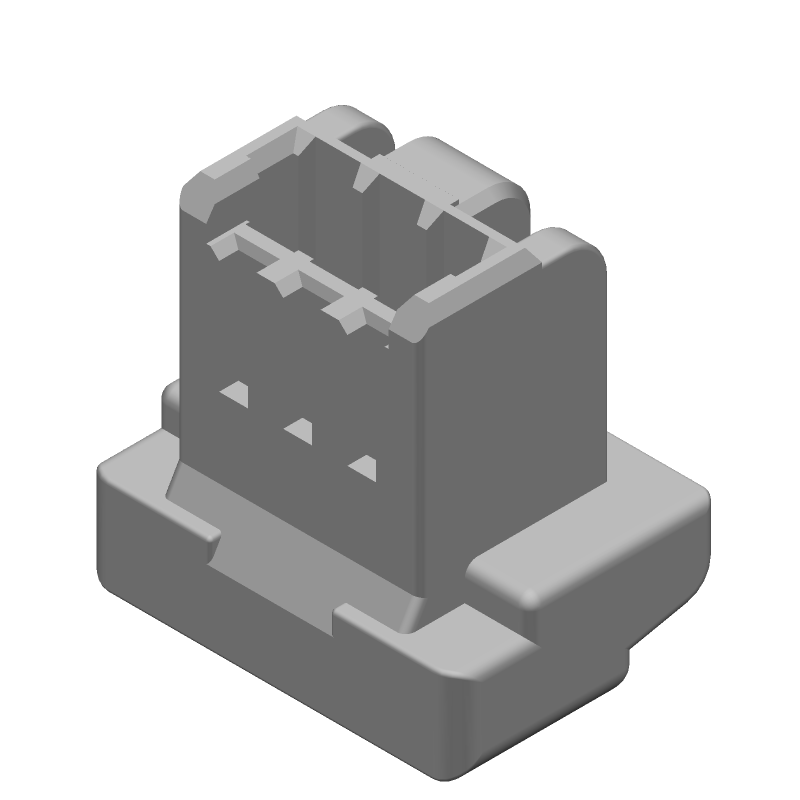

502578-0300 CAD Models
502578-0300 Part Data Attributes
|
|
502578-0300
Molex
Buy Now
Datasheet
|
Compare Parts:
502578-0300
Molex
Telecom and Datacom Connector, 3 Contact(s), Crimp Terminal, Locking, Plug
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MOLEX LLC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.69.40.30 | |
| Factory Lead Time | 39 Weeks, 4 Days | |
| Samacsys Manufacturer | Molex | |
| Body Breadth | 0.24 inch | |
| Body Depth | 0.339 inch | |
| Body Length | 0.346 inch | |
| Body/Shell Style | PLUG | |
| Connector Type | TELECOM AND DATACOM CONNECTOR | |
| Contact Finish Mating | NOT SPECIFIED | |
| Contact Finish Termination | NOT APPLICABLE | |
| Contact Material | NOT SPECIFIED | |
| Contact Pattern | RECTANGULAR | |
| Insulator Color | BEIGE | |
| Insulator Material | POLYBUTYLENE TEREPHTHALATE | |
| Mating Contact Pitch | 0.059 inch | |
| Mounting Option 1 | LOCKING | |
| Mounting Type | CABLE | |
| Number of Rows Loaded | 1 | |
| Reference Standard | UL | |
| Termination Type | CRIMP | |
| Total Number of Contacts | 3 |
