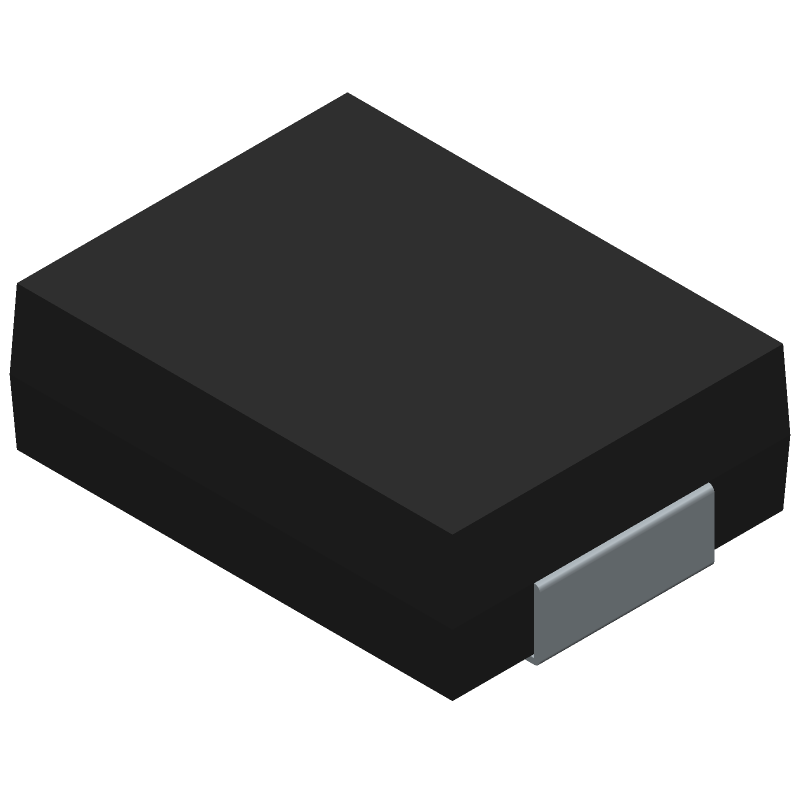

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 5.0SMDJ8.5CAS by Littelfuse Inc
Results Overview of 5.0SMDJ8.5CAS by Littelfuse Inc
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Renewable Energy
Robotics and Drones
5.0SMDJ8.5CAS Information
5.0SMDJ8.5CAS by Littelfuse Inc is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for 5.0SMDJ8.5CAS
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
34AC9002
|
Newark | Tvs 5Kw 8.5V 5%bi Do-214Ab Tr13 Rohs/ Tr |Littelfuse 5.0SMDJ8.5CAS RoHS: Not Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.6480 / $0.7650 | Buy Now |
|
DISTI #
18-5.0SMDJ8.5CASCT-ND
|
DigiKey | TVS DIODE 8.5VWM 14.4V DO214AB Min Qty: 1 Lead time: 12 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
5947 In Stock |
|
$0.6090 / $2.2300 | Buy Now |
|
DISTI #
576-5.0SMDJ8.5CAS
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes 5.0SMDJ - CA 8.5V RoHS: Compliant | 0 |
|
$0.6090 | Order Now |
|
DISTI #
75573715
|
RS | TVS 5KW 8.5V 5%BI DO-214AB TR13 RoHS Min Qty: 3000 Package Multiple: 1 Lead time: 8 Weeks, 0 Days Container: Bulk | 0 |
|
$1.2100 / $1.3200 | RFQ |
|
DISTI #
5.0SMDJ8.5CAS
|
TTI | ESD Protection Diodes / TVS Diodes 5.0SMDJ - CA 8.5V RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Container: Reel | Americas - 0 |
|
$0.6030 | Buy Now |
Part Details for 5.0SMDJ8.5CAS
5.0SMDJ8.5CAS CAD Models
5.0SMDJ8.5CAS Part Data Attributes
|
|
5.0SMDJ8.5CAS
Littelfuse Inc
Buy Now
Datasheet
|
Compare Parts:
5.0SMDJ8.5CAS
Littelfuse Inc
Trans Voltage Suppressor Diode,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | LITTELFUSE INC | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Samacsys Manufacturer | LITTELFUSE | |
| Additional Feature | EXCELLENT CLAMPING CAPABILITY | |
| Breakdown Voltage-Max | 10.4 V | |
| Breakdown Voltage-Min | 9.44 V | |
| Breakdown Voltage-Nom | 9.92 V | |
| Clamping Voltage-Max | 14.4 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JEDEC-95 Code | DO-214AB | |
| JESD-30 Code | R-PDSO-C2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Peak Rev Power Dis-Max | 5000 W | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -65 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | BIDIRECTIONAL | |
| Power Dissipation-Max | 6.5 W | |
| Reference Standard | IEC-61000-4-2, 4-4; UL RECOGNIZED | |
| Rep Pk Reverse Voltage-Max | 8.5 V | |
| Reverse Current-Max | 40 µA | |
| Reverse Test Voltage | 8.5 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | C BEND | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 40 |
