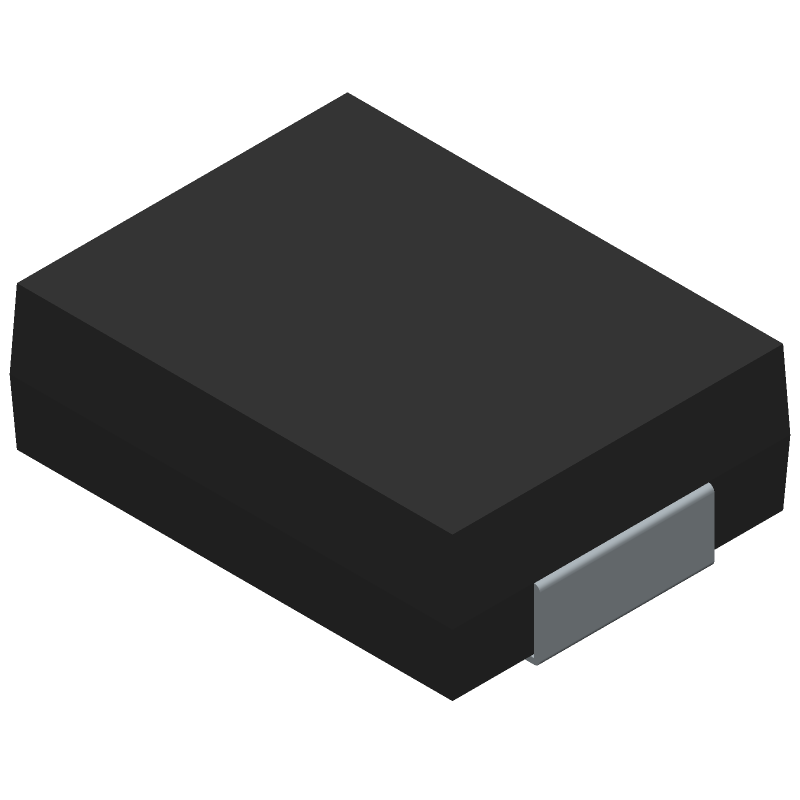

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 5.0SMDJ54CAS by Littelfuse Inc
Results Overview of 5.0SMDJ54CAS by Littelfuse Inc
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
5.0SMDJ54CAS Information
5.0SMDJ54CAS by Littelfuse Inc is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for 5.0SMDJ54CAS
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
39AK0313
|
Newark | Tvs Diode, Bidir, 54V, 5Kw, Smc Rohs Compliant: Yes |Littelfuse 5.0SMDJ54CAS RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 2995 |
|
$1.3500 / $3.0100 | Buy Now |
|
DISTI #
40AH0189
|
Newark | Tvs 4.5Kw 54V 5%bi Do-214Ab Tr13 Rohs/ Tr Rohs Compliant: Yes |Littelfuse 5.0SMDJ54CAS RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.9550 / $1.1400 | Buy Now |
|
DISTI #
5.0SMDJ54CASCT-ND
|
DigiKey | TVS DIODE 54VWM 87.1VC DO214AB Min Qty: 1 Lead time: 12 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
5887 In Stock |
|
$0.9319 / $3.0400 | Buy Now |
|
DISTI #
576-5.0SMDJ54CAS
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes 5.0SMDJ - CA 54V RoHS: Compliant | 0 |
|
$0.9310 | Order Now |
|
DISTI #
75573661
|
RS | TVS 4.5KW 54V 5%BI DO-214AB TR13 RoHS Min Qty: 3000 Package Multiple: 1 Lead time: 8 Weeks, 0 Days Container: Bulk | 0 |
|
$1.8600 / $2.0300 | RFQ |
|
DISTI #
5.0SMDJ54CAS
|
TTI | ESD Protection Diodes / TVS Diodes 5.0SMDJ - CA 54V Min Qty: 3000 Package Multiple: 3000 Container: Reel | Americas - 0 |
|
$0.9200 | Buy Now |
Part Details for 5.0SMDJ54CAS
5.0SMDJ54CAS CAD Models
5.0SMDJ54CAS Part Data Attributes
|
|
5.0SMDJ54CAS
Littelfuse Inc
Buy Now
Datasheet
|
Compare Parts:
5.0SMDJ54CAS
Littelfuse Inc
Trans Voltage Suppressor Diode,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | LITTELFUSE INC | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Samacsys Manufacturer | LITTELFUSE | |
| Additional Feature | EXCELLENT CLAMPING CAPABILITY | |
| Breakdown Voltage-Max | 66.3 V | |
| Breakdown Voltage-Min | 60 V | |
| Breakdown Voltage-Nom | 63.15 V | |
| Clamping Voltage-Max | 87.1 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JEDEC-95 Code | DO-214AB | |
| JESD-30 Code | R-PDSO-C2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Peak Rev Power Dis-Max | 5000 W | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -65 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | BIDIRECTIONAL | |
| Power Dissipation-Max | 6.5 W | |
| Reference Standard | IEC-61000-4-2, 4-4; UL RECOGNIZED | |
| Rep Pk Reverse Voltage-Max | 54 V | |
| Reverse Current-Max | 2 µA | |
| Reverse Test Voltage | 54 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | C BEND | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 40 |
Alternate Parts for 5.0SMDJ54CAS
This table gives cross-reference parts and alternative options found for 5.0SMDJ54CAS. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 5.0SMDJ54CAS, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 5.0SMLJ54CA-TP | Micro Commercial Components | Check for Price | Trans Voltage Suppressor Diode, 5000W, 54V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AB, SMCJ, 2 PIN | 5.0SMDJ54CAS vs 5.0SMLJ54CA-TP |
| 5.0SMDJ54CA | YAGEO Corporation | Check for Price | Trans Voltage Suppressor Diode, | 5.0SMDJ54CAS vs 5.0SMDJ54CA |
