5-1634534-1 Information
5-1634534-1 by TE Connectivity is an RF Adapter.
RF Adapters are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for 5-1634534-1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
4299706
|
Farnell | RF/COAXIAL ADAPTER, BNC JACK-JACK/50 OHM RoHS: Compliant Min Qty: 60 Lead time: 1 Weeks, 2 Days Container: Each | 3017 |
|
$2.0571 / $2.1915 | Buy Now |
|
DISTI #
1020975
|
Farnell | ADAPTOR, BNC JACK, BNC JACK, 50OHM RoHS: Compliant Min Qty: 1 Lead time: 10 Weeks, 4 Days Container: Each | 0 |
|
$1.4655 / $2.2453 | Buy Now |
|
DISTI #
5-1634534-1
|
Avnet Americas | Conn RF Adaptor BNC to BNC Receptacle-Receptacle ST - Bulk (Alt: 5-1634534-1) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 111 Weeks, 0 Days Container: Bulk | 0 |
|
RFQ | |
|
DISTI #
V99:2348_11827095
|
Arrow Electronics | 5-1634534-1 TE Connectivity RF Connectors ZDC/BNC Adapter 0Hz to 4GHz 50Ohm Gold Over Nickel Over Copper - Arrow.com Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2109 | Americas - 1171 |
|
$0.9075 / $1.2134 | Buy Now |
|
|
Onlinecomponents.com | BNC Str Adp JJ 50Ohm Nickel Pltd RoHS: Compliant |
573 In Stock |
|
$0.8700 / $1.2200 | Buy Now |
|
DISTI #
87364102
|
Verical | 5-1634534-1 TE Connectivity RF Connectors ZDC/BNC Adapter 0Hz to 4GHz 50Ohm Gold Over Nickel Over Copper - Arrow.com Min Qty: 30 Package Multiple: 1 | Americas - 1042 |
|
$1.8340 / $2.3380 | Buy Now |
|
DISTI #
69153669
|
Verical | 5-1634534-1 TE Connectivity RF Connectors ZDC/BNC Adapter 0Hz to 4GHz 50Ohm Gold Over Nickel Over Copper - Arrow.com Min Qty: 50 Package Multiple: 1 | Americas - 483 |
|
$1.2500 / $1.2600 | Buy Now |
|
DISTI #
51522922
|
Verical | 5-1634534-1 TE Connectivity RF Connectors ZDC/BNC Adapter 0Hz to 4GHz 50Ohm Gold Over Nickel Over Copper - Arrow.com Min Qty: 55 Package Multiple: 55 Date Code: 1319 | Americas - 55 |
|
$1.4690 / $1.5860 | Buy Now |
|
DISTI #
5-1634534-1
|
TTI | RF Adapters - In Series Str Adp JK-JK Nickel 50Ohm Min Qty: 1 Package Multiple: 1 Container: Each | Americas - 0 |
|
Buy Now | |
|
DISTI #
5-1634534-1
|
TME | Coupler, BNC socket x2, straight, 50Ω, polymethylpentene Min Qty: 1 | 550 |
|
$1.3300 / $2.0000 | Buy Now |
Part Details for 5-1634534-1

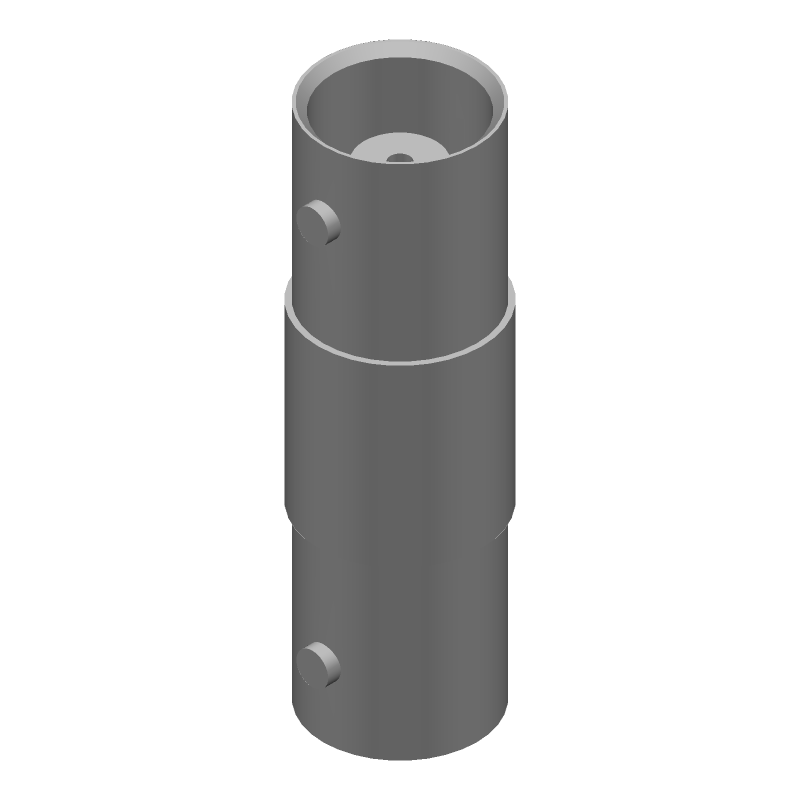

5-1634534-1 CAD Models
5-1634534-1 Part Data Attributes
|
|
5-1634534-1
TE Connectivity
Buy Now
Datasheet
|
Compare Parts:
5-1634534-1
TE Connectivity
BNC Str Adp JJ 50Ohm Nickel Pltd
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TE CONNECTIVITY LTD | |
| Reach Compliance Code | not_compliant | |
| Factory Lead Time | 111 Weeks | |
| Samacsys Manufacturer | TE Connectivity | |
| Adapter Style | BNC-BNC | |
| Body/Shell Style | JACK-JACK | |
| Characteristic Impedance | 50 Ω | |
| Connector Type | RF STRAIGHT ADAPTER | |
| Contact Finish Mating | NOT SPECIFIED | |
| Contact Gender | FEMALE-FEMALE | |
| Contact Material | NOT SPECIFIED | |
| Contact Style | COAX | |
| Coupling Type | BAYONET | |
| DIN Conformance | NO | |
| Durability | 500 Cycles | |
| EMI Shielded | NO | |
| Empty Shell | YES | |
| Filter Feature | NO | |
| IEC Conformance | NO | |
| Insulator Material | POLYMETHYLPENTENE | |
| JESD-609 Code | e4 | |
| MIL Conformance | NO | |
| Mains Connector Rating | 115/230VAC | |
| Mixed Contacts | NO | |
| Mounting Style | STRAIGHT | |
| Mounting Type | PANEL | |
| Number Of Connectors | ONE | |
| Number of Ports | 1 | |
| Operating Frequency-Max | 4 GHz | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -55 °C | |
| Option | GENERAL PURPOSE | |
| Panel Mount | NO | |
| Shell Finish | NICKEL | |
| Shell Material | ZINC ALLOY | |
| Total Number of Contacts | 1 |
