5-146280-8 by:

8 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER

Part Details for 5-146280-8 by TE Connectivity

Results Overview of 5-146280-8 by TE Connectivity

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

5-146280-8 Information

5-146280-8 by TE Connectivity is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for 5-146280-8

Part # Distributor Description Stock Price Buy
DISTI # 27M1944
Newark Btb Connector, 8Pos, Header, 1Row, Connector Systems:Board-To-Board, Pitch Spacing:2.54Mm, No. Of Rows:1Rows, No. Of Contacts:8Contacts, Contact Termination Type:Through Hole, Product Range:Ampmodu Mod Ii Series, Connector Shroud:- Rohs Compliant: Yes |Amp Te Connectivity 5-146280-8 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 2674
  • 1 $0.5550
  • 10 $0.5550
  • 25 $0.5550
  • 50 $0.5550
  • 100 $0.5550
  • 500 $0.5550
  • 1,000 $0.5550
$0.5550 Buy Now
DISTI # 96AC6618
Newark 5-146280-8 Rohs Compliant: Yes |Amp Te Connectivity 5-146280-8 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 13
  • 1 $0.7450
  • 10 $0.7390
  • 30 $0.7280
  • 50 $0.7180
  • 100 $0.7070
$0.7070 / $0.7450 Buy Now
DISTI # A128854-ND
DigiKey CONN HEADER VERT 8POS 2.54MM Min Qty: 1 Lead time: 18 Weeks Container: Bulk 6007
In Stock
  • 1 $1.3700
  • 10 $1.1630
  • 200 $0.9412
  • 600 $0.8710
  • 1,000 $0.8401
  • 5,000 $0.7956
$0.7956 / $1.3700 Buy Now
DISTI # 5-146280-8
Avnet Americas Conn Unshrouded Header HDR 8 POS 2.54mm Solder ST Thru-Hole - Bulk (Alt: 5-146280-8) RoHS: Compliant Min Qty: 200 Package Multiple: 1 Lead time: 9 Weeks, 0 Days Container: Bulk 13
  • 200 $0.7319
  • 210 $0.7237
  • 410 $0.7173
  • 1,000 $0.7109
  • 2,000 $0.7033
$0.7033 / $0.7319 Buy Now
DISTI # 27M1944
Avnet Americas Conn Unshrouded Header HDR 8 POS 2.54mm Solder ST Thru-Hole - Bulk (Alt: 27M1944) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 11 Weeks, 4 Days Container: Bulk 2674 Partner Stock
  • 1 $1.3800
  • 10 $1.1100
  • 25 $1.0800
  • 50 $1.0400
  • 100 $1.0100
$1.0100 / $1.3800 Buy Now
DISTI # 571-5-146280-8
Mouser Electronics Headers & Wire Housings 08P HDR SRST B/A RoHS: Compliant 2087
  • 1 $1.5400
  • 10 $1.2200
  • 25 $1.2100
  • 100 $1.0100
  • 200 $1.0000
  • 600 $0.9130
  • 1,000 $0.8720
  • 5,000 $0.7960
$0.7960 / $1.5400 Buy Now
DISTI # V36:1790_11868672
Arrow Electronics Conn Unshrouded Header HDR 8 POS 2.54mm Solder ST Top Entry Thru-Hole Automotive Carton RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 18 Weeks Date Code: 2245 Americas - 5897
  • 1 $0.9795
  • 10 $0.8312
  • 200 $0.7881
  • 600 $0.7581
  • 1,000 $0.7257
  • 5,000 $0.6964
$0.6964 / $0.9795 Buy Now
DISTI # V99:2348_11868672
Arrow Electronics Conn Unshrouded Header HDR 8 POS 2.54mm Solder ST Top Entry Thru-Hole Automotive Carton RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 18 Weeks Date Code: 2152 Americas - 66
  • 0 $0.7001
  • 1 $0.3118
$0.3118 / $0.7001 Buy Now
DISTI # 72056052
RS Connector, AMPMODU, 08 Modii Hdr Srst B/A .100Cl Min Qty: 8000 Package Multiple: 1 Container: Bulk 0
  • 8,000 $1.6100
  • 16,000 $1.5300
  • 32,000 $1.4800
$1.4800 / $1.6100 RFQ
DISTI # AMP5-146280-8
Heilind Electronics 08 MODII HDR SRST B/A .100CL Americas - 0 in Stock
  • 8,000 $0.9360
$0.9360 Buy Now
Onlinecomponents.com 08 MODII HDR SRST B/A .100CL RoHS: Compliant 2991 Partner Stock
  • 150 $2.4400
  • 400 $2.4100
  • 1,000 $2.3700
  • 2,000 $2.3400
  • 4,000 $1.2300
  • 6,000 $0.8490
  • 8,000 $0.8310
$0.8310 / $2.4400 Buy Now
DISTI # 79329924
Verical Conn Unshrouded Header HDR 8 POS 2.54mm Solder ST Top Entry Thru-Hole Automotive Carton RoHS: Compliant Min Qty: 8 Package Multiple: 1 Date Code: 2245 Americas - 5897
  • 8 $0.7581
$0.7581 Buy Now
DISTI # 26651851
Verical Conn Unshrouded Header HDR 8 POS 2.54mm Solder ST Top Entry Thru-Hole Automotive Carton RoHS: Compliant Min Qty: 64 Package Multiple: 1 Americas - 2991
  • 1 $0.9800
  • 350 $0.9700
  • 700 $0.9400
  • 1,400 $0.9300
$0.9300 / $0.9800 Buy Now
DISTI # 66233819
Verical Conn Unshrouded Header HDR 8 POS 2.54mm Solder ST Top Entry Thru-Hole Automotive Carton RoHS: Compliant Min Qty: 91 Package Multiple: 1 Americas - 2674
  • 91 $0.9487
  • 100 $0.9063
  • 250 $0.8699
  • 500 $0.8385
  • 1,000 $0.8112
  • 2,500 $0.7872
$0.7872 / $0.9487 Buy Now
DISTI # 62307366
Verical Conn Unshrouded Header HDR 8 POS 2.54mm Solder ST Top Entry Thru-Hole Automotive Carton RoHS: Compliant Min Qty: 9 Package Multiple: 1 Date Code: 2152 Americas - 66
  • 9 $0.7001
$0.7001 Buy Now
Bristol Electronics   700
RFQ
DISTI # 5-146280-8
TTI Headers & Wire Housings 08P HDR SRST B/A RoHS: Compliant pbFree: Pb-Free Min Qty: 8000 Package Multiple: 10 Container: Each Americas - 0
  • 8,000 $0.7000
  • 16,000 $0.6800
  • 56,000 $0.6300
$0.6300 / $0.7000 Buy Now
DISTI # 5-146280-8
IBS Electronics CONN UNSHROUDED HEADER HDR 8 POS 2.54MM SOLDER ST TOP ENTRY THRU-HOLE AUTOMOTIVE Min Qty: 150 Package Multiple: 1 2991
  • 150 $0.9750
  • 350 $0.9625
  • 700 $0.9375
  • 1,400 $0.9250
$0.9250 / $0.9750 Buy Now
DISTI # AMP5-146280-8
Interstate Connecting Components 08 MODII HDR SRST B/A .100CL 0
  • 8,000 $0.9360
$0.9360 Buy Now
DISTI # 000000000001652019
Sager Headers & Wire Housings 08P HDR SRST B/A Min Qty: 8000 0
  • 8,000 $1.0600
$1.0600 Buy Now
DISTI # 5-146280-8
Avnet Abacus Conn Unshrouded Header HDR 8 POS 254mm Solder ST ThruHole (Alt: 5-146280-8) RoHS: Compliant Min Qty: 8000 Package Multiple: 200 Lead time: 33 Weeks, 0 Days Abacus - 0
Buy Now
DISTI # 5-146280-8
Avnet Asia Conn Unshrouded Header HDR 8 POS 2.54mm Solder ST Thru-Hole (Alt: 5-146280-8) RoHS: Compliant Min Qty: 8000 Package Multiple: 8000 Lead time: 28 Weeks, 6 Days 0
  • 8,000 $0.6667
  • 16,000 $0.6575
  • 24,000 $0.6484
  • 40,000 $0.6397
  • 80,000 $0.6229
  • 200,000 $0.6069
  • 400,000 $0.5917
$0.5917 / $0.6667 Buy Now
Master Electronics 08 MODII HDR SRST B/A .100CL RoHS: Compliant 2991 Partner Stock
  • 150 $2.4400
  • 400 $2.4100
  • 1,000 $2.3700
  • 2,000 $2.3400
  • 4,000 $1.2300
  • 6,000 $0.8490
  • 8,000 $0.8310
$0.8310 / $2.4400 Buy Now

Part Details for 5-146280-8

5-146280-8 CAD Models

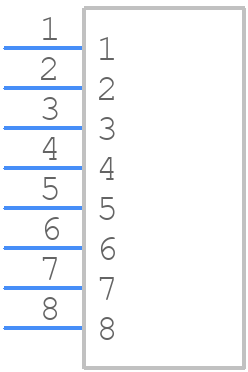

  • Part Symbol

    Part Symbol

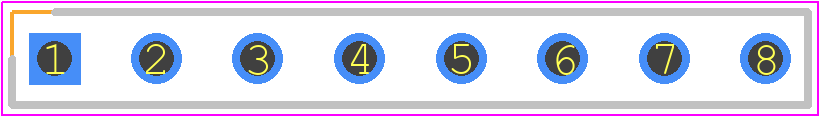

  • Footprint

    footprint

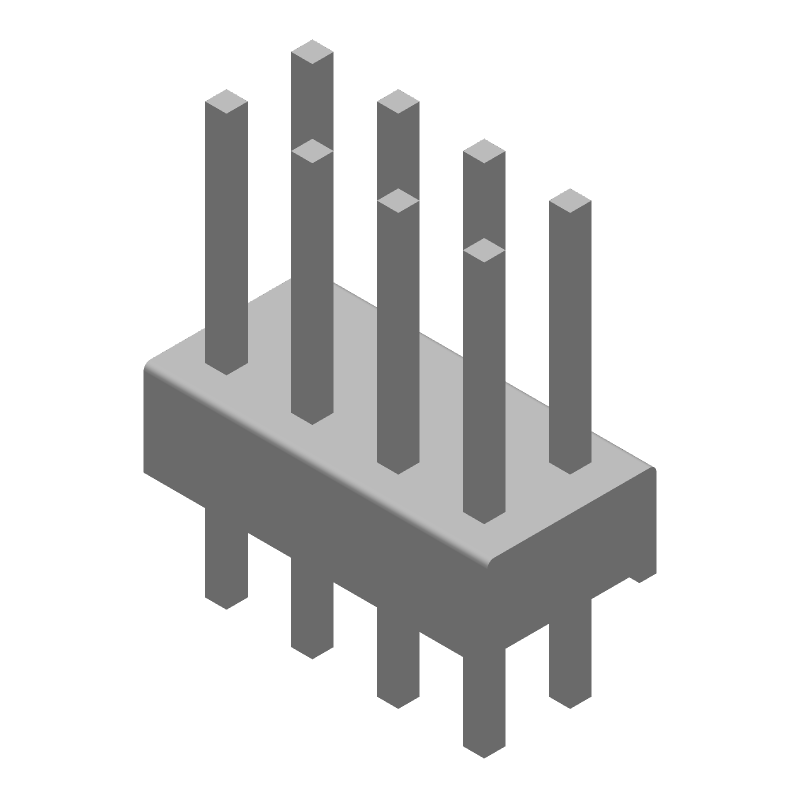

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

5-146280-8 Part Data Attributes

Parametric Data
5-146280-8 TE Connectivity
Buy Now Datasheet
Compare Parts:
5-146280-8 TE Connectivity 8 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Transferred
Ihs Manufacturer TYCO ELECTRONICS AMP
Reach Compliance Code unknown
ECCN Code EAR99
HTS Code 8536.69.40.40
Factory Lead Time 11 Weeks, 4 Days
Samacsys Manufacturer TE Connectivity
Body Breadth 0.092 inch
Body Depth 0.09 inch
Body Length 0.784 inch
Body/Shell Style RECEPTACLE
Connector Type BOARD CONNECTOR
Contact Finish Mating NOT APPLICABLE
Contact Finish Termination Tin (Sn)
Contact Gender MALE
Contact Material NOT APPLICABLE
Contact Pattern RECTANGULAR
Contact Style SQ PIN-SKT
DIN Conformance NO
EMI Shielded NO
Empty Shell YES
Filter Feature NO
IEC Conformance NO
Insulation Resistance 5000000000 Ω
Insulator Color BLACK
Insulator Material LIQUID CRYSTAL POLYMER
JESD-609 Code e3
MIL Conformance NO
Mains Connector Rating 3A
Mating Contact Pitch 0.1 inch
Mixed Contacts NO
Mounting Style STRAIGHT
Mounting Type BOARD
Number Of Connectors ONE
Number Of PCB Rows 1
Number of Ports 1
Number of Rows Loaded 1
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
Panel Mount NO
Plating Thickness 15u inch
Rated Current (Signal) 3 A
Reference Standard UL
Terminal Length 0.12 inch
Terminal Pitch 2.54 mm
Termination Type SOLDER
Total Number of Contacts 8
UL Flammability Code 94V-0
