5-102619-2 by:

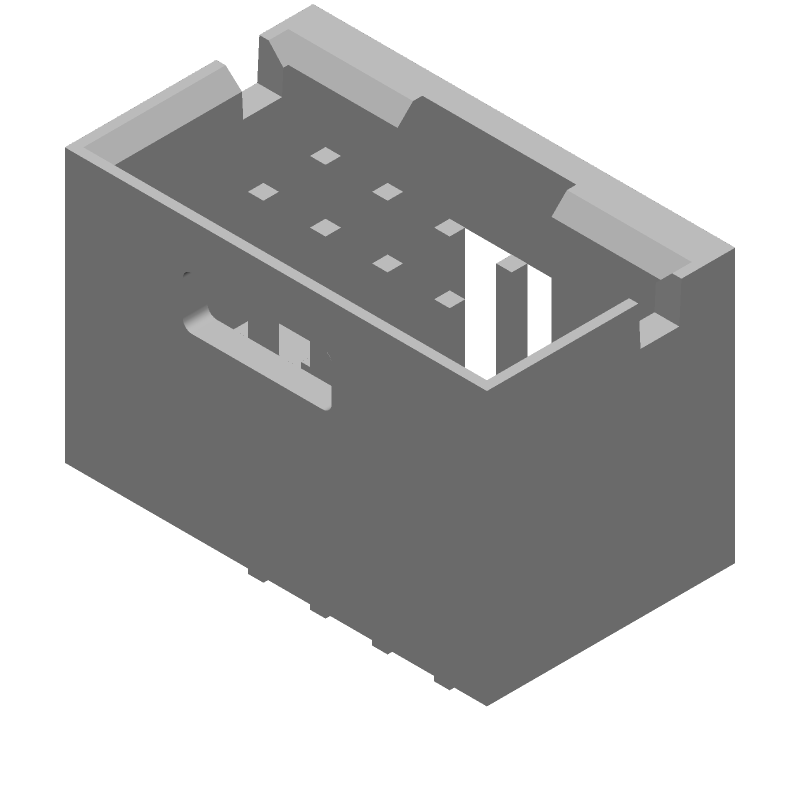

08 MODII HDR DRST SHRD .100CL

Part Details for 5-102619-2 by TE Connectivity

Results Overview of 5-102619-2 by TE Connectivity

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research

5-102619-2 Information

5-102619-2 by TE Connectivity is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for 5-102619-2

Part # Distributor Description Stock Price Buy
DISTI # AMP5-102619-2
Heilind Electronics 08 MODII HDR DRST SHRD .100CL Americas - 0 in Stock
Buy Now
Onlinecomponents.com 08 MODII HDR DRST SHRD .100CL RoHS: Compliant 30 Partner Stock
  • 1 $2.1120
  • 25 $1.9000
  • 59 $1.9200
  • 100 $1.8800
  • 504 $1.8600
  • 1,008 $1.3200
  • 1,512 $1.3100
  • 2,016 $1.2100
$1.2100 / $2.1120 Buy Now
DISTI # 5-102619-2
TTI Headers & Wire Housings ACTION PIN VERT 8P dual .150 end Min Qty: 864 Package Multiple: 288 Container: Tray Americas - 0
  • 864 $1.5400
$1.5400 Buy Now
DISTI # 5-102619-2
TTI Headers & Wire Housings ACTION PIN VERT 8P dual .150 end Min Qty: 864 Package Multiple: 288 Container: Tray Americas - 0
  • 864 $1.5400
$1.5400 Buy Now
DISTI # AMP5-102619-2
Interstate Connecting Components 08 MODII HDR DRST SHRD .100CL 0
Buy Now
DISTI # 000000000001651296
Sager Headers & Wire Housings ACTION PIN VERT 8P dual .150 end 0
Buy Now
Master Electronics 08 MODII HDR DRST SHRD .100CL RoHS: Compliant 30 Partner Stock
  • 1 $2.1120
  • 25 $1.9000
  • 59 $1.9200
  • 100 $1.8800
  • 504 $1.8600
  • 1,008 $1.3200
  • 1,512 $1.3100
  • 2,016 $1.2100
$1.2100 / $2.1120 Buy Now

Part Details for 5-102619-2

5-102619-2 Part Data Attributes

Parametric Data
5-102619-2 TE Connectivity
Buy Now Datasheet
Compare Parts:
5-102619-2 TE Connectivity 08 MODII HDR DRST SHRD .100CL
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TE CONNECTIVITY LTD
Reach Compliance Code compliant
Samacsys Manufacturer TE Connectivity
Body Breadth 0.4 inch
Body Depth 0.44 inch
Body Length 0.6 inch
Body/Shell Style PLUG
Connector Type BOARD CONNECTOR
Contact Finish Mating NOT APPLICABLE
Contact Finish Termination Tin (Sn) - with Nickel (Ni) barrier
Contact Gender MALE
Contact Material NOT APPLICABLE
Contact Pattern RECTANGULAR
Contact Style SQ PIN-SKT
DIN Conformance NO
EMI Shielded NO
Empty Shell NO
Filter Feature NO
IEC Conformance NO
Insulation Resistance 5000000000 Ω
Insulator Color BLACK
Insulator Material POLYETHYLENE
JESD-609 Code e3
MIL Conformance NO
Mains Connector Rating 3A
Mating Contact Pitch 0.1 inch
Mating Contact Row Spacing 0.1 inch
Mixed Contacts NO
Mounting Option 1 LOCKING
Mounting Style STRAIGHT
Mounting Type BOARD
Number Of Connectors ONE
Number Of PCB Rows 2
Number of Ports 1
Number of Rows Loaded 2
Operating Temperature-Max 105 °C
Operating Temperature-Min -65 °C
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
PCB Contact Row Spacing 2.54 mm
Panel Mount NO
Plating Thickness 15u inch
Polarization Key POLARIZED
Rated Current (Signal) 3 A
Reference Standard CSA, LR, U
Terminal Length 0.125 inch
Terminal Pitch 2.54 mm
Termination Type SOLDER
Total Number of Contacts 8
UL Flammability Code 94V-0

Alternate Parts for 5-102619-2

This table gives cross-reference parts and alternative options found for 5-102619-2. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 5-102619-2, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
102619-2 TE Connectivity Check for Price 08 MODII HDR DRST SHRD .100CL 5-102619-2 vs 102619-2
Part Number Manufacturer Composite Price Description Compare
55959-0830 Molex $0.5048 Board Connector, 8 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, White Insulator, Plug, LEAD FREE 5-102619-2 vs 55959-0830
TLW-104-01-T-D-RA Samtec Inc $0.9731 Board Connector, 8 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle, ROHS COMPLIANT 5-102619-2 vs TLW-104-01-T-D-RA
TLW-104-01-G-D-RA Samtec Inc $1.7124 Board Connector, 8 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle, ROHS COMPLIANT 5-102619-2 vs TLW-104-01-G-D-RA
HD58040-A2C0-EF Foxconn Check for Price Board Connector, 8 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, Natural Insulator, Plug, ROHS COMPLIANT 5-102619-2 vs HD58040-A2C0-EF
2011-2X04G00RB Oupiin Check for Price Board Connector, 8 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, 5-102619-2 vs 2011-2X04G00RB

5-102619-2 Related Parts

5-102619-2 Frequently Asked Questions (FAQ)

  • The recommended torque for securing the 5-102619-2 connector is 0.5-1.5 Nm (4-12 in-lbs). However, it's essential to consult the specific application requirements and TE Connectivity's guidelines for the correct torque value.

  • Yes, the 5-102619-2 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 standard for vibration resistance, making it suitable for applications such as industrial automation, transportation, and aerospace.

  • The 5-102619-2 connector is designed to operate in a wide range of temperatures (-40°C to 125°C) and can withstand humidity up to 95% RH. However, it's crucial to consult the datasheet and TE Connectivity's guidelines for specific environmental requirements and any necessary derating or special considerations.

  • The 5-102619-2 connector is rated for a minimum of 500 mating cycles, making it suitable for applications where frequent connections and disconnections are required.

  • The 5-102619-2 connector is designed to be compatible with other TE Connectivity products, such as the 5-102619-1 and 5-102619-3 connectors. However, compatibility with third-party connectors should be verified through testing and validation to ensure reliable performance.
