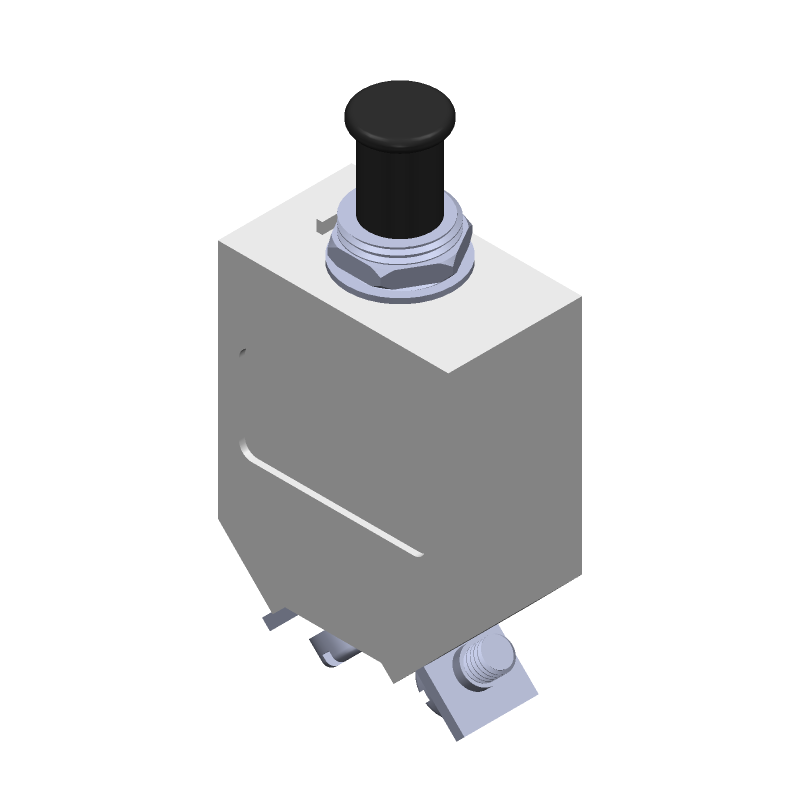

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 482-G212-K1M1-A1S0-5A by E-T-A
Results Overview of 482-G212-K1M1-A1S0-5A by E-T-A
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
Telecommunications
Entertainment and Gaming
Automotive
482-G212-K1M1-A1S0-5A Information
482-G212-K1M1-A1S0-5A by E-T-A is a Circuit Breaker.
Circuit Breaker are under the broader part category of Circuit Protection Components.
Circuit protection components monitor and safeguard electronic systems from overcurrent, overvoltage, and other electrical hazards. Read more about Circuit Protection Components on our Circuit Protection part category page.
Price & Stock for 482-G212-K1M1-A1S0-5A
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
482-G212-K1M1-A1S0-5A-ND
|
DigiKey | CIR BRKR THRM 5A 115VAC 28VDC Min Qty: 1 Lead time: 24 Weeks Container: Bulk | Temporarily Out of Stock |
|
$98.8011 / $169.9000 | Buy Now |
|
DISTI #
457-82G212K1M1A1S05A
|
Mouser Electronics | Circuit Breakers Single pole compact high performance thermal circuit breaker with tease-free, trip-free, snap action mechanism and push/pull on/off manual actuation (M-type TO CBE to EN 60934). An indicator band on the push button clearly shows the tripped/off posit RoHS: Compliant | 118 |
|
$110.5700 / $171.6100 | Buy Now |
|
DISTI #
70128960
|
RS | Circuit Breaker Thermal Manual Actuation Metric Screw Term. 115VAC/28VDC 1P 5A Min Qty: 1 Package Multiple: 1 Lead time: 6 Weeks, 0 Days Container: Bulk | 12 |
|
$138.6600 / $173.3300 | Buy Now |
|
|
Onlinecomponents.com | RoHS: Compliant | 0 |
|
$66.1800 / $126.1400 | Buy Now |
|
DISTI #
000000000000030017
|
Sager | Circuit Breakers Single pole compact high performance thermal circuit breaker with tease-free, trip-free, snap action mechanism and push/pull on/off manual actuation (M-type TO CBE to EN 60934). An indicator band on the push button clearly shows the trip Min Qty: 1 | 0 |
|
$66.1000 / $139.6600 | Buy Now |
Part Details for 482-G212-K1M1-A1S0-5A
482-G212-K1M1-A1S0-5A CAD Models
482-G212-K1M1-A1S0-5A Part Data Attributes
|
|
482-G212-K1M1-A1S0-5A
E-T-A
Buy Now
Datasheet
|
Compare Parts:
482-G212-K1M1-A1S0-5A
E-T-A
CIR BRKR THRM 5A 115VAC 28VDC
|
| Pbfree Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | E-T-A ELEKTROTECHNISCHE APPARATE GMBH | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | E-T-A | |
| Actuator Type | PUSH-PULL | |
| Body Breadth | 18 mm | |
| Body Height | 50 mm | |
| Body Length or Diameter | 31 mm | |
| Circuit Function | TRIP FREE | |
| Circuit Protection Type | THERMAL CIRCUIT BREAKER | |
| Environmental Characteristics | CORROSION/MOISTURE RESISTANT; IP00; IP40 | |
| Mounting Feature | PANEL MOUNT | |
| Number of Poles | 1 | |
| Operating Temperature-Max | 75 °C | |
| Operating Temperature-Min | -55 °C | |
| Rated Breaking Capacity | 5000 A | |
| Rated Current | 5 A | |
| Rated Voltage(DC) | 72 V | |
| Reference Standard | CSA; CUL; UL | |
| Surface Mount | NO | |
| Terminal Shape | SCREW |
482-G212-K1M1-A1S0-5A Frequently Asked Questions (FAQ)
-
The operating temperature range of the 482-G212-K1M1-A1S0-5A is -40°C to 60°C, according to E-T-A's specifications.
-
The 482-G212-K1M1-A1S0-5A is not inherently suitable for use in hazardous locations. However, it can be used in such locations if it is installed and used in accordance with the relevant safety standards and regulations, such as ATEX or IECEx.
-
The 482-G212-K1M1-A1S0-5A is designed for use in AC circuits, but it can also be used in DC circuits with some limitations. The breaker's trip characteristics may vary depending on the DC voltage and current, so it's essential to consult with E-T-A or a qualified engineer to ensure proper application.
-
The 482-G212-K1M1-A1S0-5A is designed for a minimum of 10,000 operating cycles, but the actual number of operations may vary depending on the application, environmental conditions, and maintenance.
-
The 482-G212-K1M1-A1S0-5A is designed to withstand moderate levels of vibration, but it may not be suitable for extreme vibration environments. It's essential to consult with E-T-A or a qualified engineer to determine the suitability of the breaker for a specific vibration-prone application.
