47642-0001 by: Molex

Telecom and Datacom Connector, 5 Contact(s), Female, Right Angle, Surface Mount Terminal, Locking, Receptacle, LOW HALOGEN, ROHS AND REACH COMPLIANT

Part Details for 47642-0001 by Molex

Results Overview of 47642-0001 by Molex

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Internet of Things (IoT) Environmental Monitoring Financial Technology (Fintech) Smart Cities Transportation and Logistics Agriculture Technology Telecommunications Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Automotive Consumer Electronics Education and Research Security and Surveillance Audio and Video Systems Computing and Data Storage Healthcare Electronic Manufacturing Renewable Energy Entertainment and Gaming Robotics and Drones

47642-0001 Information

47642-0001 by Molex is a Telecom and Datacom Connector.
Telecom and Datacom Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for 47642-0001

Part # Distributor Description Stock Price Buy
DISTI # 78R2131
Newark Usb Conn, 2.0, Micro Usb Type B, Rcpt, Usb Connector Type:Micro Usb Type B, Usb Standard:Usb 2.0, Gender:Receptacle, No. Of Positions:5Positions, Connector Mounting:Surface Mount, Through Hole Mount, Orientation:Right Angle Rohs Compliant: Yes |Molex 47642-0001 (Alternate Part Number: 883906099435 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 3410
  • 1 $0.1610
  • 25 $0.1610
  • 100 $0.1610
  • 250 $0.1610
  • 500 $0.1610
  • 1,000 $0.1610
  • 2,500 $0.1610
$0.1610 Buy Now
DISTI # 0476420001
Avnet Americas Conn USB Micro USB Type B Receptacle 5 POS 0.65mm RA SMD Single Port Emboss T/R - Tape and Reel (Alt: 0476420001) RoHS: Compliant Min Qty: 1500 Package Multiple: 1500 Lead time: 14 Weeks, 0 Days Container: Reel 30000
  • 1,500 $0.4358
  • 3,000 $0.4274
  • 6,000 $0.4122
  • 9,000 $0.4023
  • 12,000 $0.3944
$0.3944 / $0.4358 Buy Now
DISTI # 0476420001
Avnet Americas Conn USB Micro USB Type B Receptacle 5 POS 0.65mm RA SMD Single Port Emboss T/R - Tape and Reel (Alt: 0476420001) RoHS: Compliant Min Qty: 1500 Package Multiple: 1500 Lead time: 14 Weeks, 0 Days Container: Reel 30000
  • 1,500 $0.4358
  • 3,000 $0.4274
  • 6,000 $0.4122
  • 9,000 $0.4023
  • 12,000 $0.3944
$0.3944 / $0.4358 Buy Now
DISTI # 78R2131
Avnet Americas Conn USB Micro USB Type B Receptacle 5 POS 0.65mm RA SMD Single Port Emboss T/R - Product that comes on tape, but is not reeled (Alt: 78R2131) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks, 2 Days Container: Ammo Pack 3410 Partner Stock
  • 1 $0.9040
  • 25 $0.6950
  • 100 $0.6260
  • 250 $0.5800
  • 500 $0.5580
$0.5580 / $0.9040 Buy Now
DISTI # 78R2131
Avnet Americas Conn USB Micro USB Type B Receptacle 5 POS 0.65mm RA SMD Single Port Emboss T/R - Product that comes on tape, but is not reeled (Alt: 78R2131) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks, 2 Days Container: Ammo Pack 3410 Partner Stock
  • 1 $0.9040
  • 25 $0.6950
  • 100 $0.6260
  • 250 $0.5800
  • 500 $0.5580
$0.5580 / $0.9040 Buy Now
DISTI # 538-47642-0001
Mouser Electronics USB Connectors MICRO USB B RECPT MID MNT SMT TH TABS RoHS: Compliant 5459
  • 1 $0.7600
  • 10 $0.6200
  • 25 $0.5380
  • 100 $0.5060
  • 250 $0.4660
  • 500 $0.4390
  • 1,000 $0.4320
  • 1,500 $0.4310
  • 3,000 $0.4160
$0.4160 / $0.7600 Buy Now
DISTI # 70714203
RS Right Angle Through Hole Type B Micro USB Connector Socket, 30 V ac, 1.8A 47642 Min Qty: 1 Package Multiple: 1 Lead time: 8 Weeks, 0 Days Container: Bulk 1481
  • 1 $0.7680
  • 100 $0.6520
  • 250 $0.6140
  • 500 $0.5830
  • 1,000 $0.5530
$0.5530 / $0.7680 Buy Now
DISTI # MOL47642-0001.P
Heilind Electronics CUT TAPE - MICRO USB REC MID MOUNT SMT Americas - 0 in Stock
  • 1 $0.8223
  • 300 $0.6918
  • 600 $0.6705
  • 1,200 $0.6603
  • 2,300 $0.6505
$0.6505 / $0.8223 Buy Now
Onlinecomponents.com Micro-USB B Receptacle, Mid-Mount, with Through Hole Solder Tab, Gold (Au) Flash Plating, without Mylar, Lead-Free RoHS: Compliant 43441 Partner Stock
  • 1,500 $0.4580
  • 10,500 $0.4447
$0.4447 / $0.4580 Buy Now
DISTI # 65685120
Verical Conn Micro USB 2.0 Type B RCP 5 POS 0.65mm Solder RA Thru-Hole 5 Terminal 1 Port T/R RoHS: Compliant Min Qty: 1500 Package Multiple: 1500 Americas - 28500
  • 1,500 $0.4600
  • 16,500 $0.4100
  • 40,500 $0.4000
$0.4000 / $0.4600 Buy Now
DISTI # 87311057
Verical Conn Micro USB 2.0 Type B RCP 5 POS 0.65mm Solder RA Thru-Hole 5 Terminal 1 Port T/R RoHS: Compliant Min Qty: 1500 Package Multiple: 1500 Americas - 21000
  • 1,500 $0.3332
$0.3332 Buy Now
DISTI # 16857215
Verical Conn Micro USB 2.0 Type B RCP 5 POS 0.65mm Solder RA Thru-Hole 5 Terminal 1 Port T/R RoHS: Compliant Min Qty: 1500 Package Multiple: 1500 Americas - 13500
  • 1,500 $0.4600
  • 16,500 $0.4100
  • 40,500 $0.4000
$0.4000 / $0.4600 Buy Now
DISTI # 81392190
Verical Conn Micro USB 2.0 Type B RCP 5 POS 0.65mm Solder RA Thru-Hole 5 Terminal 1 Port T/R RoHS: Compliant Min Qty: 1500 Package Multiple: 1500 Date Code: 2231 Americas - 7500
  • 1,500 $0.2940
$0.2940 Buy Now
DISTI # 31617596
Verical Conn Micro USB 2.0 Type B RCP 5 POS 0.65mm Solder RA Thru-Hole 5 Terminal 1 Port T/R RoHS: Compliant Min Qty: 311 Package Multiple: 1 Americas - 3410
  • 311 $0.2524
  • 500 $0.2433
  • 1,000 $0.2353
  • 2,500 $0.2284
$0.2284 / $0.2524 Buy Now
DISTI # 87701685
Verical Conn Micro USB 2.0 Type B RCP 5 POS 0.65mm Solder RA Thru-Hole 5 Terminal 1 Port T/R RoHS: Compliant Min Qty: 126 Package Multiple: 1 Americas - 1363
  • 126 $0.5572
  • 500 $0.5558
$0.5558 / $0.5572 Buy Now
DISTI # 53433493
Verical Conn Micro USB 2.0 Type B RCP 5 POS 0.65mm Solder RA Thru-Hole 5 Terminal 1 Port T/R RoHS: Compliant Min Qty: 135 Package Multiple: 1 Date Code: 2016 Americas - 293
  • 135 $0.2630
$0.2630 Buy Now
Quest Components 5 CONTACT(S), FEMALE, RIGHT ANGLE TELECOM AND DATACOM CONNECTOR, SURFACE MOUNT, RECEPTACLE 1136
  • 1 $0.6500
  • 155 $0.3250
  • 616 $0.2600
$0.2600 / $0.6500 Buy Now
Quest Components 5 CONTACT(S), FEMALE, RIGHT ANGLE TELECOM AND DATACOM CONNECTOR, SURFACE MOUNT, RECEPTACLE 18
  • 1 $1.0419
  • 6 $0.8683
  • 18 $0.6251
$0.6251 / $1.0419 Buy Now
DISTI # 47642-0001
TTI USB Connectors MICRO USB B RECPT MID MNT SMT TH TABS RoHS: Compliant pbFree: Pb-Free Min Qty: 1500 Package Multiple: 1500 Container: Reel Americas - 0
Buy Now
DISTI # MX-47642-0001
TME Connector: USB B micro, socket, on PCBs, SMT, PIN: 5, horizontal Min Qty: 1 120
  • 1 $0.6880
  • 10 $0.5330
  • 50 $0.4650
  • 100 $0.4350
  • 1,500 $0.3980
$0.3980 / $0.6880 Buy Now
DISTI # 47642-0001
IBS Electronics USB CONNECTOR 5 CONTACT(S) FEMALE RIGHT ANGLE SURFACE MOUNT TERMINAL LOCKING RECEPTACLE Min Qty: 1500 Package Multiple: 1 65836
  • 1,500 $0.4625
  • 16,500 $0.4125
  • 40,500 $0.4000
  • 81,000 $0.3738
  • 201,000 $0.3613
$0.3613 / $0.4625 Buy Now
DISTI # MOL47642-0001
Interstate Connecting Components MICRO USB REC MID MOUNT SMT 1500
  • 1,500 $0.4308
  • 3,000 $0.4243
  • 4,500 $0.4179
  • 6,000 $0.4179
$0.4179 / $0.4308 Buy Now
DISTI # 0476420001
Avnet Asia Conn USB Micro USB Type B Receptacle 5 POS 0.65mm RA SMD Single Port Emboss T/R (Alt: 0476420001) RoHS: Compliant Min Qty: 7500 Package Multiple: 7500 Lead time: 8 Weeks, 3 Days 0
RFQ
Master Electronics Micro-USB B Receptacle, Mid-Mount, with Through Hole Solder Tab, Gold (Au) Flash Plating, without Mylar, Lead-Free RoHS: Compliant 43441 Partner Stock
  • 1,500 $0.4580
  • 10,500 $0.4447
$0.4447 / $0.4580 Buy Now

Part Details for 47642-0001

47642-0001 CAD Models

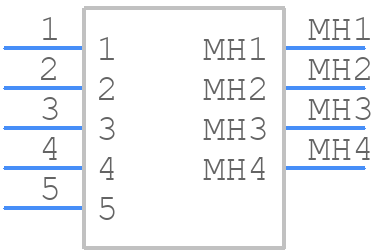

  • Part Symbol

    Part Symbol

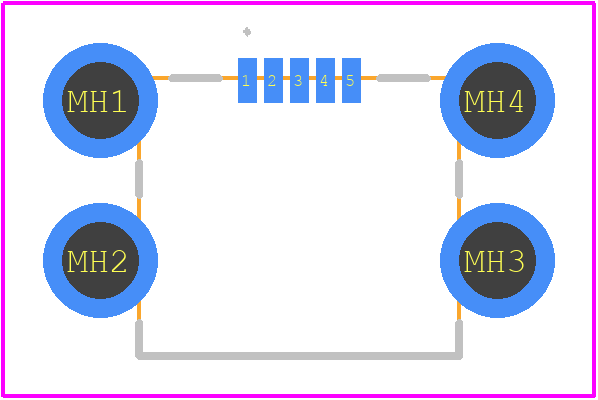

  • Footprint

    footprint

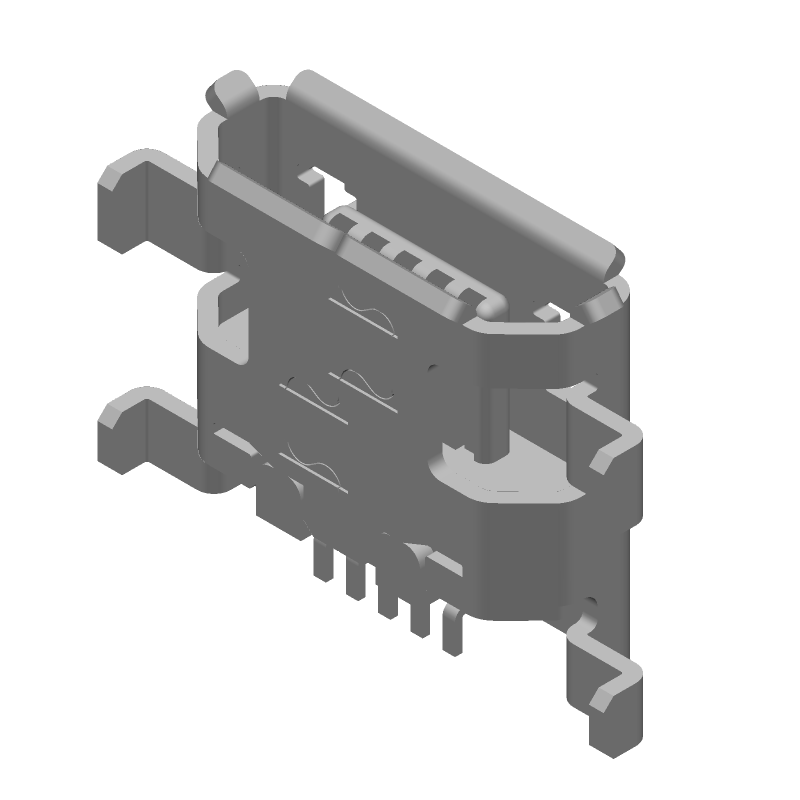

  • 3D Model
