4700BP14A0600T Information
4700BP14A0600T by Johanson Technology Inc is a Ceramic Filter.
Ceramic Filters are under the broader part category of Filters.
A filter is an electronic circuit that selectively allows certain frequencies to pass while attenuating others. They are used to extract desired signals and remove noise. Read more about Filters on our Filters part category page.
Price & Stock for 4700BP14A0600T
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
66AH5022
|
Newark | Band Pass Filter, 4.4-5Ghz, 0603, Filter Type:Band Pass, No. Of Pins:4Pins, Pass Band Frequency:4.4Ghz To 5Ghz, Rf Filter Applications:Cellular, Wlan, Bluetooth, Zigbee, Ism, Rf/Microwave, Millimeter Wave, Fiber Optic Rohs Compliant: Yes |Johanson Technology 4700BP14A0600T RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 1756 |
|
$0.1700 / $0.2010 | Buy Now |
|
DISTI #
66AH5023
|
Newark | Band Pass Filter, 4.4-5Ghz, 0603, Filter Type:Band Pass, No. Of Pins:4Pins, Pass Band Frequency:4.4Ghz To 5Ghz, Rf Filter Applications:Cellular, Wlan, Bluetooth, Zigbee, Ism, Rf/Microwave, Millimeter Wave, Fiber Optic Rohs Compliant: Yes |Johanson Technology 4700BP14A0600T RoHS: Compliant Min Qty: 4000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.1460 / $0.1950 | Buy Now |
Part Details for 4700BP14A0600T

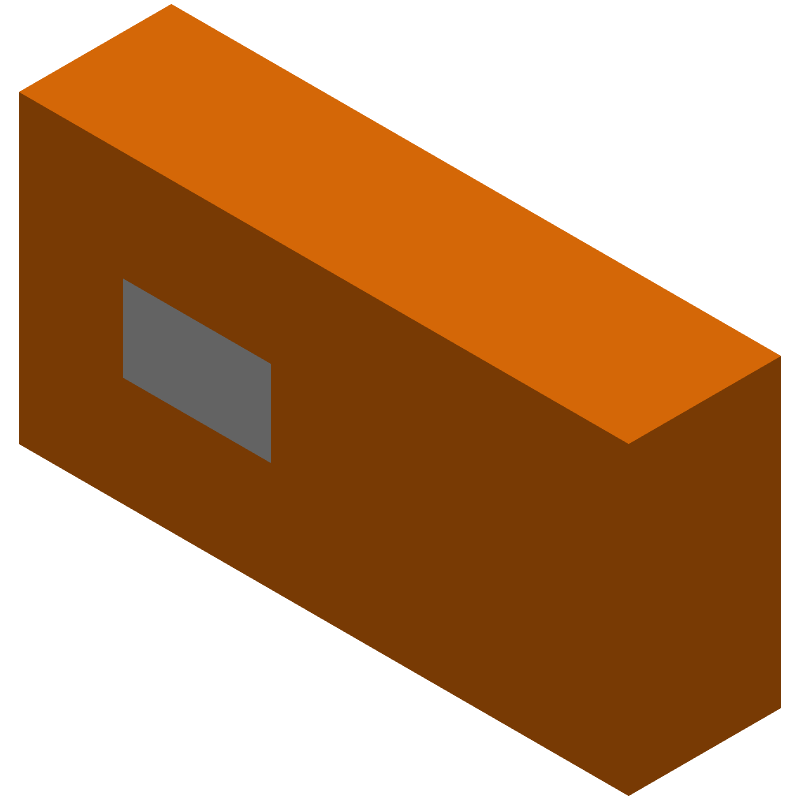

4700BP14A0600T CAD Models
4700BP14A0600T Part Data Attributes
|
|
4700BP14A0600T
Johanson Technology Inc
Buy Now
Datasheet
|
Compare Parts:
4700BP14A0600T
Johanson Technology Inc
Ceramic BPF,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | JOHANSON TECHNOLOGY INC | |
| Package Description | EIA STD PACKAGE SIZE 0603, SMD, 4 PIN | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | JOHANSON TECHNOLOGY | |
| Average Input Power | 3 W | |
| Center or Cutoff Frequency (fo/fc) | 4700 MHz | |
| Filter Type | CERAMIC BPF | |
| Height | 0.4 mm | |
| Input/Output Impedance | 50 OHM | |
| Insertion Loss-Max | 2.5 dB | |
| Length | 1.6 mm | |
| Mounting Type | SURFACE MOUNT | |
| Number of Sections-Max | 1 | |
| Number of Sections-Min | 1 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Packing Method | TR | |
| Width | 0.8 mm |
4700BP14A0600T Frequently Asked Questions (FAQ)
-
The recommended land pattern for the 4700BP14A0600T can be found in the Johanson Technology Inc. application note AN-1001, which provides detailed guidelines for PCB layout and assembly.
-
Yes, the 4700BP14A0600T is designed for high-frequency applications up to 6 GHz. However, it's essential to follow the recommended PCB layout and impedance matching guidelines to ensure optimal performance.
-
The maximum operating temperature for the 4700BP14A0600T is 125°C. However, it's recommended to derate the component's power handling capabilities at higher temperatures to ensure reliability and longevity.
-
Yes, the 4700BP14A0600T is compatible with lead-free soldering processes. Johanson Technology Inc. recommends following the IPC J-STD-020D standard for lead-free soldering.
-
The typical insertion loss for the 4700BP14A0600T is around 0.5 dB at 1 GHz. However, this value may vary depending on the specific application, PCB layout, and operating frequency.
