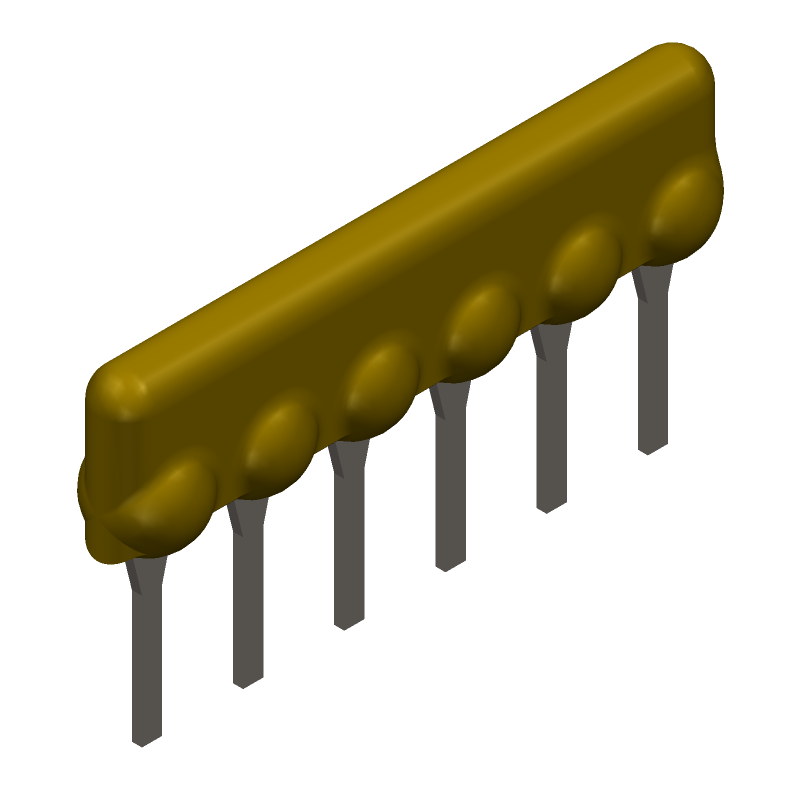

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 4606X-101-103LF by Bourns Inc
Results Overview of 4606X-101-103LF by Bourns Inc
- Distributor Offerings: (31 listings)
- Number of FFF Equivalents: (2 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
4606X-101-103LF Information
4606X-101-103LF by Bourns Inc is an Array/Network Resistor.
Array/Network Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| 74033-103LF | Amphenol Communications Solutions | 74033-103LF-BLACK 30AU LF | |
| 85640-103LF | Amphenol Communications Solutions | 85640-103LF-METRAL 5R X 4M RA STB R | |
| 66506-103LF | Amphenol Communications Solutions | Quickie® IDC Cable-to-Board Connector System, Shrouded Slim Line Header, Vertical, Through Hole, Double Row, 50 Positions, 2.54mm (0.100in) Pitch. |
Price & Stock for 4606X-101-103LF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
62J2820
|
Newark | Resistor Network, Bussed, 5 Resistor, 10Kohm, 2%, Sip, Resistance:10Kohm, Network Circuit Type:Bussed, No. Of Resistors:5Resistors, Resistor Case/Package:Sip, Resistance Tolerance:± 2%, Voltage Rating:100V, Resistor Type:Network Rohs Compliant: Yes |Bourns 4606X-101-103LF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 3159 |
|
$0.0560 / $0.0660 | Buy Now |
|
DISTI #
4606X-1-103LF-ND
|
DigiKey | RES ARRAY 5 RES 10K OHM 6SIP Min Qty: 1 Lead time: 15 Weeks Container: Bulk |
13843 In Stock |
|
$0.0622 / $0.2600 | Buy Now |
|
DISTI #
4606X-101-103LF
|
Avnet Americas | Fixed Network Resistor, 10 kohm, Bussed, 5 Resistors, SIP, PC Pin, ? 2% - Bulk (Alt: 4606X-101-103LF) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 15 Weeks, 0 Days Container: Bulk | 2653 |
|
$0.0576 / $0.0647 | Buy Now |
|
DISTI #
62J2820
|
Avnet Americas | Fixed Network Resistor, 10 kohm, Bussed, 5 Resistors, SIP, PC Pin, ? 2% - Bulk (Alt: 62J2820) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 16 Weeks, 3 Days Container: Bulk | 3149 Partner Stock |
|
$0.0810 / $0.3640 | Buy Now |
|
DISTI #
652-4606X-1LF-10K
|
Mouser Electronics | Resistor Networks & Arrays 6pins 10Kohms Bussed RoHS: Compliant | 43352 |
|
$0.0510 / $0.2600 | Buy Now |
|
DISTI #
V79:2366_30428180
|
Arrow Electronics | Res Thick Film NET 10K Ohm 2% 0.75W(3/4W) ±100ppm/°C BUS Conformal Coated 6-Pin SIP Pin Thru-Hole Bulk Min Qty: 1464 Package Multiple: 1 Date Code: 2210 | Americas - 21367 |
|
$0.0460 / $0.0683 | Buy Now |
|
DISTI #
E02:0323_00006456
|
Arrow Electronics | Res Thick Film NET 10K Ohm 2% 0.75W(3/4W) ±100ppm/°C BUS Conformal Coated 6-Pin SIP Pin Thru-Hole Bulk Min Qty: 1876 Package Multiple: 1 Lead time: 17 Weeks Date Code: 2425 | Europe - 20602 |
|
$0.0617 / $0.0680 | Buy Now |
|
DISTI #
V36:1790_06241747
|
Arrow Electronics | Res Thick Film NET 10K Ohm 2% 0.75W(3/4W) ±100ppm/°C BUS Conformal Coated 6-Pin SIP Pin Thru-Hole Bulk Min Qty: 1488 Package Multiple: 1 Lead time: 15 Weeks Date Code: 2212 | Americas - 5926 |
|
$0.0579 / $0.0672 | Buy Now |
|
DISTI #
V99:2348_06241747
|
Arrow Electronics | Res Thick Film NET 10K Ohm 2% 0.75W(3/4W) ±100ppm/°C BUS Conformal Coated 6-Pin SIP Pin Thru-Hole Bulk Min Qty: 1658 Package Multiple: 1 Lead time: 15 Weeks Date Code: 2214 | Americas - 3085 |
|
$0.0603 | Buy Now |
|
DISTI #
70155420
|
RS | Resistor, 10 Kilohms, 0.75 W, 2 %, 100 V (Max.), 100 ppm/ DegC Min Qty: 2000 Package Multiple: 1 Lead time: 17 Weeks, 0 Days Container: Bulk | 0 |
|
$0.1790 | RFQ |
Part Details for 4606X-101-103LF
4606X-101-103LF CAD Models
4606X-101-103LF Part Data Attributes
|
|
4606X-101-103LF
Bourns Inc
Buy Now
Datasheet
|
Compare Parts:
4606X-101-103LF
Bourns Inc
Array/Network Resistor, Bussed, Metal Glaze/thick Film, 0.75W, 10000ohm, 100V, 2% +/-Tol, 100ppm/Cel, Through Hole Mount, 6010, SIP, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | BOURNS INC | |
| Package Description | SIP, ROHS COMPLIANT | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.21.00.50 | |
| Factory Lead Time | 15 Weeks | |
| Samacsys Manufacturer | Bourns | |
| Construction | Epoxy Resin | |
| Element Power Dissipation | 0.2 W | |
| First Element Resistance | 10000 Ω | |
| JESD-609 Code | e1 | |
| Lead Length | 3.3 mm | |
| Lead Spacing | 2.54 mm | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Network Type | BUSSED | |
| Number of Elements | 5 | |
| Number of Functions | 1 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 8.89 mm | |
| Package Length | 15.19 mm | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SIP | |
| Package Width | 2.49 mm | |
| Packing Method | BULK | |
| Rated Power Dissipation (P) | 0.75 W | |
| Rated Temperature | 70 °C | |
| Resistance | 10000 Ω | |
| Resistor Type | ARRAY/NETWORK RESISTOR | |
| Size Code | 6010 | |
| Surface Mount | NO | |
| Technology | METAL GLAZE/THICK FILM | |
| Temperature Coefficient | 100 ppm/°C | |
| Temperature Coefficient Tracking | 50 ppm/°C | |
| Terminal Finish | Tin/Silver/Copper (Sn/Ag/Cu) | |
| Terminal Shape | FLAT | |
| Tolerance | 2% | |
| Working Voltage | 100 V |
Alternate Parts for 4606X-101-103LF
This table gives cross-reference parts and alternative options found for 4606X-101-103LF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 4606X-101-103LF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 4306R-101-103LF | Bourns Inc | $0.9301 | Array/Network Resistor, Bussed, Metal Glaze/thick Film, 0.75W, 10000ohm, 100V, 2% +/-Tol, 100ppm/Cel, Through Hole Mount, 5808, SIP-6, ROHS COMPLIANT | 4606X-101-103LF vs 4306R-101-103LF |
| 4306R-101-103 | Bourns Inc | Check for Price | Array/Network Resistor, Bussed, Metal Glaze/thick Film, 0.75W, 10000ohm, 100V, 2% +/-Tol, 100ppm/Cel, Through Hole Mount, 5808, SIP-6 | 4606X-101-103LF vs 4306R-101-103 |
4606X-101-103LF Frequently Asked Questions (FAQ)
-
The recommended soldering temperature is 260°C (500°F) with a maximum soldering time of 3 seconds. It's essential to follow the recommended soldering profile to prevent damage to the component.
-
Yes, the 4606X-101-103LF is compatible with lead-free soldering processes. Bourns Inc ensures that their products comply with RoHS and WEEE directives, making them suitable for lead-free soldering applications.
-
The 4606X-101-103LF has an operating temperature range of -40°C to 125°C (-40°F to 257°F). It's essential to ensure the component operates within this range to maintain its performance and reliability.
-
Yes, the 4606X-101-103LF is designed to withstand high-vibration and high-shock environments. However, it's crucial to follow proper mounting and installation procedures to ensure the component's reliability in such applications.
-
Yes, the 4606X-101-103LF is suitable for use in high-reliability and safety-critical applications. Bourns Inc ensures that their products meet the required standards and regulations for such applications, including AEC-Q200 and IATF 16949.
