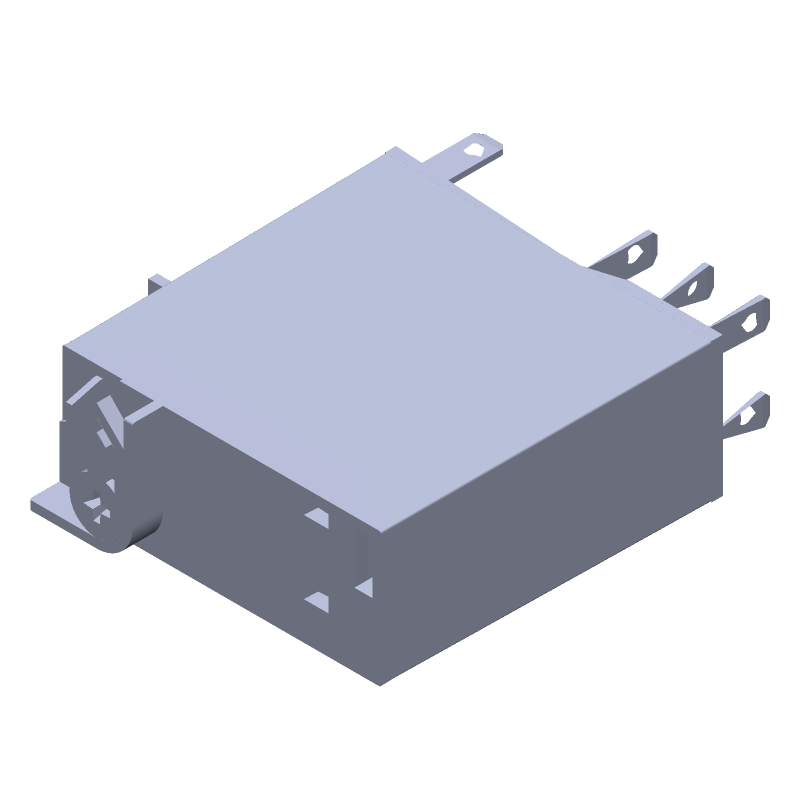

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 46.52.9.024.0040 by FINDER SpA
Results Overview of 46.52.9.024.0040 by FINDER SpA
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
46.52.9.024.0040 Information
46.52.9.024.0040 by FINDER SpA is an Other Relay.
Other Relays are under the broader part category of Relays.
A relay is an electromechanical switch that uses an electrical signal to open or close circuits, protecting systems from overcurrents or voltage surges. They are used in a variety of applications, including lighting control, telecommunication, automotive systems, and power protection. Read more about Relays on our Relays part category page.
Price & Stock for 46.52.9.024.0040
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
08X7136
|
Newark | Relay, Dpdt, 250Vac, 8A, Contact Configuration:Dpdt, Coil Voltage:24Vdc, Contact Current:8A, Product Range:46 Series, Relay Mounting:Socket, Coil Type:Dc, Contact Voltage Vac:250Vac, Relay Terminals:Quick Connect, Coil Current:20Ma Rohs Compliant: Yes |Finder 46.52.9.024.0040 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 196 |
|
$8.3800 / $9.5200 | Buy Now |
|
DISTI #
2066-46.52.9.024.0040-ND
|
DigiKey | RELAY GEN PURPOSE DPDT 8A 24V Min Qty: 1 Lead time: 6 Weeks Container: Bulk |
330 In Stock |
|
$6.8318 / $9.6700 | Buy Now |
|
DISTI #
87272413
|
Verical | Electromechanical Relay 24VDC 1.2KOhm DPDT(12.4x39.3)mm Socket Miniature Relay RoHS: Compliant Min Qty: 8 Package Multiple: 1 | Americas - 284 |
|
$7.3500 / $9.6740 | Buy Now |
|
|
Quest Components | 8 |
|
$12.0000 / $13.5000 | Buy Now | |
|
DISTI #
46.52.9.024.004
|
TME | Relay: electromagnetic, DPDT, Ucoil: 24VDC, Icontacts max: 15A Min Qty: 1 | 847 |
|
$5.4300 / $7.1600 | Buy Now |
Part Details for 46.52.9.024.0040
46.52.9.024.0040 CAD Models
46.52.9.024.0040 Part Data Attributes
|
|
46.52.9.024.0040
FINDER SpA
Buy Now
Datasheet
|
Compare Parts:
46.52.9.024.0040
FINDER SpA
Electromechanical Relay, DPDT, 26.4VDC (Coil), 500mW (Coil), Random, AC/DC Output
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | FINDER SPA | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | FINDER | |
| Body Breadth | 12.4 mm | |
| Body Height | 32.8 mm | |
| Body Length or Diameter | 29 mm | |
| Coil Operate Voltage(DC) | 17.5 V | |
| Coil Power | 500 mW | |
| Coil Resistance | 1200 Ω | |
| Coil Voltage(DC)-Max | 26.4 V | |
| Coil Voltage-Nom | 24 V | |
| Coil/Input Supply Type | DC | |
| Contact (AC) Max Power Rating R Load | 2000VA@440VAC | |
| Contact (AC) Max Rating R Load | 15A@440VAC | |
| Contact Current(AC)-Max | 15 A | |
| Contact Voltage(AC)-Max | 440 V | |
| Contact/Output Supply Type | AC/DC | |
| Electrical Life | 100000 Cycle(s) | |
| End Contact Material | Silver Nickel | |
| Input Switching Control Type | Random | |
| Number of Terminals | 8 | |
| Operate Time | 10 ms | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | -40 °C | |
| Physical Dimension | 29mm x 12.4mm x 32.8mm | |
| Reference Standard | CCC; CE; CSA; IMQ; PCT; RINA; UL; VDE | |
| Relay Form | 2 FORM C | |
| Relay Function | DPDT | |
| Release Time | 3 ms | |
| Terminal Length | 0.006499872999746001 inch | |
| Termination Type | QUICK CONNECT |
46.52.9.024.0040 Frequently Asked Questions (FAQ)
-
The maximum switching frequency of the relay is 20 operations per minute.
-
The relay module is designed to operate in temperatures between -40°C and 85°C. However, it's recommended to derate the relay's performance at high temperatures above 60°C.
-
The recommended wire size for the coil connections is 0.5 mm² to 2.5 mm² (AWG 20 to AWG 14).
-
The relay module is designed for general-purpose use and is not intended for use in safety-critical applications. For safety-critical applications, it's recommended to use relays with specific safety certifications (e.g., IEC 61508).
-
The relay module is designed to operate in environments with relative humidity up to 95%. However, it's recommended to take precautions to prevent moisture ingress, such as using a conformal coating or sealing the relay module in a protective enclosure.
